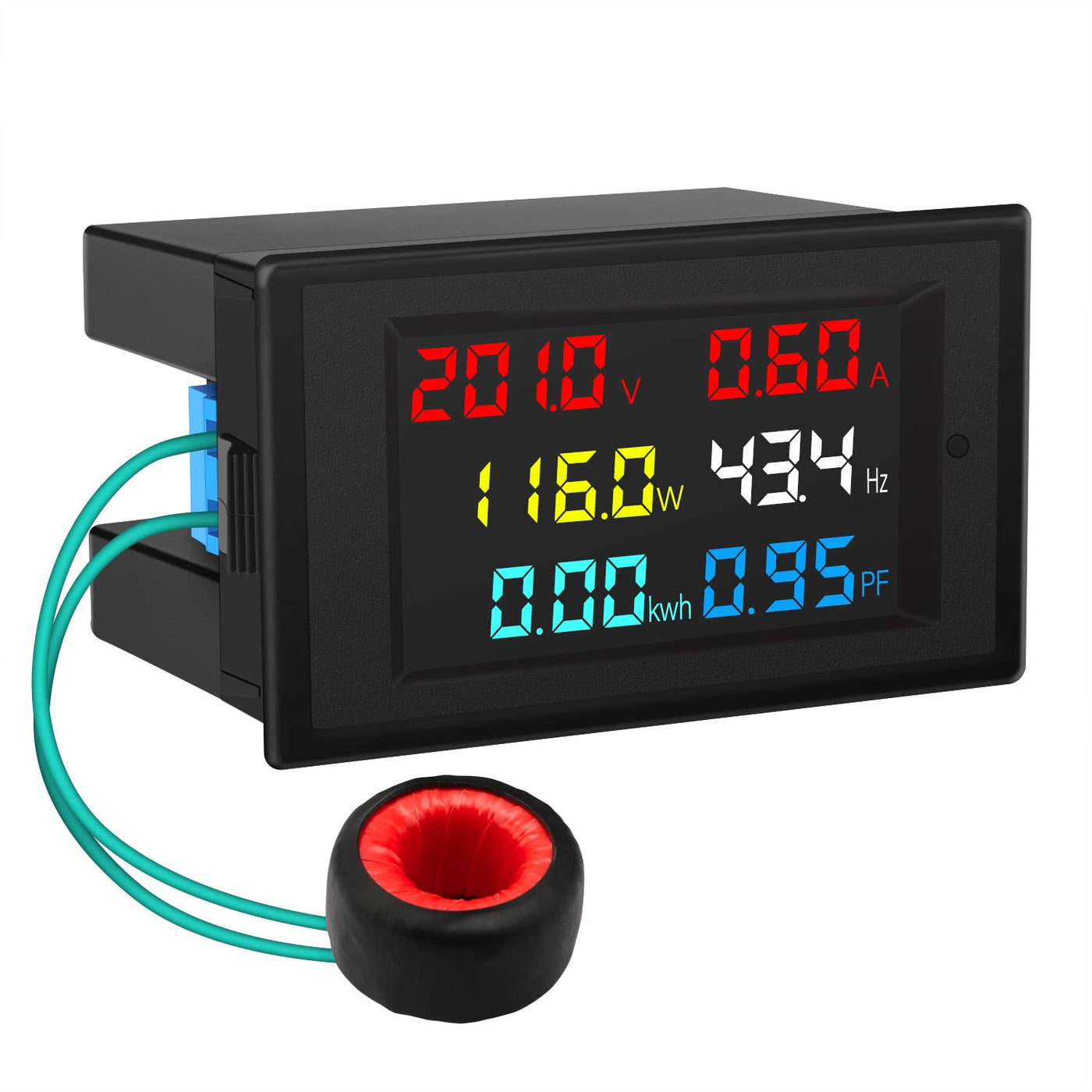

DROK AC Meter, AC 80-300V 100A Voltage Current Power Factor Frequency Electric Energy Monitor Ammeter Voltmeter Multimeter Tester 110V 220V Digital Color LCD Volt Amp Watt Detector Reader Panel
No reviews
$26.05
Regular price
$37.21
-29%
Couldn't load pickup availability
Vendor: DROK
Type: Electrical
Sku: WBHDWB07YC1XHKQ
Available: Available
Shipping information
- No EU import duties. - Ships within 3-5 business days. (USA) - Ships with 8-12 business days. (International)
DROK AC Meter, AC 80-300V 100A Voltage Current Power Factor Frequency Electric Energy Monitor Ammeter Voltmeter Multimeter Tester 110V 220V Digital Color LCD Volt Amp Watt Detector Reader Panel
Specification: Measuring parameter: voltage, current, active power, battery electric energy, frequency and power factor.

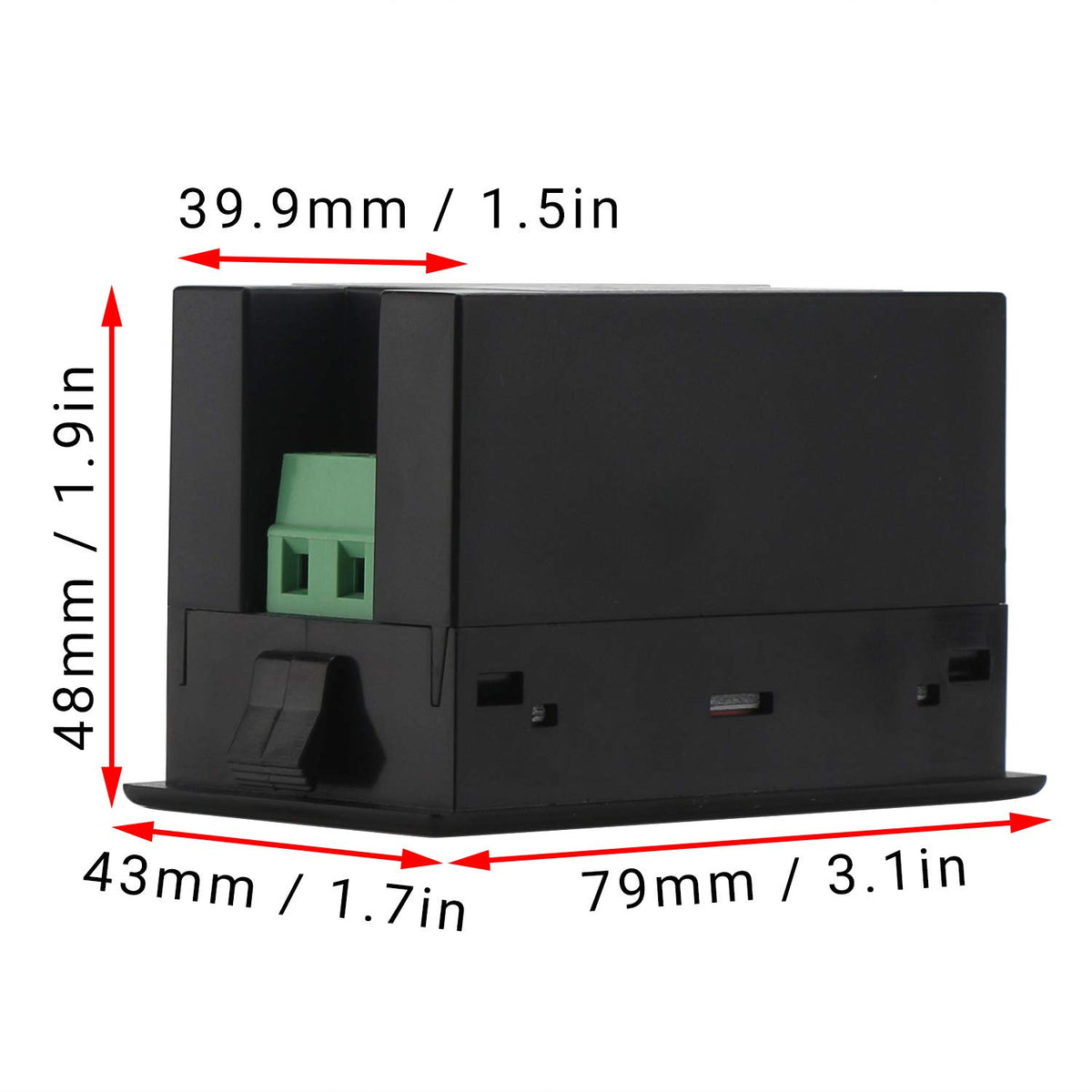

Voltage Measuring Range: AC 80.0-300.0V Current Measuring Range: 0-99.99A Resolution: 0.01A, display 100.0A when over 100A. Active Power Measuring Range: 0-30000W Resolution: 0.1W (0-9999.9W); 1W (10000W-30000W) Electric Energy Measuring Range: 0-99999kwh Resolution: 0.01kwh (0-999.99kwh); 0.1kwh (1000.0-9999.9kwh); 1kwh (10000.0-99999kwh) Frequency Range: 45.0Hz-65.0Hz Power Factor Range: 0.00-1.00PF Measuring Accuracy: 1% ± 2 digits Measuring Speed: 2 times/second Outside Size: 79*43*48mm/3.1*1.7*1.9in Installation Size: 76*39mm/2.9*1.5in Screen Size: 52*26mm/2*1in Current Transformer (CT) Hole Diameter: 15.5mm/0.6in
Data Storage & Reset Function: Storage: Auto save the accumulated electric energy value when power off. Reset: Long press the button for 5s, the accumulative electricity will be reset to 0.

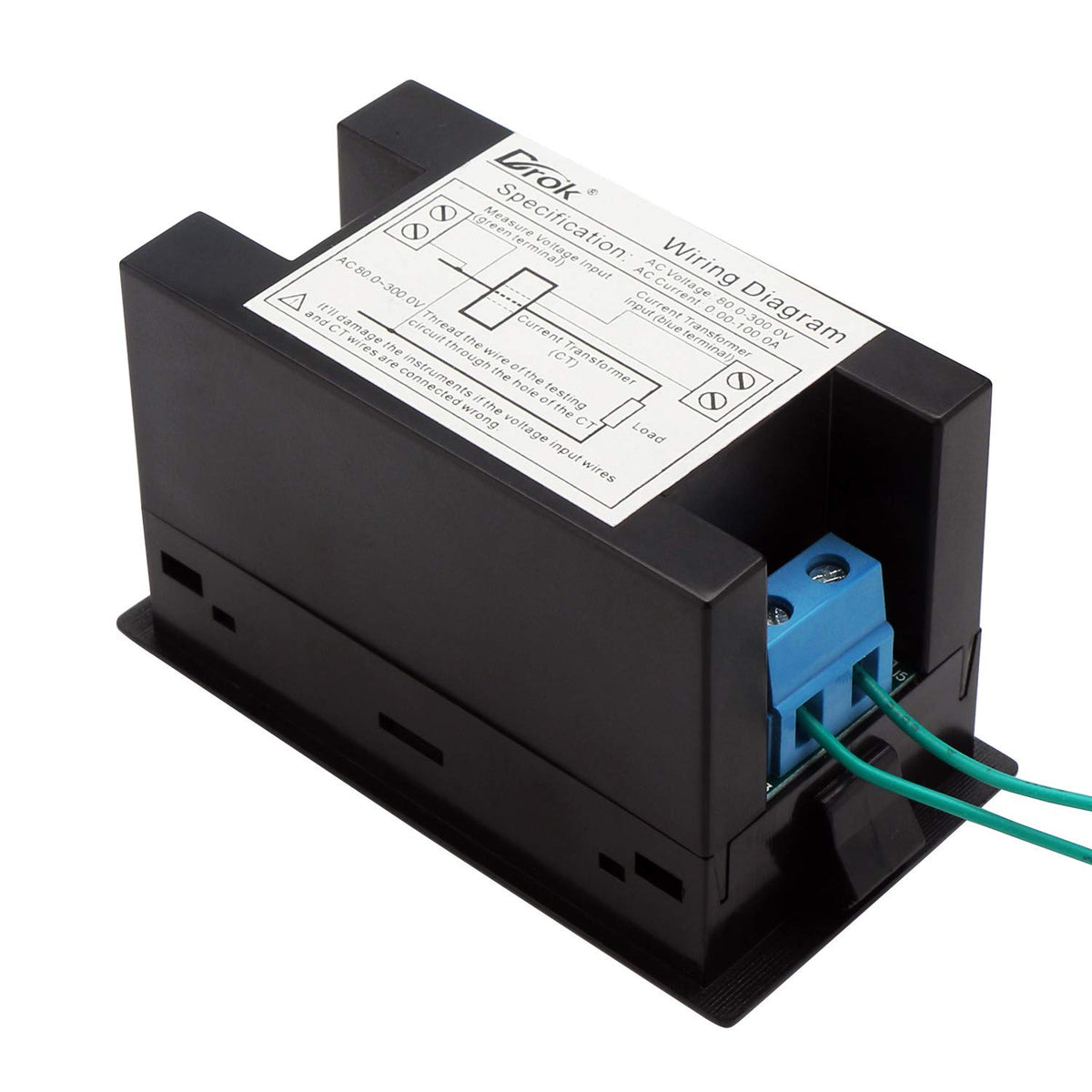

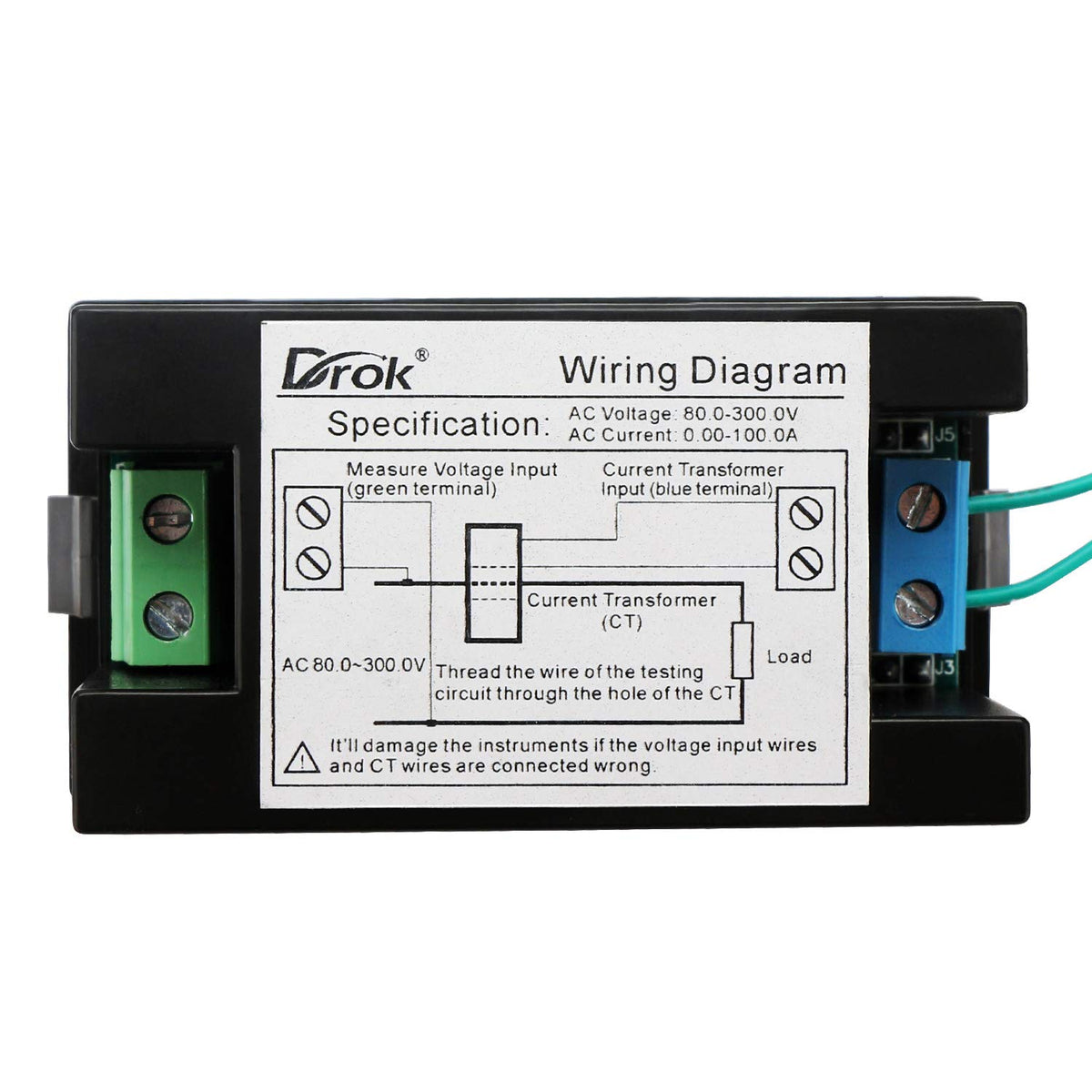

Wiring Connection: 1. Connect the green wire of the CT to the blue terminal of the meter. 2. Pass the wire of the circuit to be measured through the CT hole, and then connect it to the green terminal. 3. After power on, the screen will display the measured data.
Note: 1. The meter can only work on AC 50-60Hz pure mains supply. Do not use it to measure square wave, inverter output or corrected sine waves circuits, or it will be damaged. 2. Do not wrongly connect the wire of voltage input(green terminal) and CT(blue terminal), or it will be damaged. 3. Do not squeeze the screen when installing, or the screen will display gibberish or broken codes.
