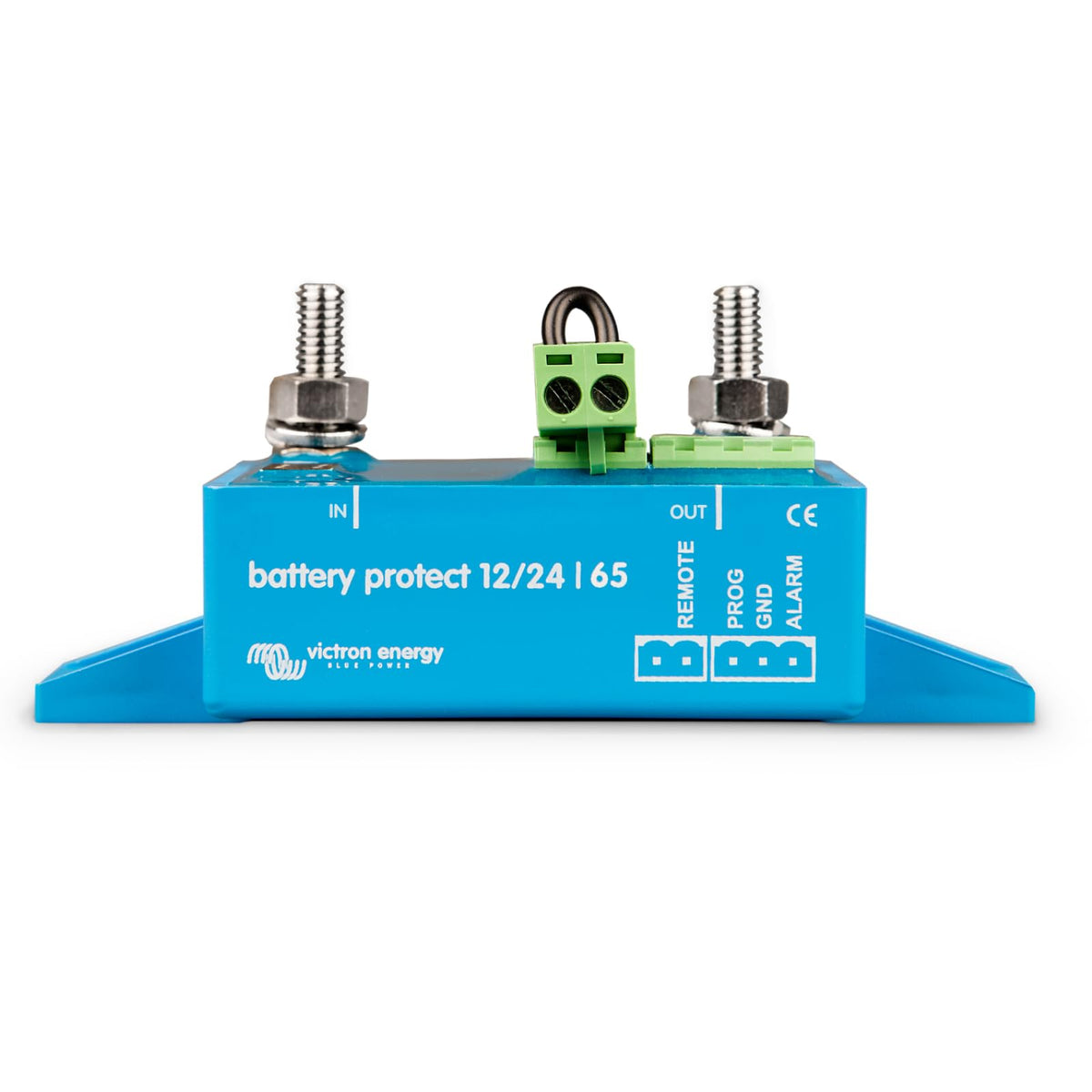

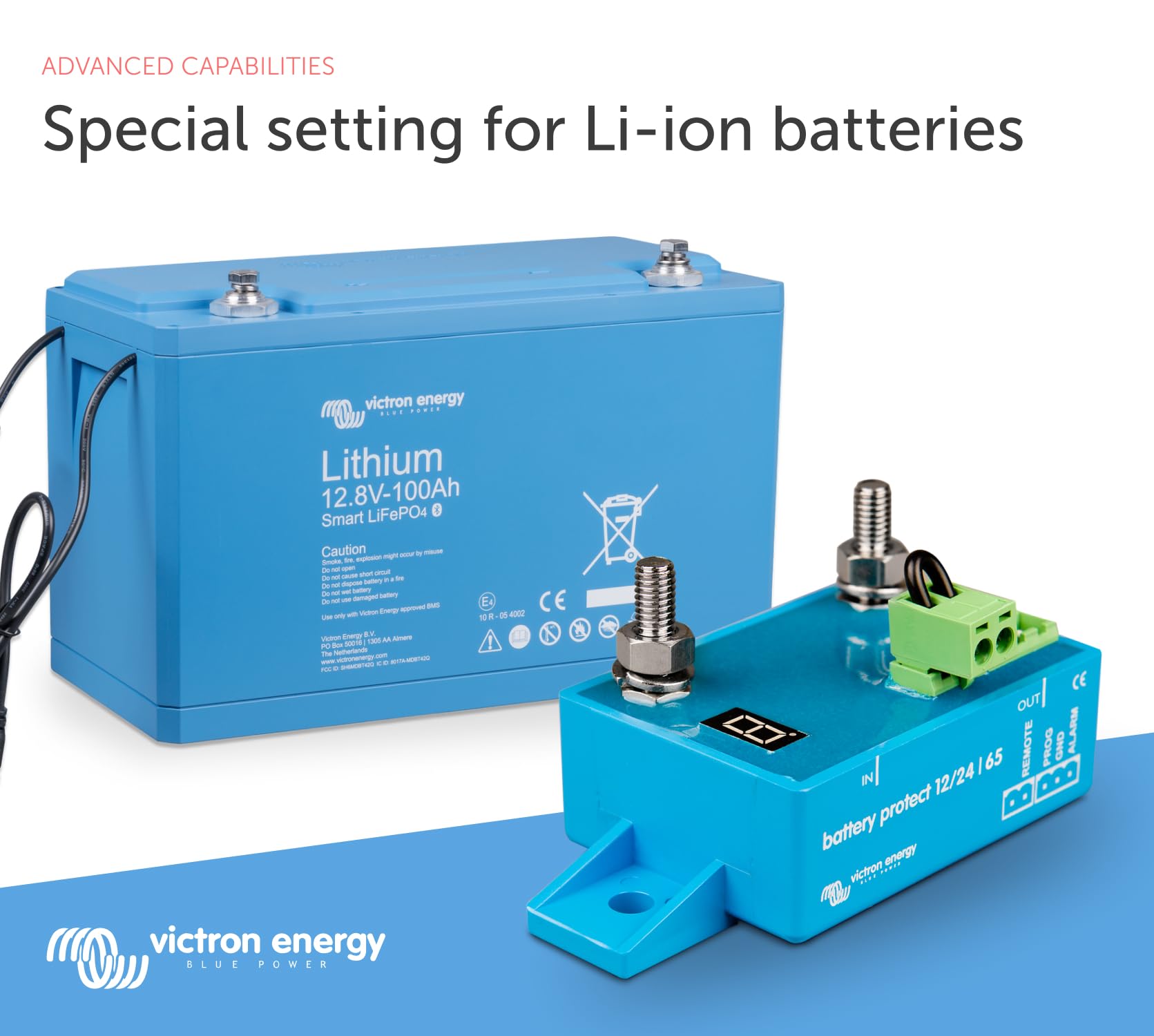

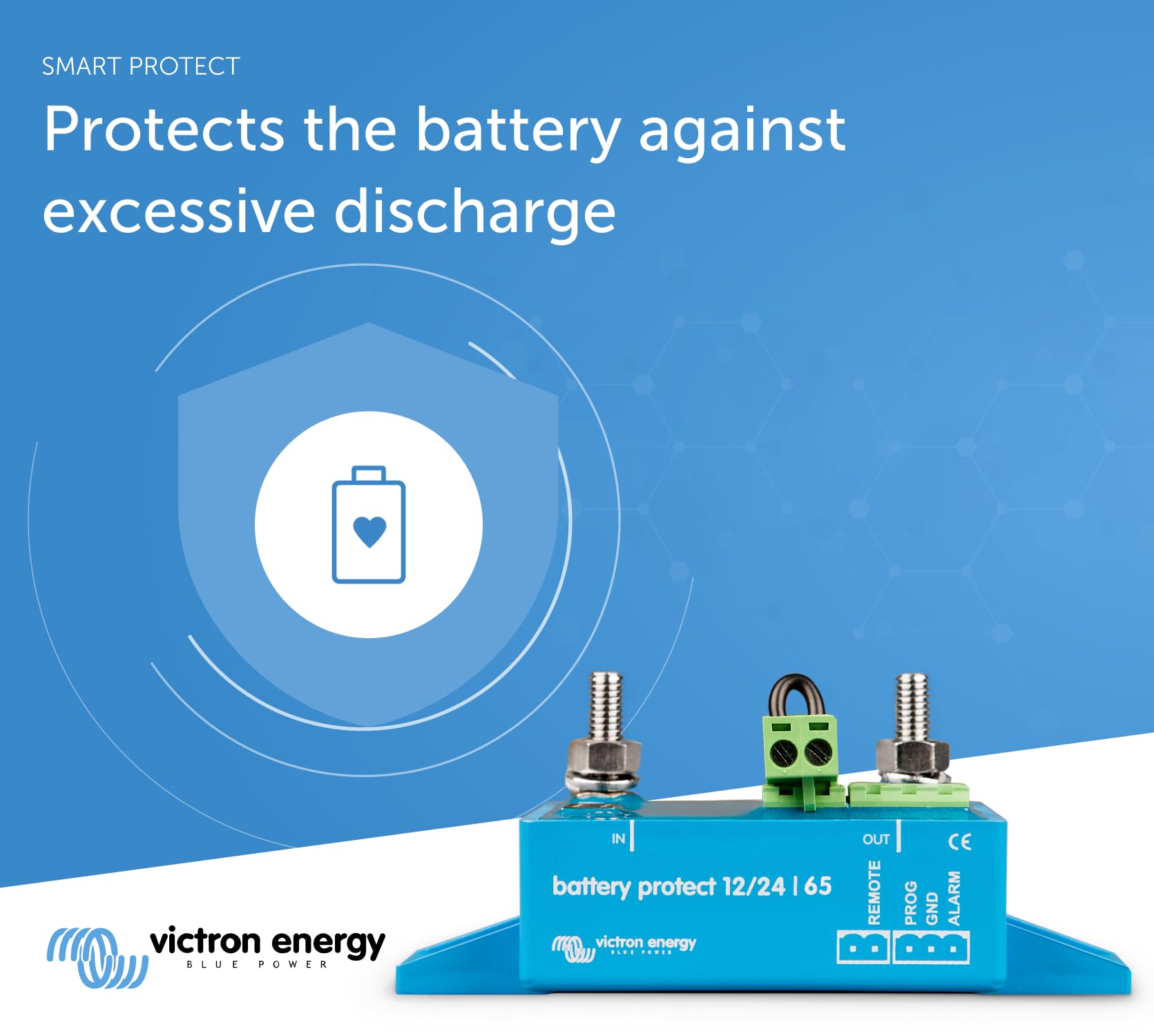

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. 12/24V auto ranging The BatteryProtect automatically detects system voltage Programming made easy The BatteryProtect can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen. A special setting for Li-ion batteries In this mode the Battery Protect can be controlled by the VE.Bus BMS. Note: the Battery Protect can also be used as a charge interrupter in between a battery charger and a Li-ion battery. See connection diagram in the manual. Ultra low current consumption This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information. Over voltage protection To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 16V respectively 32V. Ignition proof No relays but MOSFET switches, and therefore no sparks. Delayed alarm output The alarm output is activated if the battery voltage drops below the preset disconnect level during more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. Delayed load disconnect and delayed reconnect The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the maximum load current for the Victron Energy BatteryProtect 12/24-Volt?A: The Victron Energy BatteryProtect 12/24-Volt can handle a maximum continuous load current of 65 amps, with a peak current of 250 amps for up to 30 seconds.
Q: How does the BatteryProtect prevent battery damage?A: The BatteryProtect disconnects non-essential loads from the battery before it is completely discharged, protecting the battery from damage and ensuring sufficient power remains to start the engine.
Q: Is the Victron Energy BatteryProtect compatible with Li-ion batteries?A: Yes, the BatteryProtect has a special setting for Li-ion batteries and can be controlled by the VE.Bus BMS, making it suitable for use with these battery types.
Q: What features help to monitor and manage battery voltage?A: The BatteryProtect features a seven-segment display that indicates the chosen voltage settings, along with delayed alarm outputs and reconnection features, enhancing monitoring and management of battery voltage.
Q: Can I install the BatteryProtect myself, or do I need a professional?A: While it is possible to install the BatteryProtect yourself, it is highly recommended to consult a licensed professional and adhere to all applicable electrical codes to ensure safe and correct installation.
