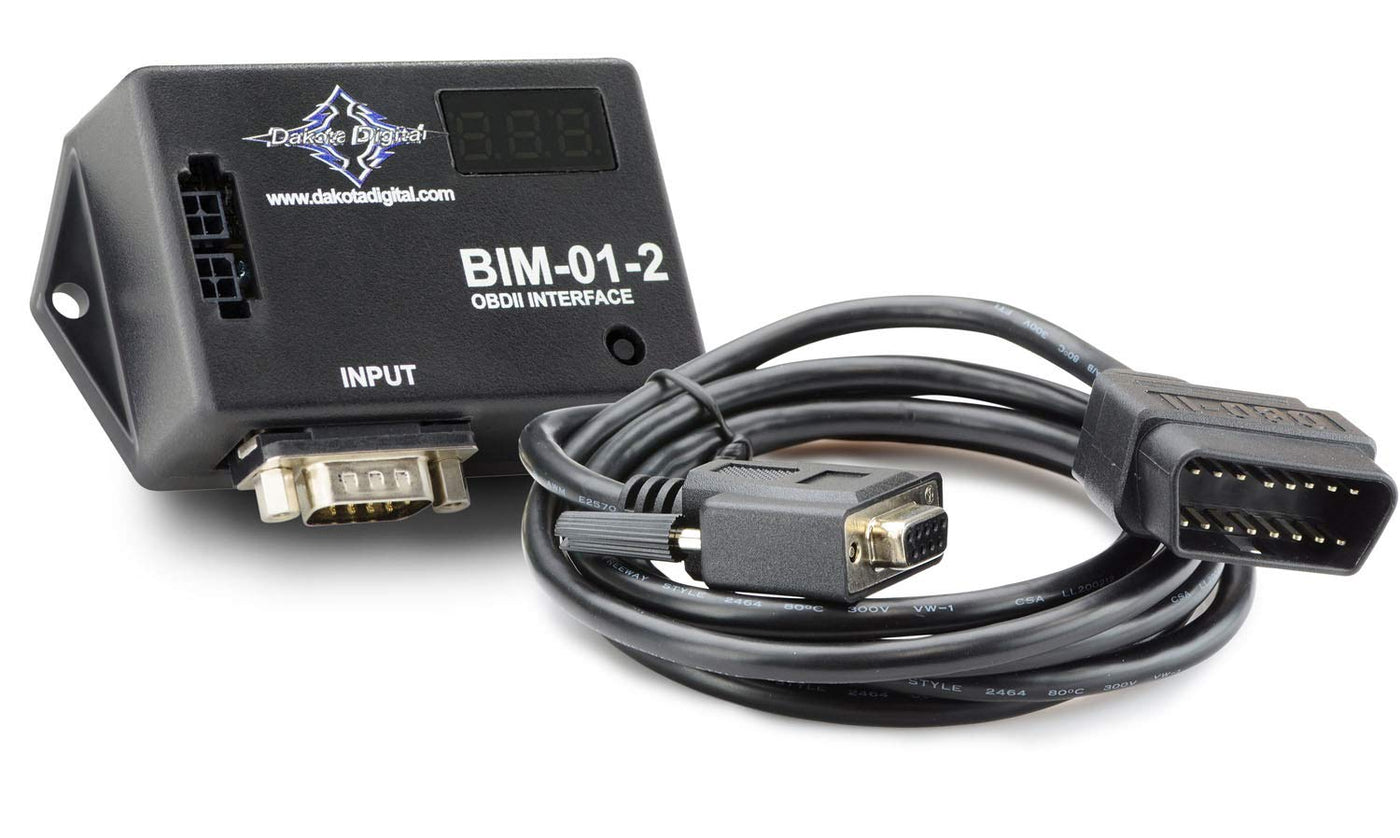

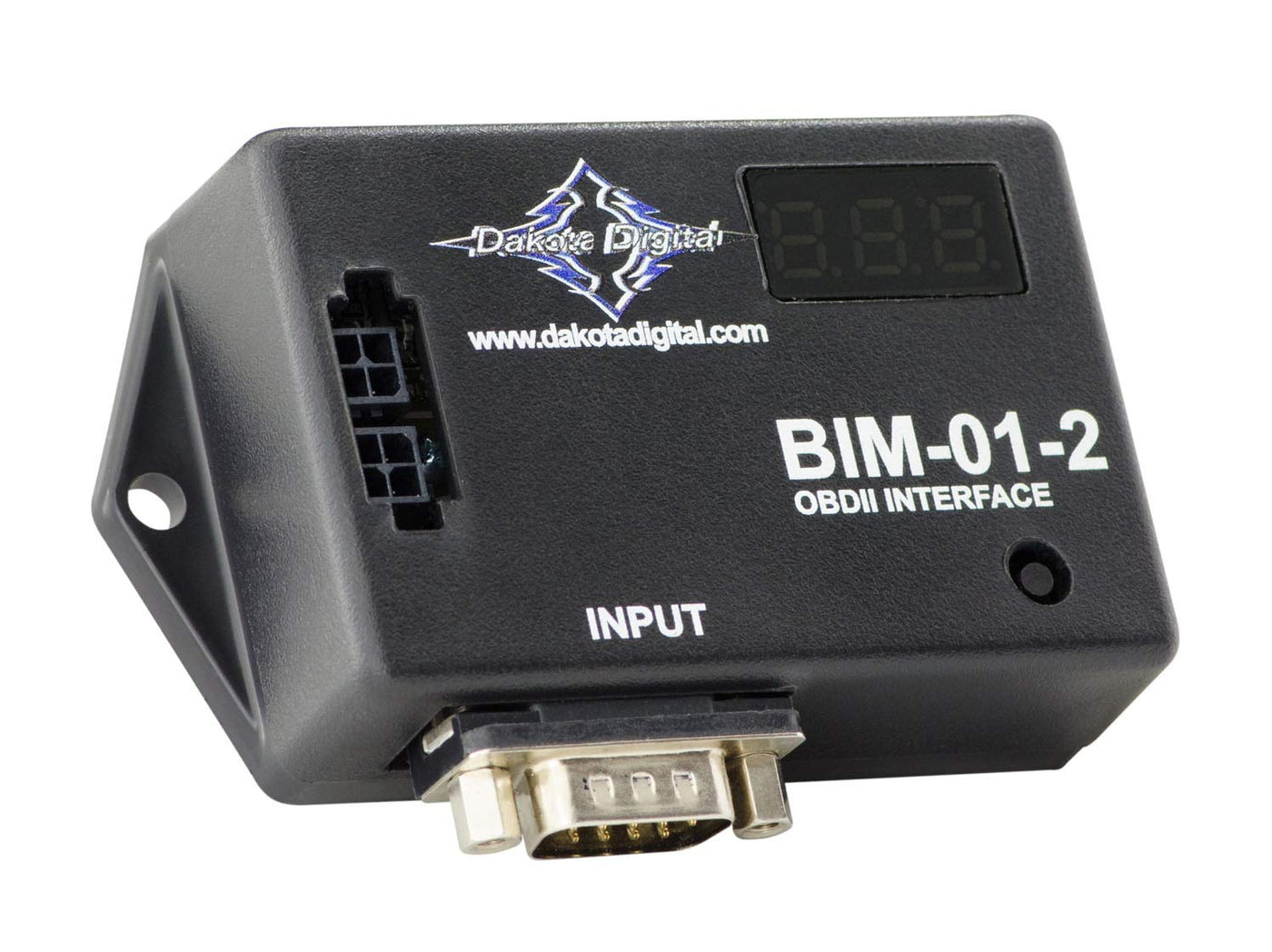

The Bim-01-2 Obd-Ii (J1850/Can) Interface Allows You To Plug Directly Into The Engine Diagnostic Port, Extracting Engine And Transmission Data From The Vehicle'S Computer (Ecm). The Bim-01-2 Will Collect And Output The Following Information To Dakota Digital Instrument Systems *: Always Available: Speed Tachometer Engine Temp Check Engine Indicator Vehicle Specific: Intake Air Temp Transmission Temp Ambient Air Temp Gear Position Oil Pressure Please Note: Due To The Various Factory And Modified Ecm'S, Additional Data Including (Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, And Gear Position) May Be Available, But Will Vary From Application To Application. We Cannot Guarantee The Presence Or Accuracy Of The Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, Or Gear Position Displays Since This Is A Function Of The Ecm And Matching Oem Functional Sensors. This Product Can Provide A +/- 25 Percent Calibration To Compensate For Tire Size Or Gear Changes Which Have Affected The Speedometer Output. *The Bim-01-2 Is Designed To Decode The Information Provided By The Ecm Through Obd-Ii And Supply This Information To The Vfd3 Rev. G And Vhx Control Box Instrument Systems Only. Earlier Control Boxes (With An Aluminum Case) Are Not Compatible With The Bim Family Of Expansion Modules. **The Bim-01-2 Is Designed For J1850 And Can Obd Protocols Only. Compatible With Obdii Protocols Sae J1850 Vpw, Sae J1850 Pwm And Iso 15765 Can 500K 11 Bit Identifiers That Follow The Sae J1979 Pid Protocol.****Gm Connect & Cruise Packages Do Not Transmit The Gear Position Data, Preventing The Bim-01-2 From Acquiring This Information.
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What vehicles are compatible with the Dakota Digital BIM-01-2 OBD-II Interface?A: The Dakota Digital BIM-01-2 OBD-II Interface is compatible with vehicles that utilize OBD-II protocols, including SAE J1850 VPW, SAE J1850 PWM, and ISO 15765 CAN 500k 11 bit identifiers. However, compatibility may vary depending on the vehicle's ECM and specific configurations.
Q: What data can I expect to receive from the BIM-01-2 module?A: The BIM-01-2 module extracts and provides various engine and transmission data, including speed, tachometer readings, engine temperature, check engine indicator, intake air temperature, transmission temperature, ambient air temperature, gear position, and oil pressure, depending on vehicle compatibility.
Q: How does the BIM-01-2 improve my vehicle's performance monitoring?A: The BIM-01-2 allows you to connect directly to your vehicle's engine diagnostic port, providing real-time data from the ECM. This enables you to monitor critical parameters that can help optimize your vehicle's performance, such as speed calibration and engine health indicators.
Q: Can the BIM-01-2 module work with older Dakota Digital control boxes?A: No, the BIM-01-2 is designed to work exclusively with Dakota Digital systems that feature a black plastic control module, such as the VHX and VFD3. Earlier control boxes with aluminum cases are not compatible with the BIM family of Expansion Modules.
Q: Is installation of the BIM-01-2 difficult for a DIYer?A: The installation of the BIM-01-2 is relatively straightforward for those familiar with automotive electronics. It plugs directly into the engine diagnostic port, but it's recommended to consult the vehicle's manual and the Dakota Digital installation guide for specific steps and to ensure proper connectivity.
