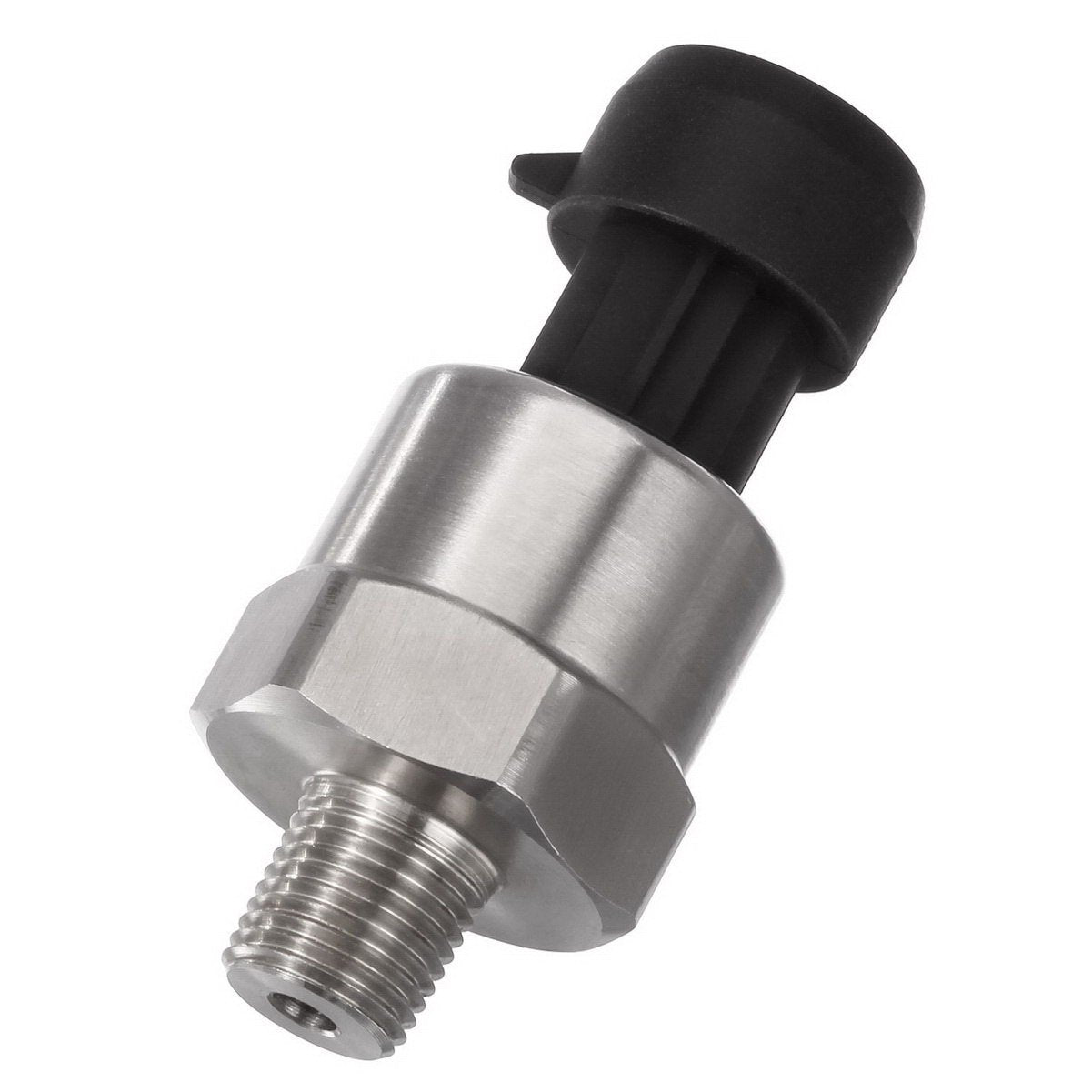

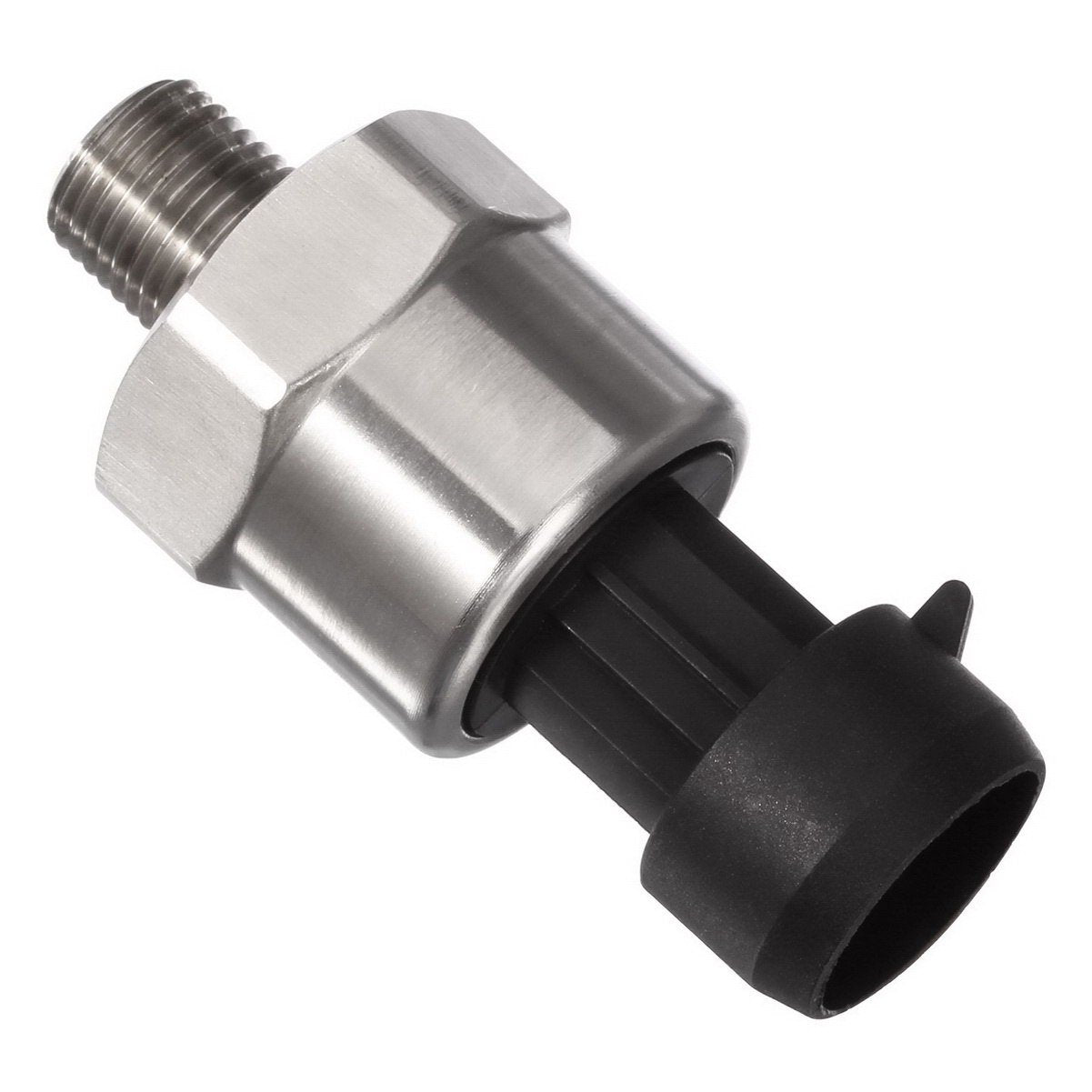

AUTEX 200 Psi Pressure Transducer Sender Sensor 1/8 -27 NPT Thread Stainless Steel Fuel Pressure Sensors Compatible with Oil F

Frequently Asked Questions

• Q: What is the pressure range of the AUTEX pressure transducer? A: The pressure range is zero to two hundred psi. This allows it to measure various fluids like oil, fuel, water, and air.
• Q: What material is the AUTEX pressure transducer made of? A: It is made of stainless steel. This material enhances its durability and compatibility with various fluids.
• Q: What are the dimensions of the AUTEX pressure transducer? A: The dimensions are six point one inches in length, three point nine four inches in width, and zero point nine eight inches in height. These compact dimensions make it easy to install in tight spaces.

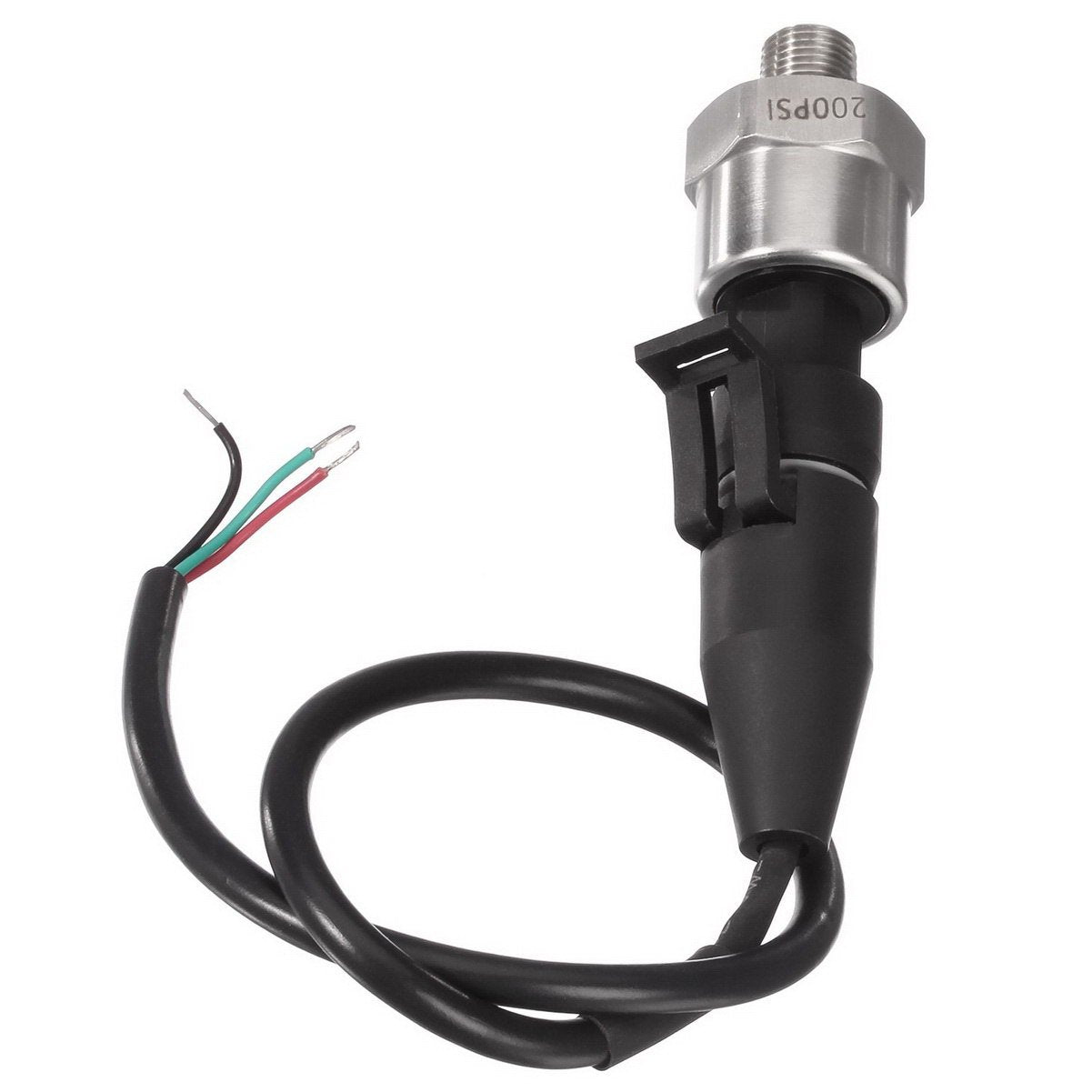

• Q: How do I install the AUTEX pressure transducer? A: To install, connect the wiring harness to the appropriate terminals: red for IN+, black for GND, and green for OUT. Ensure all connections are secure before powering on.
• Q: Can I use the AUTEX pressure transducer with different fluids? A: Yes, it is compatible with oil, fuel, air, and water. This versatility makes it suitable for various applications, including tanks and pressure monitoring.
• Q: What is the output voltage of the AUTEX pressure transducer? A: It has a linear voltage output ranging from zero point five volts to four point five volts. At zero psi, it outputs zero point five volts, and at two hundred psi, it outputs four point five volts.
• Q: How do I maintain the AUTEX pressure transducer? A: Keep the transducer clean and free from debris. Regularly check connections and ensure no fluids are leaking to maintain its performance.
• Q: Is the AUTEX pressure transducer explosion-proof? A: Yes, it has an explosion-proof class of ExiaTTCT6. This rating indicates it can safely operate in hazardous environments.
• Q: What is the maximum working temperature for the AUTEX pressure transducer? A: The maximum working temperature is one hundred twenty-five degrees Celsius. This wide range allows it to function effectively in extreme conditions.
• Q: What if my AUTEX pressure transducer arrives damaged? A: If it arrives damaged, contact customer support immediately for a replacement or refund. Ensure you have your order details ready to expedite the process.
• Q: How does the AUTEX pressure transducer handle shock resistance? A: It has a shock resistance rating of one hundred g. This makes it suitable for environments where vibration and impact are common.
• Q: Can the AUTEX pressure transducer be used in automotive applications? A: Yes, it is suitable for automotive applications. Its robust design and compatibility with various fluids make it ideal for monitoring pressure in vehicles.
• Q: What should I do if the output voltage is unstable? A: If the output voltage is unstable, check all wiring connections for secure attachments. A multimeter can be used to test voltage levels during operation.
• Q: Does the AUTEX pressure transducer come with a warranty? A: Yes, it typically comes with a manufacturer's warranty. Check the packaging or product documentation for specific warranty details.
• Q: What is the insulation resistance of the AUTEX pressure transducer? A: The insulation resistance is greater than one hundred megaohms at five hundred volts DC. This ensures safe operation and prevents electrical failures.
