What is the correct way to measure my wheel's center bore for hub centric rings?

To measure your wheel's center bore, you can check the box label for the Centre Bore (CB) data. If this information is not available, use a caliper to measure the diameter of the center hole directly.

Can I use a hub ring with a different outer diameter than my wheel's center bore?

No, it is crucial to match the hub ring's outer diameter with your wheel's center bore. For example, if your wheel's CB is 73.1mm, you must use a hub ring with an O.D. of 73.1mm.

What should I do if I can't push the hub ring onto the wheel hub?

If you're unable to install the hub ring, it may be due to rust, dirt, or rough edges on the hub ring or hub. Clean the surfaces and lightly sand them if necessary, then try again.

How do I ensure I am ordering the correct size of hub centric rings?

To order the correct hub centric rings, you should measure your vehicle's hub and the wheel's center bore accurately. Refer to the I.D. reference list provided in the product description for guidance.

What materials are these hub centric rings made of, and how do they benefit my vehicle?

These hub centric rings are made of aluminum alloy, which makes them corrosion-resistant, heat-resistant, and durable. They help eliminate vibrations caused by aftermarket alloy wheels that may not center correctly on your vehicle's hub.

Wheel Connect Hub Centric Rings,73.1 To 56.1, Aluminium Alloy Hubrings 56.1 To 73.1 Set Of 4, O.D:73.1-I.D:56.15 (56.1) Mm. A

Wheel Connect Hub Centric Rings,73.1 To 56.1, Aluminium Alloy Hubrings 56.1 To 73.1 Set Of 4, O.D:73.1-I.D:56.15 (56.1) Mm. A

$15.81
Regular price ~~$22.59~~

Wishlist

Vendor: Wheel Connect

Type: Hubcaps, Trim Rings & Hub Accessories

Sku: WBCARB085T38KXQ

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

⚠️ California Proposition 65 Warning :
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, visit www.P65Warnings.ca.gov.

Guarantee safe checkout

Wheel Connect Hub Centric Rings,73.1 To 56.1, Aluminium Alloy Hubrings 56.1 To 73.1 Set Of 4, O.D:73.1-I.D:56.15 (56.1) Mm. A

$15.81

Description

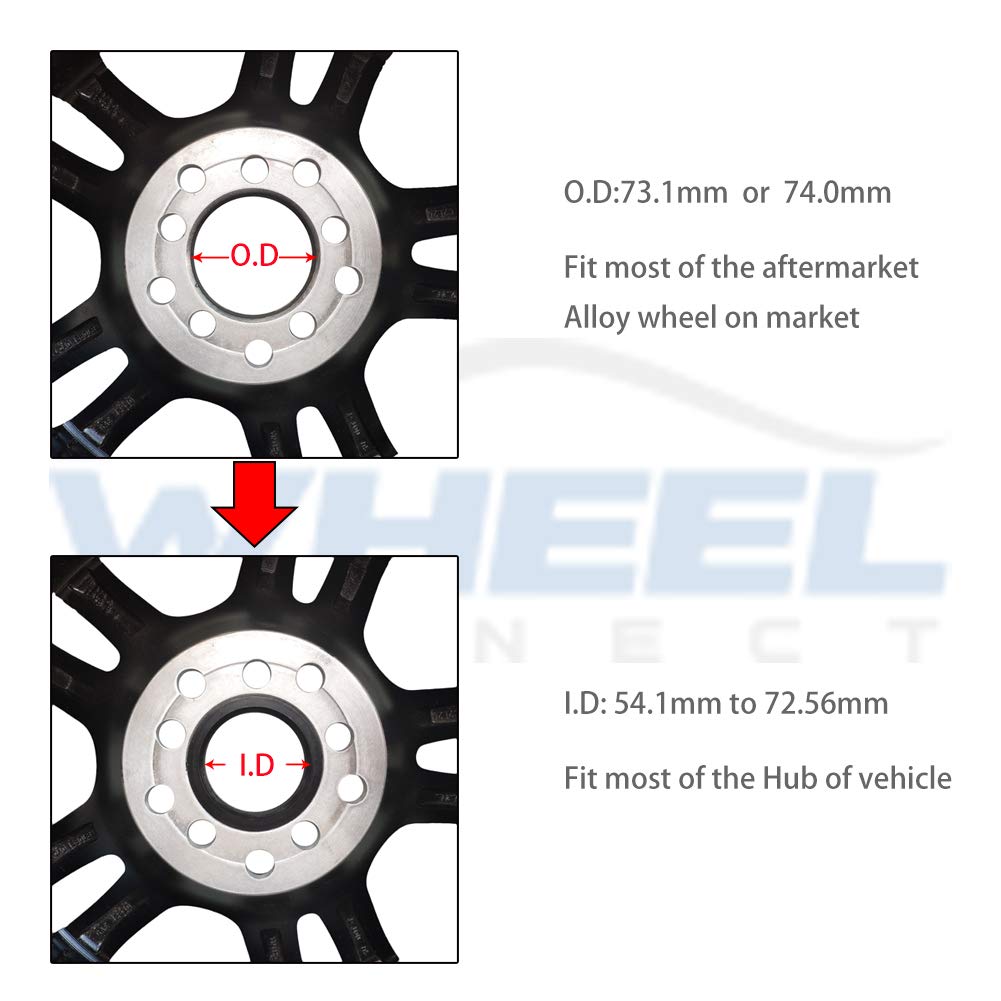

How to choose the right size:
O.D 73.1 or O.D. 74.0mm: Check the Centre Bore (CB) data of the wheel you have on hand. This can be found on the box label. If CB cannot be found on the box or back of the wheel, measure the center hole’s diameter using a caliper.
Inner Diameter (I.D.) should match the vehicle’s center hub. Different vehicle comes with different hub size. The vehicle center hub will be different depending on year, model, make, and brand.

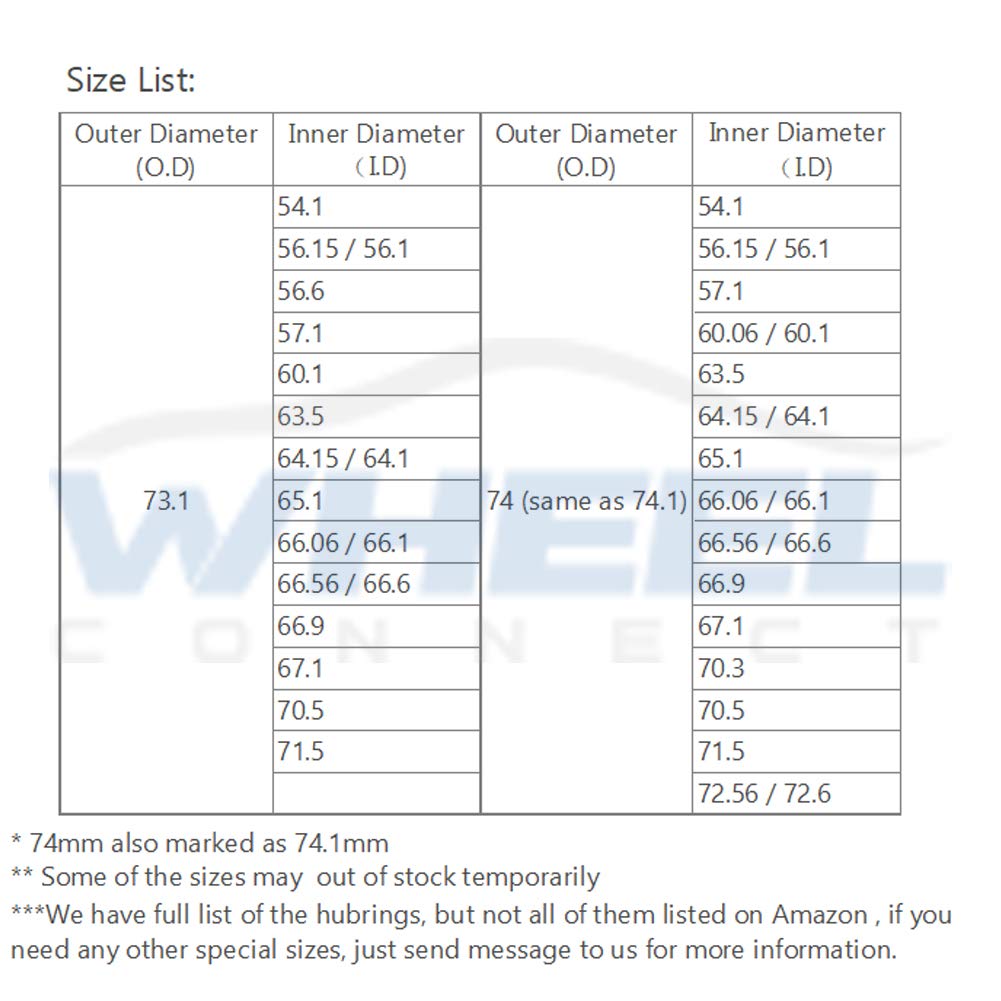

Here is an I.D reference list：
54.1
56.15=56.1
56.6
57.1
60.06=60.1
63.5
64.15=64.1
65.1
66.06=66.1
66.56=66.6
66.9
67.1
70.3
70.5
71.5
72.56=72.6
Not sure exactly what size hub-rings you need? Don't waste time and money guessing. Just send us a message with what wheels you have, what make, model, and year of vehicle you have, and we will be happy to recommend the correct hub-ring for you.

How to install:
Insert the Hub Centric Rings into the wheel center bore and then install it onto vehicle wheel hub.

Q&A
Q: My wheel’s CB is 73.1mm. Can I use a hub ring Outer Diameter at 74.1?
A: No. Must use the ones with O.D 73.1mm.

Q: My wheel’s CB is 74.1mm. Can I use a hub ring Outer Diameter at 73.1?
A: No. You can only use hub rings O.D 74.1 or sometimes marks as 74.

Q: What is the tolerance of these Diameter data?
A: Normally accept ±0.1mm. So:
56.15=56.1; 60.06 = 60.1; 64.15 = 64.1;
66.06=66.1; 66.56 = 66.6; 72.56 = 72.6; 74=74.1

Q：I chose the right size, but Why can’t I push hubring into wheel, or push it onto Hub?
A: Hub, hub ring, wheel are fit each other tightly, So they can’t fit in when there is rust or dirt on the Hub, or some rough edges of the hub ring or some paints over sprayed onto wheel center bore. So sand these slightly with a sand paper and try it again.
