What is UF-B wire used for?

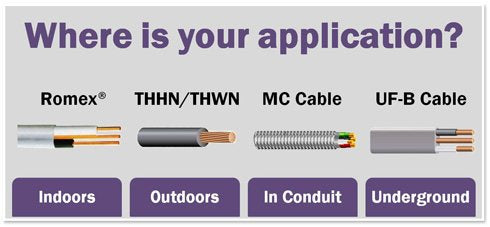

UF-B wire is designed for underground feeder and branch circuit wiring applications. It is suitable for use as a feeder from a building to outdoor lighting fixtures, pumps, outbuildings, and other equipment, making it ideal for both residential and commercial installations.

Can UF-B wire be directly buried?

Yes, UF-B wire can be directly buried in the ground or installed where it is exposed to sunlight. This makes it a versatile choice for outdoor applications.

What is the ampacity rating of 10/2 UF-B wire?

The 10/2 UF-B wire is rated for an allowable ampacity of 30 Amps, which means it can safely carry this amount of current under the specified conditions.

Is this wire suitable for wet locations?

Yes, the 10/2 UF-B wire, with its PVC insulation and nylon covering, is suitable for wet or corrosive locations, providing durability and safety in challenging environments.

What are the construction materials of 10/2 UF-B wire?

The 10/2 UF-B wire is constructed with annealed (soft) copper conductors, PVC insulation, and a gray PVC jacket, ensuring reliability and compliance with electrical standards.

10/2 Uf-B Wire, Underground Feeder And Direct Earth Burial Cable (50Ft Cut)

10/2 Uf-B Wire, Underground Feeder And Direct Earth Burial Cable (50Ft Cut)

$99.65
Regular price ~~$142.36~~

Wishlist

Vendor: Stock Wire

Type: Electrical

Sku: WBHDWB077XKFK68

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

10/2 Uf-B Wire, Underground Feeder And Direct Earth Burial Cable (50Ft Cut)

$99.65

Description

Applications:
UF-B is an underground feeder and branch circuit wiring cable. It can be used as an underground feeder from an existing building to outdoor lighting fixtures, pumps, outbuildings and other equipment. Its applications are outlined in Article 340 NEC 2008 and NEC 2011. UF-B is rated at 600 volts. Although it is rated at a conductor temperature of 90ºC dry / wet, its ampacity is limited to 60ºC according to the NEC 2008 AND NEC 2011. UF-B may be directly buried or installed where exposed to sunlight. When used as an NM cable it must comply with the requirements in NEC 2008 and NEC 2011 Article 334.

Standards:
ASTM - B3 and B-8
UL Standard 83
UL Standard 493
Federal Specification A-A-59544
National Electrical Code, NFPA 70, 2011 Edition
RoHS/REACH

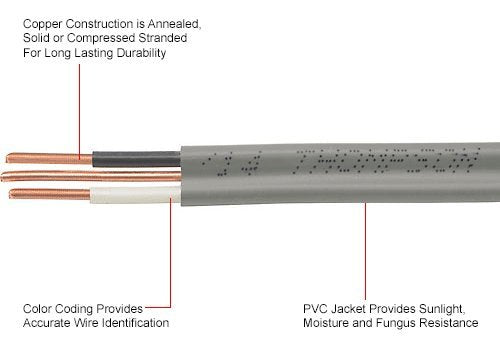

Construction:
Insulation: Polyvinyl Chloride (PVC) with a nylon covering. Color coded phase identification.
Jacket:Gray PVC.

Specifications:
Size:10 AWG
Number of Conductors:2
PVC Insulation Thickness:0.024 inches
Ground Wire Size:10 AWG
Nylon Thickness:0.004 inches
Nominal Cable Dimensions:0.518 inches x 0.215 inches
Weight per Foot: 0.178 lbs
Allowable Ampacity: 33 Amps

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is UF-B wire used for? A: UF-B wire is designed for underground feeder and branch circuit wiring applications. It is suitable for use as a feeder from a building to outdoor lighting fixtures, pumps, outbuildings, and other equipment, making it ideal for both residential and commercial installations.
Q: Can UF-B wire be directly buried? A: Yes, UF-B wire can be directly buried in the ground or installed where it is exposed to sunlight. This makes it a versatile choice for outdoor applications.
Q: What is the ampacity rating of 10/2 UF-B wire? A: The 10/2 UF-B wire is rated for an allowable ampacity of 30 Amps, which means it can safely carry this amount of current under the specified conditions.
Q: Is this wire suitable for wet locations? A: Yes, the 10/2 UF-B wire, with its PVC insulation and nylon covering, is suitable for wet or corrosive locations, providing durability and safety in challenging environments.
Q: What are the construction materials of 10/2 UF-B wire? A: The 10/2 UF-B wire is constructed with annealed (soft) copper conductors, PVC insulation, and a gray PVC jacket, ensuring reliability and compliance with electrical standards.
