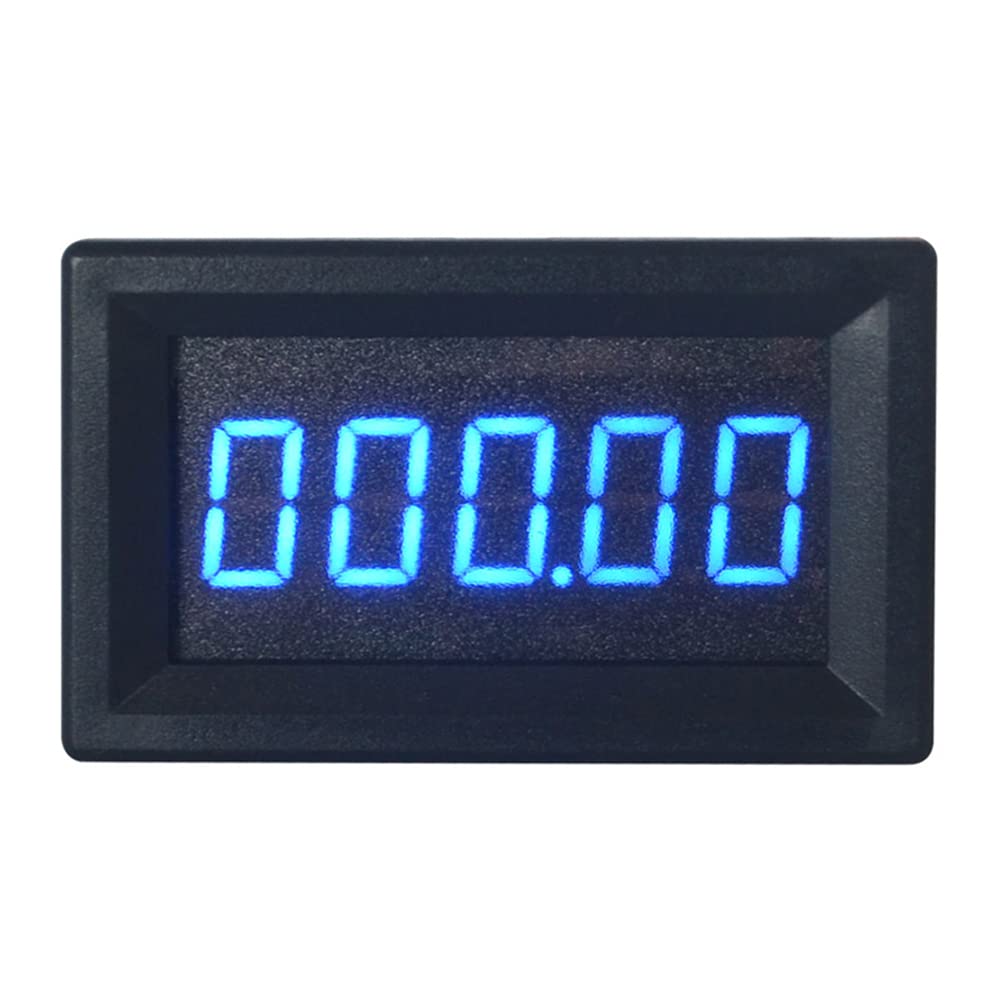

Taidacent Blue Color High Precision 5 Digit Amp Meter Dc 0.0000-3.0000A Ammeter Digital Display Dc Digital Ammeter Resolution 0.1Ma
No reviews
$34.78
Regular price
$49.69
-30%
Couldn't load pickup availability
Vendor: Taidacent
Type: Ammeters
Sku: WBHDWB07Y88BTZQ
Available: Available
Shipping information
- No EU import duties. - Ships within 3-5 business days. (USA) - Ships with 8-12 business days. (International)
⚠️ California Proposition 65 Warning : Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, visit www.P65Warnings.ca.gov.

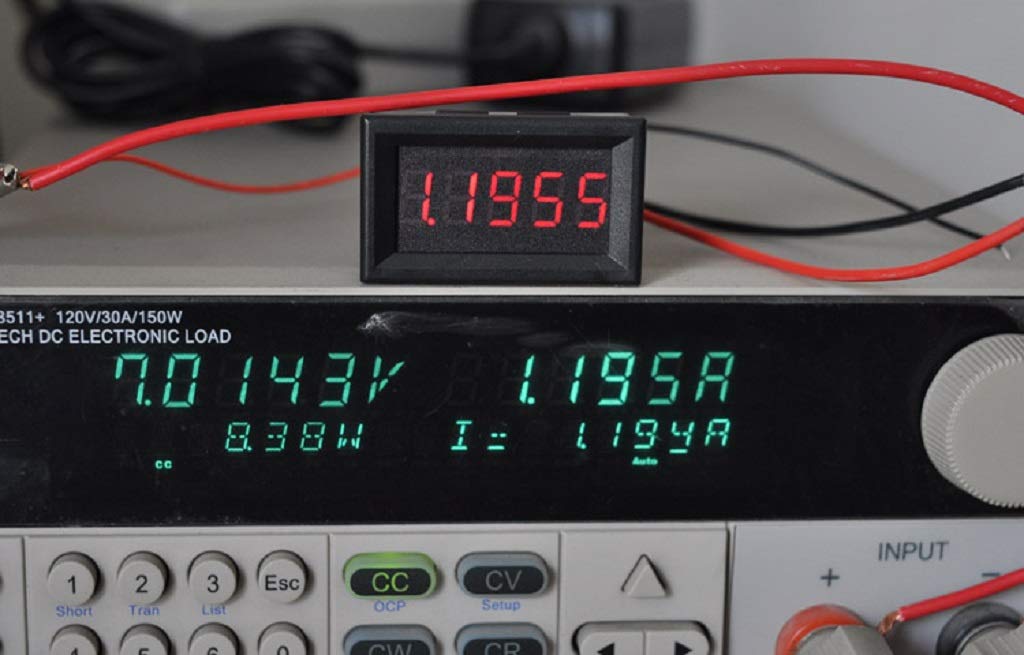

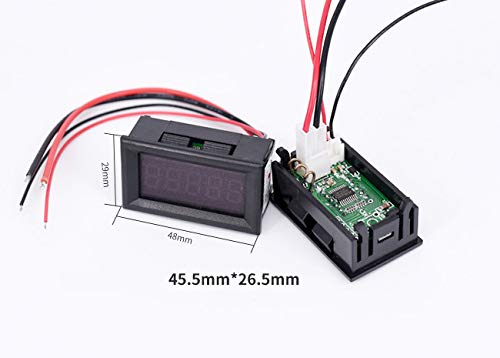

The basic performance parameters of the ammeter are as follows: Range: DC0-3.0000A, the maximum reservation can be measured 5A, the accuracy of 3A or more has a slight influence Display: five digits 0.36LED Digital tube display color: red (because the cost of different colors of digital tube is not the same, so the price is not the same, other functions are the same) Refresh rate: >3 times per second Measurement accuracy: ± (0.5 ‰ + 2 words) (meaning that the maximum error of the table is within 1.7mA, the normal error is less than 0.5mA) Supply voltage: DC3.5-30V Working temperature: -10 ° C ~ 65 ° C Opening size: 45.5mm*26.5mm (the opening directly snaps the watch into the panel) Dimensions: 48mm*29mm*21mm Temperature coefficient: less than 50PPM/°C Features: 1, flexible power supply: no need to isolate the power supply, you can use the system's common power supply. 2, small size: the external dimensions are only 48mm * 29mm * 21mm 3. High precision: The measurement range is 0-3.0000A over the traditional 0-2.0000A header. Thin red line: the positive pole of the power supply, need to connect the positive pole of the DC range of 3.5-30V Fine black line: power supply negative pole (when it is connected to the thick black line through system, it needs to be suspended) Thick red line: current measurement signal input positive Thick black line: current measurement signal input negative Note: The header needs to be powered independently. The power supply range is 3.5-30V DC. When the red and black wires are connected to the power supply, the meter will display 0.0000 (very few possible 1). At this time, the thick black line and the thick red line can be connected in series. Into the circuit under test.
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the measurement range of the Taidacent Blue Color High Precision Amp Meter?A: The Taidacent Blue Color High Precision Amp Meter has a measurement range of DC 0.0000-3.0000A, allowing for accurate readings up to 5A.
Q: How accurate is the Taidacent digital ammeter?A: This digital ammeter offers a measurement accuracy of ± (0.5 ‰ + 2 words), meaning the maximum error is within 1.7mA, with a normal error of less than 0.5mA.
Q: What is the supply voltage required for this ammeter?A: The Taidacent amp meter requires a supply voltage of DC 3.5-30V for proper operation.
Q: Can I use this ammeter with a common power supply?A: Yes, the Taidacent amp meter features a flexible power supply option, allowing it to be powered without isolation and compatible with a common ground power supply system.
Q: What are the dimensions of the Taidacent digital display ammeter?A: The dimensions of the Taidacent digital display ammeter are 48mm x 29mm x 21mm, with an opening size of 45.5mm x 26.5mm for easy installation.
