What is the compatibility of the RV in-wall slide-out motor?

The RV in-wall slide-out motor is compatible with the Lippert Schwintek In-Wall Slide System and is a direct replacement for part number 236575. It fits various models including the 2014 Grey Wolf 26 dbh and the 2016 Coachman Prism LE 2200.

How do I install the in-wall slide-out motor?

To install the in-wall slide-out motor, first remove the motor retention screw from outside the coach. Inside, remove the seal to access the motor notch, unplug the old motor, and lift it out. Replace it with the new motor, reconnect the wiring, restore the seal, and secure the motor with screws. Detailed steps are provided in the product description.

What are the key specifications of this slide-out motor?

The RV in-wall slide-out motor features a 300:1 high torque gear ratio, operates at 12V, has a no-load speed of 26rpm, and a rated speed of 22rpm. It also has an encoder with a 10 pole 5ppr specification.

How do I troubleshoot issues with the slide-out motor?

To troubleshoot, test the original motor harness with a test harness. If the fault code remains, the harness is fine. If the fault code changes when switching to the controller, then the motor may need replacement. Always return harnesses to their original locations after testing.

What kind of warranty and customer service does this product offer?

This RV in-wall slide-out motor comes with a 36-month warranty and 24-hour customer service. If you have any questions or issues, contacting us via email will ensure prompt assistance and solutions.

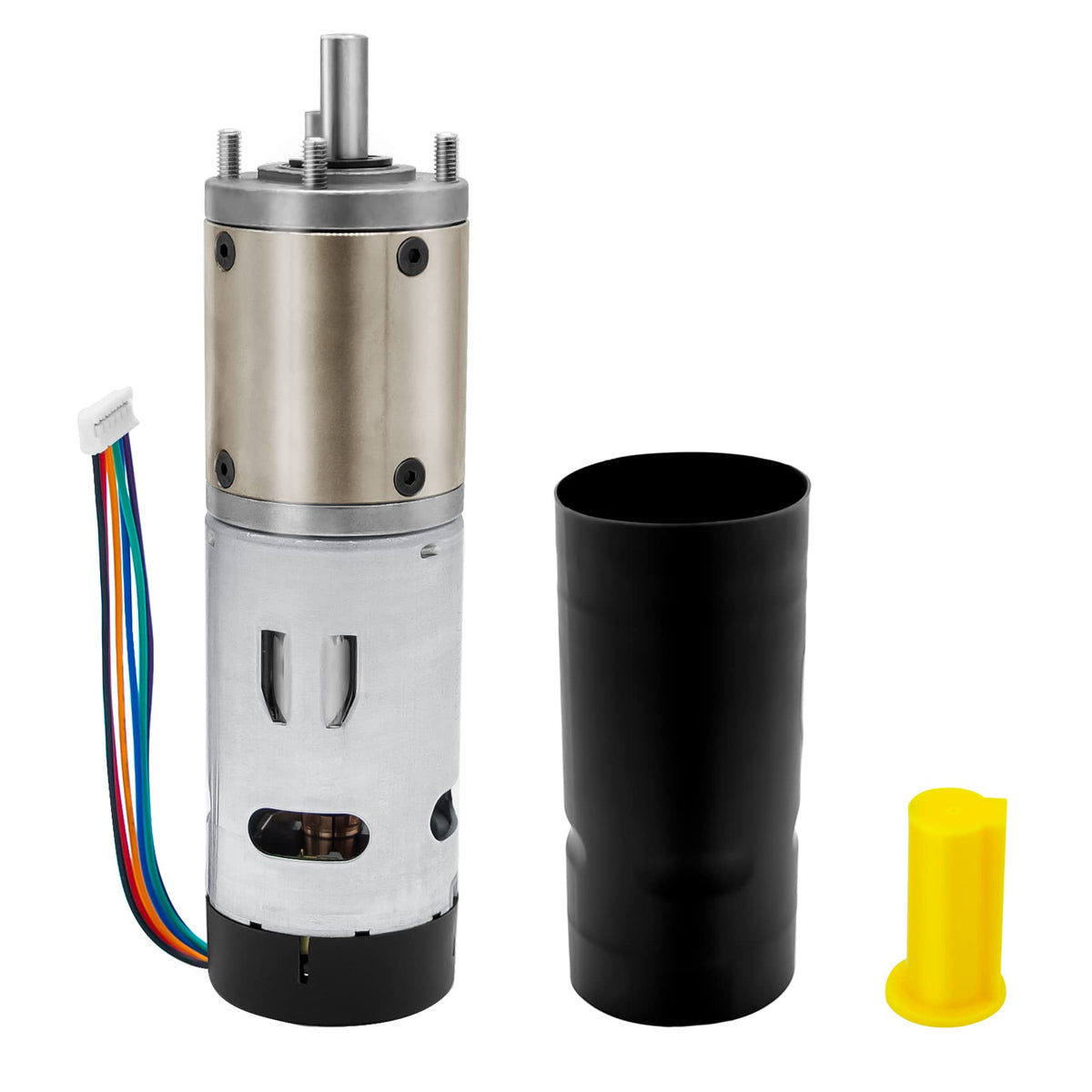

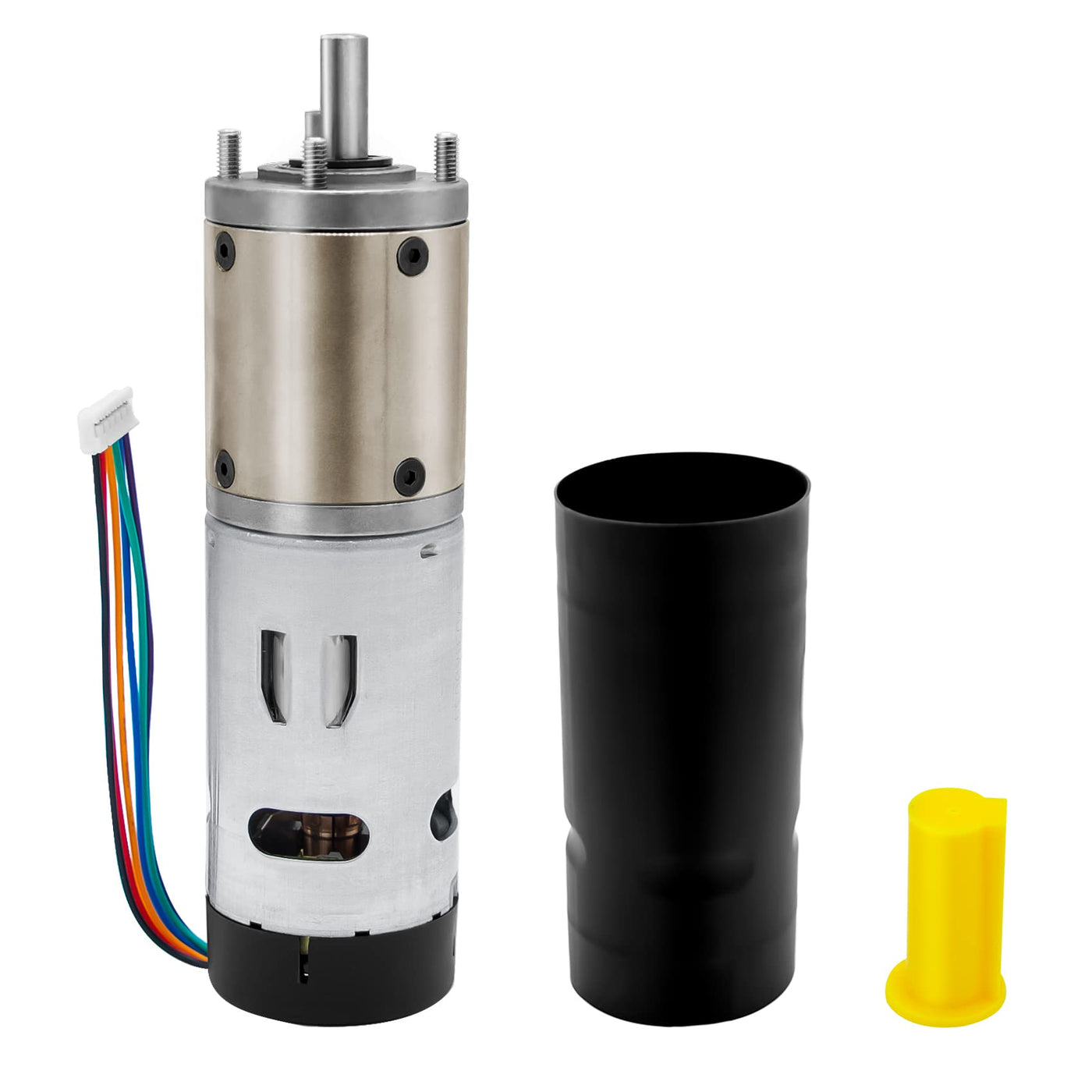

236575, Rv In-Wall Slide-Out Motor Compatible With Lippert Schwintek In-Wall Slide System, Ig-42 10Mm Motor Assembly, Slide Moto

$84.16
Regular price ~~$120.23~~

Wishlist

Vendor: FHRHRY

Type: Gear Kit

Sku: WBCARB09M74QKXH

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

⚠️ California Proposition 65 Warning :
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, visit www.P65Warnings.ca.gov.

Guarantee safe checkout

236575, Rv In-Wall Slide-Out Motor Compatible With Lippert Schwintek In-Wall Slide System, Ig-42 10Mm Motor Assembly, Slide Moto

$84.16

Description

RV IN-WALL SLIDE-OUT MOTORProduct Specifications:Replace Part Number: 236575300:1 High torque gear ratio motorVoltage 12VNo-load Speed 26rpmNo-load Current <1.3ARated Speed 22rpmEncoder 10 Pole 5ppr How to detect failures?1. Test the original motor harness with the test harness. If the fault code stays, the original motor harness doesn't need to be replaced. After the test is complete, replace the test motor harness with the original harness.2. Test the controller by switching the original motor harnesses to the controller. Operate slide-out and if the fault code stays the same the controller needs to be replaced. If the fault code changes, the motor needs to be replaced. After the test is complete, return motor harnesses back to the original locations. How to Replace and Install?1. Outside the coach, locate and remove the motor retention screw.2. Inside the coach, remove the seal to access the motor notch. unplug the motor and lift the motor up within the h-column, then pull out of the motor notch once the shaft is clear/visible.3. Replace the new motor. Reinsert the motor wiring harness, restore the seal and replace the motor fixing screws.Tips: please note the connection between the Encoder wire and the motor (Proper connection for proper motor operation). Package1* in-Wall Slide-Out Motor Notes1. Please check your model and part number carefully before ordering. If you have any questions about model or installation or other aspects, please email us.2. If you are not satisfied with this item, please feel free to let me know. We will get back to you within 24 hours. We will provide a replacement or help you solve it perfectly.

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the compatibility of the RV in-wall slide-out motor? A: The RV in-wall slide-out motor is compatible with the Lippert Schwintek In-Wall Slide System and is a direct replacement for part number 236575. It fits various models including the 2014 Grey Wolf 26 dbh and the 2016 Coachman Prism LE 2200.
Q: How do I install the in-wall slide-out motor? A: To install the in-wall slide-out motor, first remove the motor retention screw from outside the coach. Inside, remove the seal to access the motor notch, unplug the old motor, and lift it out. Replace it with the new motor, reconnect the wiring, restore the seal, and secure the motor with screws. Detailed steps are provided in the product description.
Q: What are the key specifications of this slide-out motor? A: The RV in-wall slide-out motor features a 300:1 high torque gear ratio, operates at 12V, has a no-load speed of 26rpm, and a rated speed of 22rpm. It also has an encoder with a 10 pole 5ppr specification.
Q: How do I troubleshoot issues with the slide-out motor? A: To troubleshoot, test the original motor harness with a test harness. If the fault code remains, the harness is fine. If the fault code changes when switching to the controller, then the motor may need replacement. Always return harnesses to their original locations after testing.
Q: What kind of warranty and customer service does this product offer? A: This RV in-wall slide-out motor comes with a 36-month warranty and 24-hour customer service. If you have any questions or issues, contacting us via email will ensure prompt assistance and solutions.
