What types of motors is the New Winch Motor Reversing Solenoid compatible with?

The New Winch Motor Reversing Solenoid is compatible with winch motors, snow plow and spreader motors, windlasses, hydraulic pump motors, and other reversible motors that normally require multiple solenoids.

What are the performance specifications of this solenoid?

This solenoid has various performance specifications: it supports 75 Amp make and break with a maximum on time of 5 minutes, 125 Amp make and break with a maximum on time of 30 seconds, and 150 Amp make and break with a maximum on time of 0.5 seconds. It's important to allow a 5-minute cool down time after reaching maximum limits.

Can this solenoid be used with older style motors?

No, this solenoid is specifically designed for use with Permanent Magnet winch motors that have 2 terminal posts. It will not work with older style motors that utilize copper wound fields.

What are the key features of this solenoid?

Key features of this solenoid include a 12V voltage, 150 surge amps, a flat 180 (F180) mounting style, intermittent duty cycle, plastic case material, 6 terminals, and copper contacts. It also features DPDT (Double Pole Double Throw) for motor reversing and includes threaded studs and blade terminals for easy connection.

How do I ensure this solenoid is the correct part for my application?

To ensure this solenoid is the correct part for your application, please verify the part numbers you are replacing. This solenoid replaces OEM part numbers from Cole Hersee (24450, 24450BX) and Trombetta (214-1211A11, 214-1211A11-06, 214-1211A51, 214-1211A61, 214-1231A11). Additionally, ensure that it is compatible with your specific motor type.

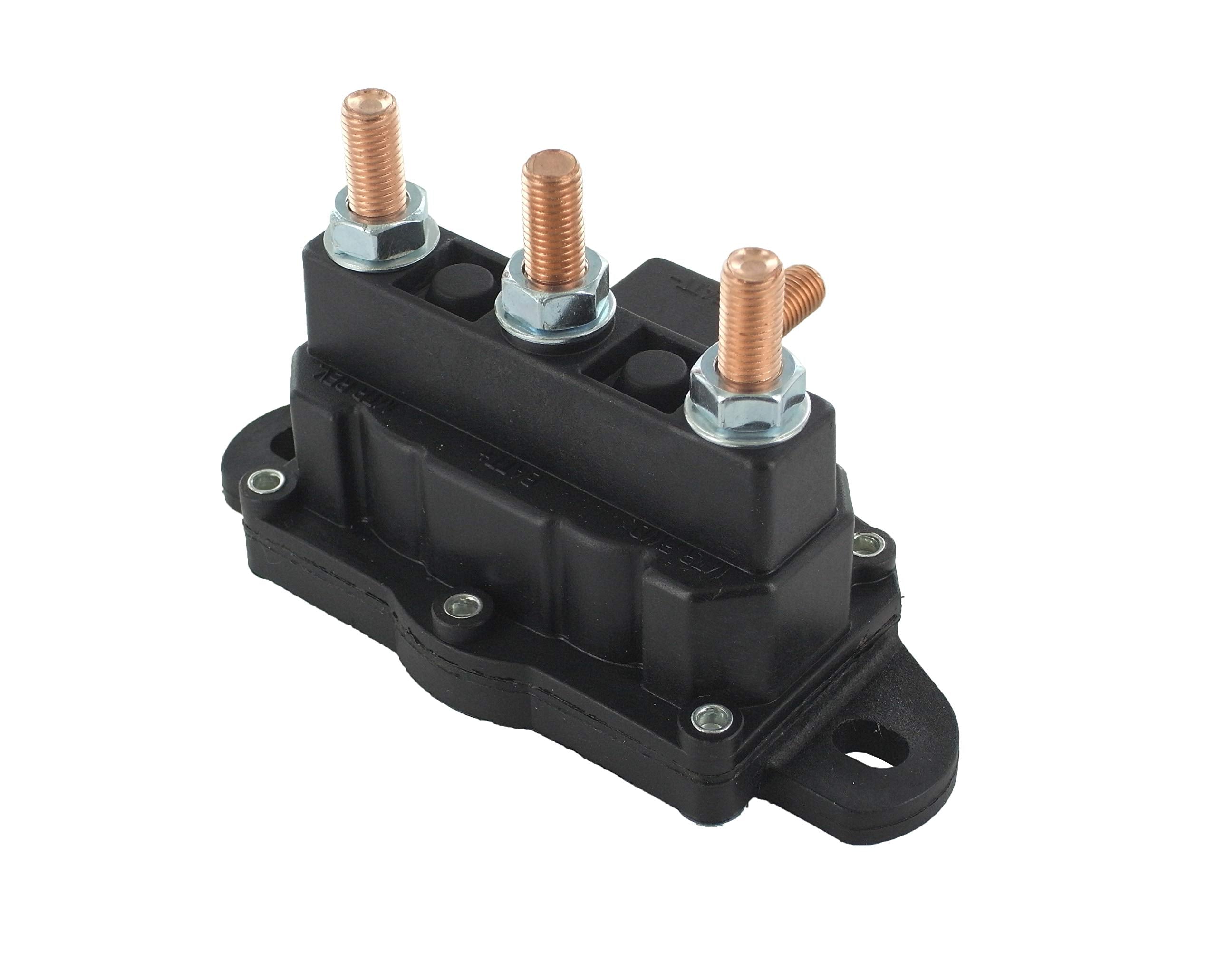

New Winch Motor Reversing Solenoid Contactor Relay 6 Terminal Replacement For Trombetta Style Large

$25.94
Regular price ~~$37.06~~

Wishlist

Vendor: Discount Starter & A

Type: Starters & Parts

Sku: WBCARB01MQR0G00

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

New Winch Motor Reversing Solenoid Contactor Relay 6 Terminal Replacement For Trombetta Style Large

$25.94

Description

Compatible With: Includes Wiring Diagram And Mounting Instructions!Compatible With Winch Motors, Snow Plow & Spreader Motors, Windlasses, Hydraulic Pump Motors & Other Reversible Motors That Normally Require Multiple Solenoidssolenoid Performance: 75 Amp Make And Break:Maximum On Time: 5 Minutes.125 Amp Make And Break:Maximum On Time: 30 Seconds.150 Amp Make And Break:Maximum On Time: 0.5 Seconds.**Allow 5 Minute Cool Down Time After Pushing Solenoid To Maximum Limit!**Specifications: Description: Solenoidvoltage: 12Surge Amps: 150Mounting: Flat 180 (F180)Duty Cycle: Intermittentcase Material: Plasticnumber Of Terminals: 6Contacts: Copper Contactsnotes: Dpdt(Double Pole Double Throw)Motor Reversing(4) 5/16''-24 Threaded Studs For Battery & Motor(2) 6.4Mm Blade Terminals For Solenoid Operationuse With A Spdt Momentary Toggle Or Rocker Switchthis Solenoid Is Used To Reverse Polarity On Permanent Magnet Winch Motors With 2 Terminal Post. This Solenoid Only Works With Permanent Magnet Motors. Will Not Work With Older Style Motors With Copper Wound Fields. Replaces These Part Numbers: Cole Hersee24450, 24450Bxtrombetta214-1211A11, 214-1211A11-06, 214-1211A51, 214-1211A61, 214-1231A11

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What types of motors is the New Winch Motor Reversing Solenoid compatible with? A: The New Winch Motor Reversing Solenoid is compatible with winch motors, snow plow and spreader motors, windlasses, hydraulic pump motors, and other reversible motors that normally require multiple solenoids.
Q: What are the performance specifications of this solenoid? A: This solenoid has various performance specifications: it supports 75 Amp make and break with a maximum on time of 5 minutes, 125 Amp make and break with a maximum on time of 30 seconds, and 150 Amp make and break with a maximum on time of 0.5 seconds. It's important to allow a 5-minute cool down time after reaching maximum limits.
Q: Can this solenoid be used with older style motors? A: No, this solenoid is specifically designed for use with Permanent Magnet winch motors that have 2 terminal posts. It will not work with older style motors that utilize copper wound fields.
Q: What are the key features of this solenoid? A: Key features of this solenoid include a 12V voltage, 150 surge amps, a flat 180 (F180) mounting style, intermittent duty cycle, plastic case material, 6 terminals, and copper contacts. It also features DPDT (Double Pole Double Throw) for motor reversing and includes threaded studs and blade terminals for easy connection.
Q: How do I ensure this solenoid is the correct part for my application? A: To ensure this solenoid is the correct part for your application, please verify the part numbers you are replacing. This solenoid replaces OEM part numbers from Cole Hersee (24450, 24450BX) and Trombetta (214-1211A11, 214-1211A11-06, 214-1211A51, 214-1211A61, 214-1231A11). Additionally, ensure that it is compatible with your specific motor type.
