What types of microcontrollers are compatible with the ANMBEST 5V Relay Module?

The ANMBEST 5V Relay Module is compatible with a wide range of microcontrollers including Arduino, AVR, PIC, ARM, and DSP, making it versatile for various projects.

How do I choose between high-level and low-level triggering for the relay?

You can select between high-level and low-level triggering by using a jumper. If the jumper is connected to 'L', it will trigger on low level; if connected to 'H', it will trigger on high level.

What is the maximum load capacity of the relay module?

The relay module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC, making it suitable for various applications.

Is the relay module easy to install?

Yes, the ANMBEST Relay Module features a user-friendly design with screwed terminal plates and fixed bolt holes for easy installation, ensuring a convenient setup process.

What safety features does the relay module have?

The relay module includes a fault-tolerant design, which ensures that the relay will not activate if the control line breaks, along with optical coupling isolation for reliable and stable triggering.

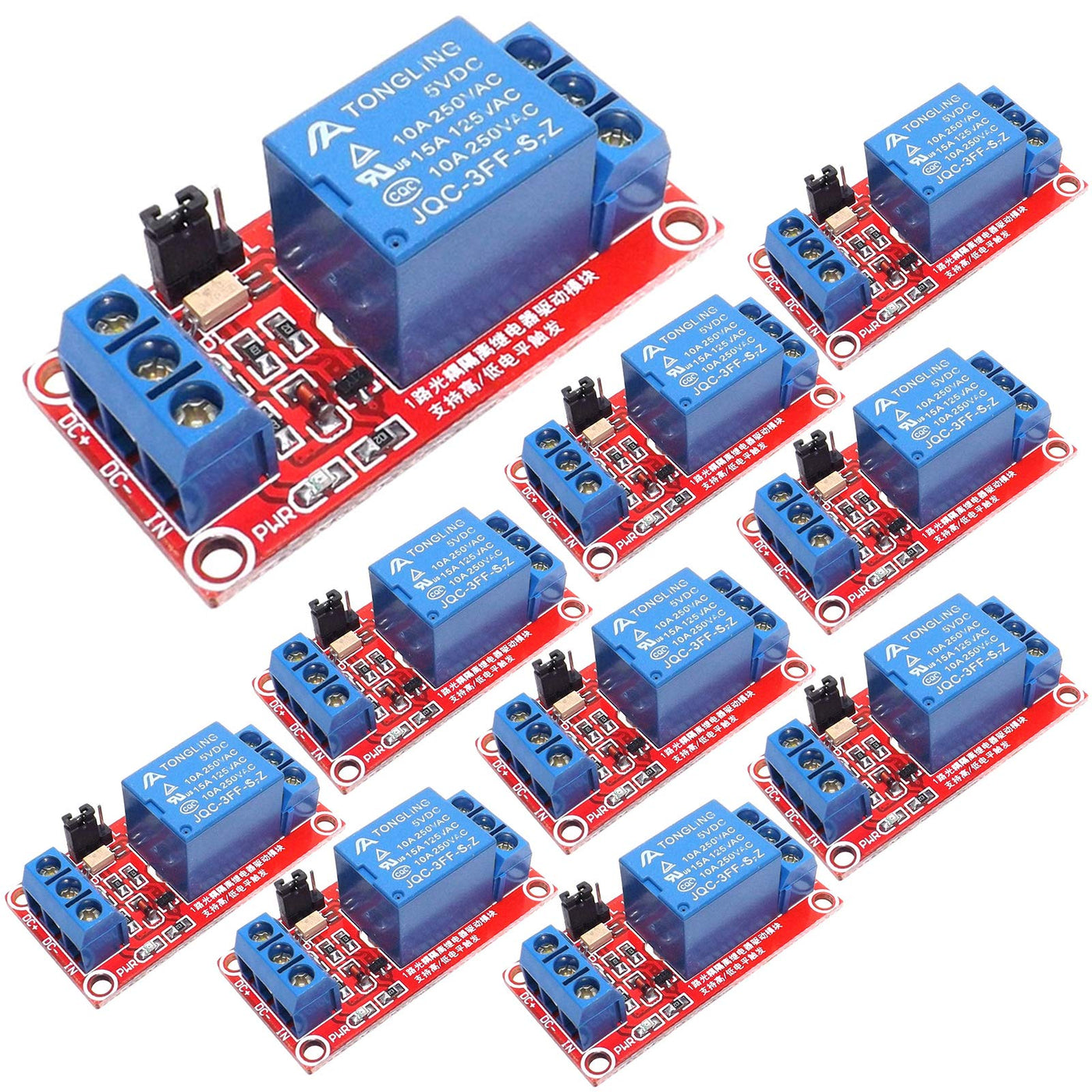

Anmbest 10Pcs 5V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino

Anmbest 10Pcs 5V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino

$18.34
Regular price ~~$26.20~~
Will be in stock after

Join Waitlist

Wishlist

Vendor: Anmbest

Type: Relays

Sku: WBIASB08PP2LV97

Available: Sold Out

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Anmbest 10Pcs 5V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino

$18.34

Description

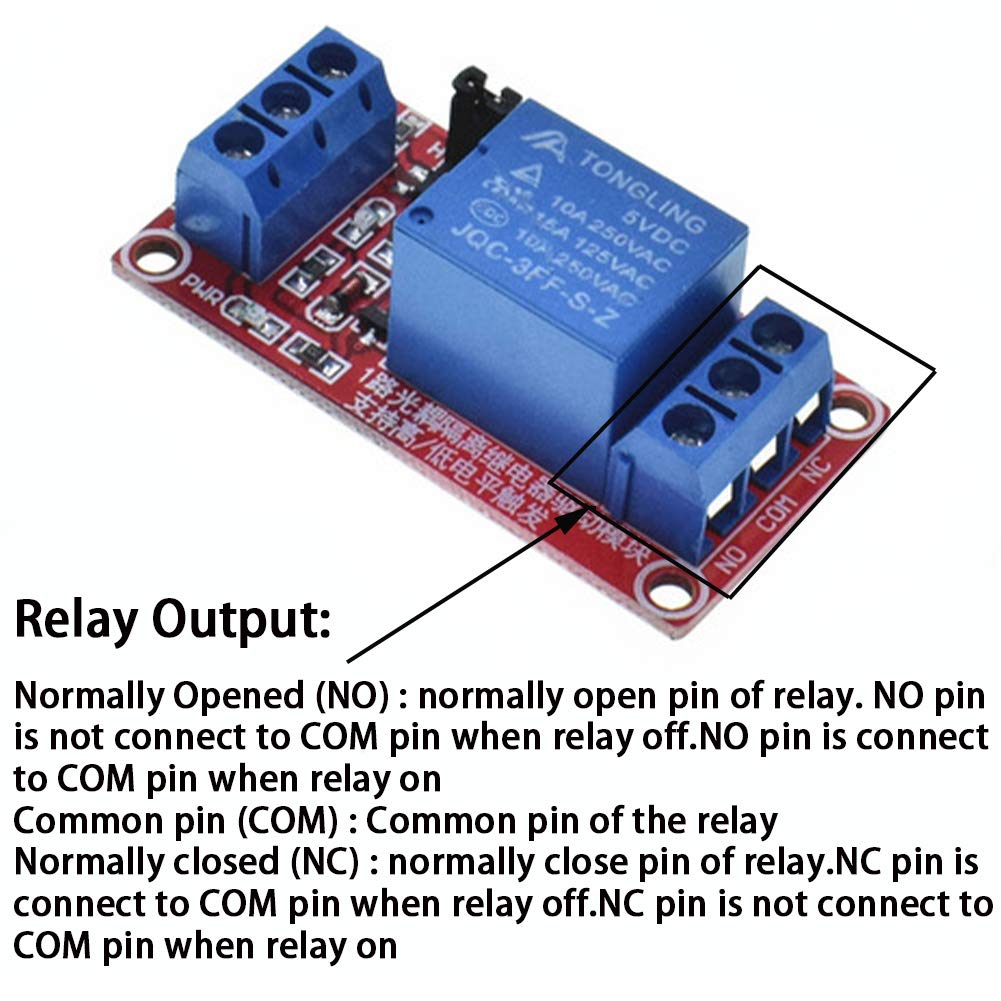

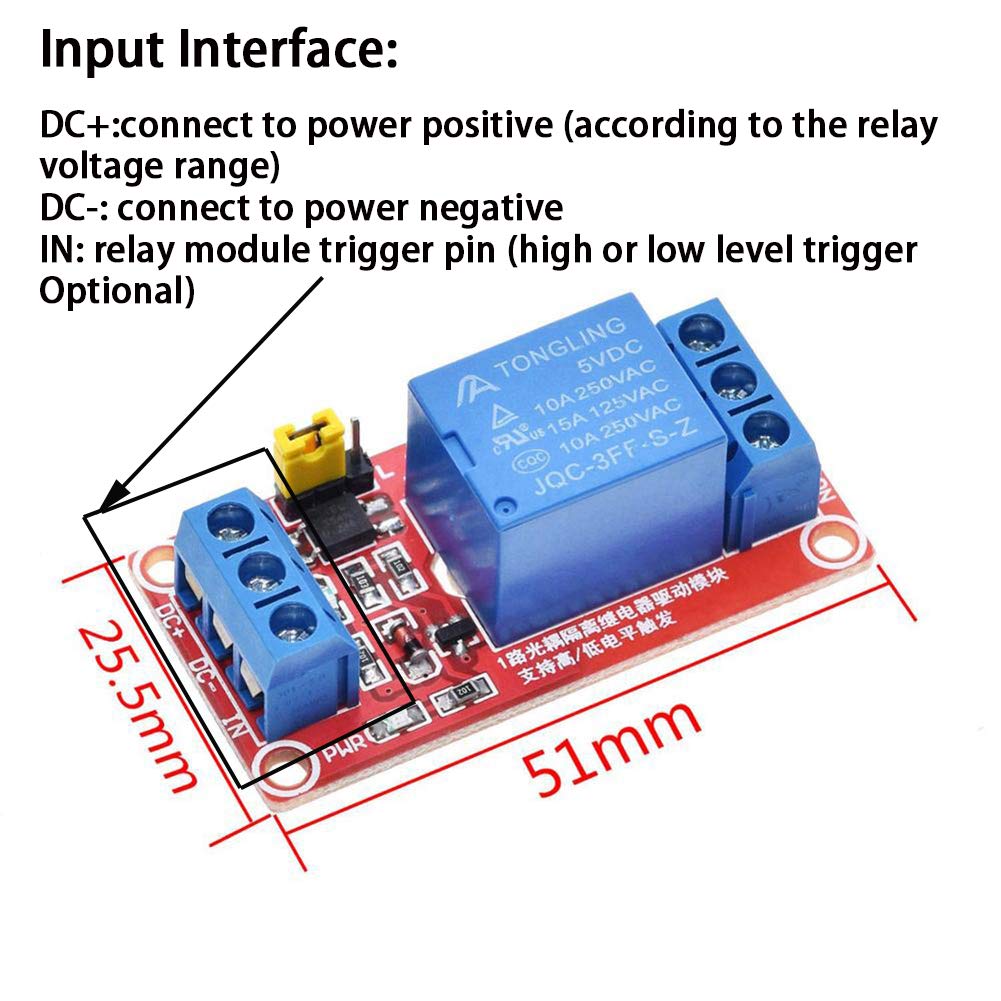

The relay comes with 1(single) channel 5V activation relay, ready to control 250VAC at 10A. Extra isolation with opto-coupler at the front end of control, and the activation logic for relay is configureable via a mini jumper. Technical Specifications: Channel: 1 channel Working Voltage: DC 5V Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC Quiescent Current: 5mA Maximum Current: 190mA Trigger Current: 2 - 5mA Trigger Voltage(LOW): 0 - 1.5V Trigger Voltage(HIGH): 2.5 - 5V Insulation resistance: 100MO (500VDC) Action time (under rated voltage): less than 10ms Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red) User friendly interface design. All interfaces can be connected directly via terminal wiring leads. Module Size: 51mmX25.5mmX18.5mm /2.07X1.01X0.73inch(L*W*H) Input Interface: DC+:connect to power positive (according to the relay voltage range) DC-: connect to power negative IN: relay module trigger pin (high or low level trigger Optional) Relay Output: Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on; Common pin (COM) : Common pin of the relay; Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on; High/Low Level Trigger: 1. Low level trigger when jumper and L short circuit; 2. High level trigger when jumper and H short circuit. Package includes: 10 x One Channel 5V Relay Module with Optocoupler Module

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What types of microcontrollers are compatible with the ANMBEST 5V Relay Module? A: The ANMBEST 5V Relay Module is compatible with a wide range of microcontrollers including Arduino, AVR, PIC, ARM, and DSP, making it versatile for various projects.
Q: How do I choose between high-level and low-level triggering for the relay? A: You can select between high-level and low-level triggering by using a jumper. If the jumper is connected to 'L', it will trigger on low level; if connected to 'H', it will trigger on high level.
Q: What is the maximum load capacity of the relay module? A: The relay module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC, making it suitable for various applications.
Q: Is the relay module easy to install? A: Yes, the ANMBEST Relay Module features a user-friendly design with screwed terminal plates and fixed bolt holes for easy installation, ensuring a convenient setup process.
Q: What safety features does the relay module have? A: The relay module includes a fault-tolerant design, which ensures that the relay will not activate if the control line breaks, along with optical coupling isolation for reliable and stable triggering.
