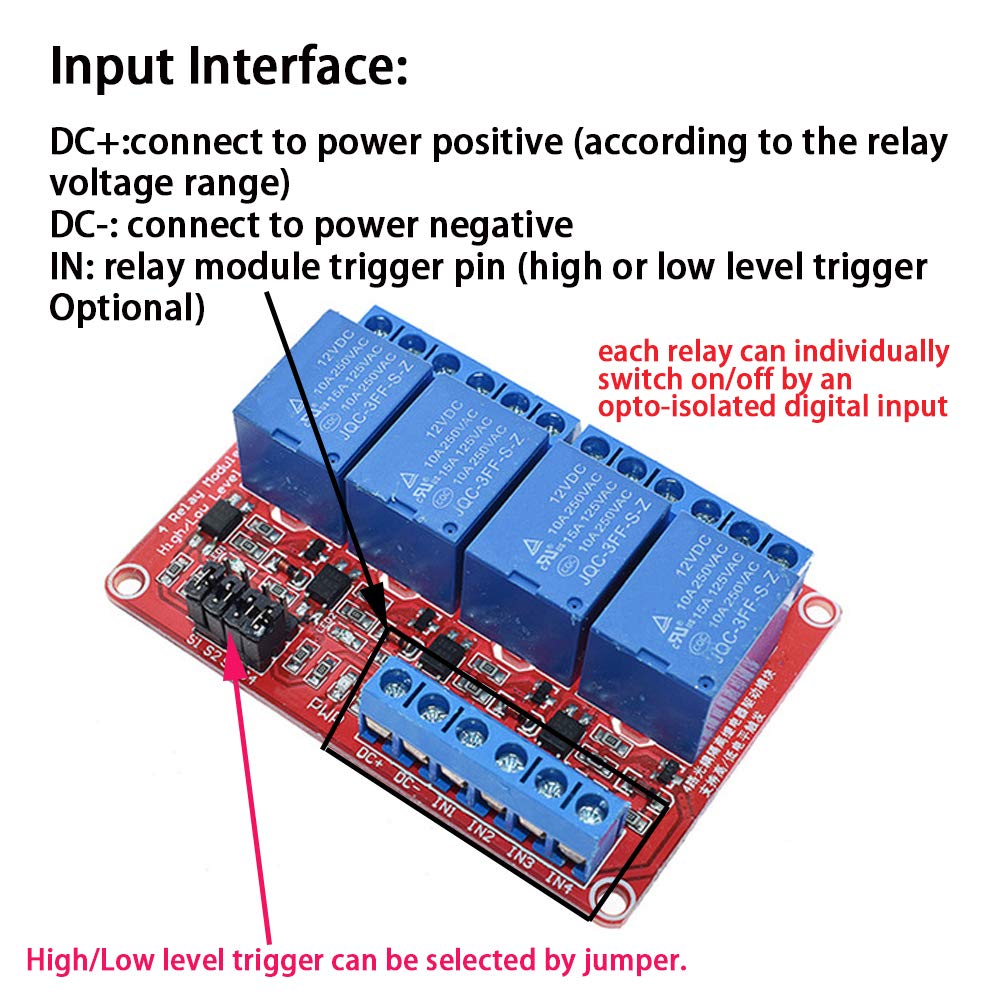

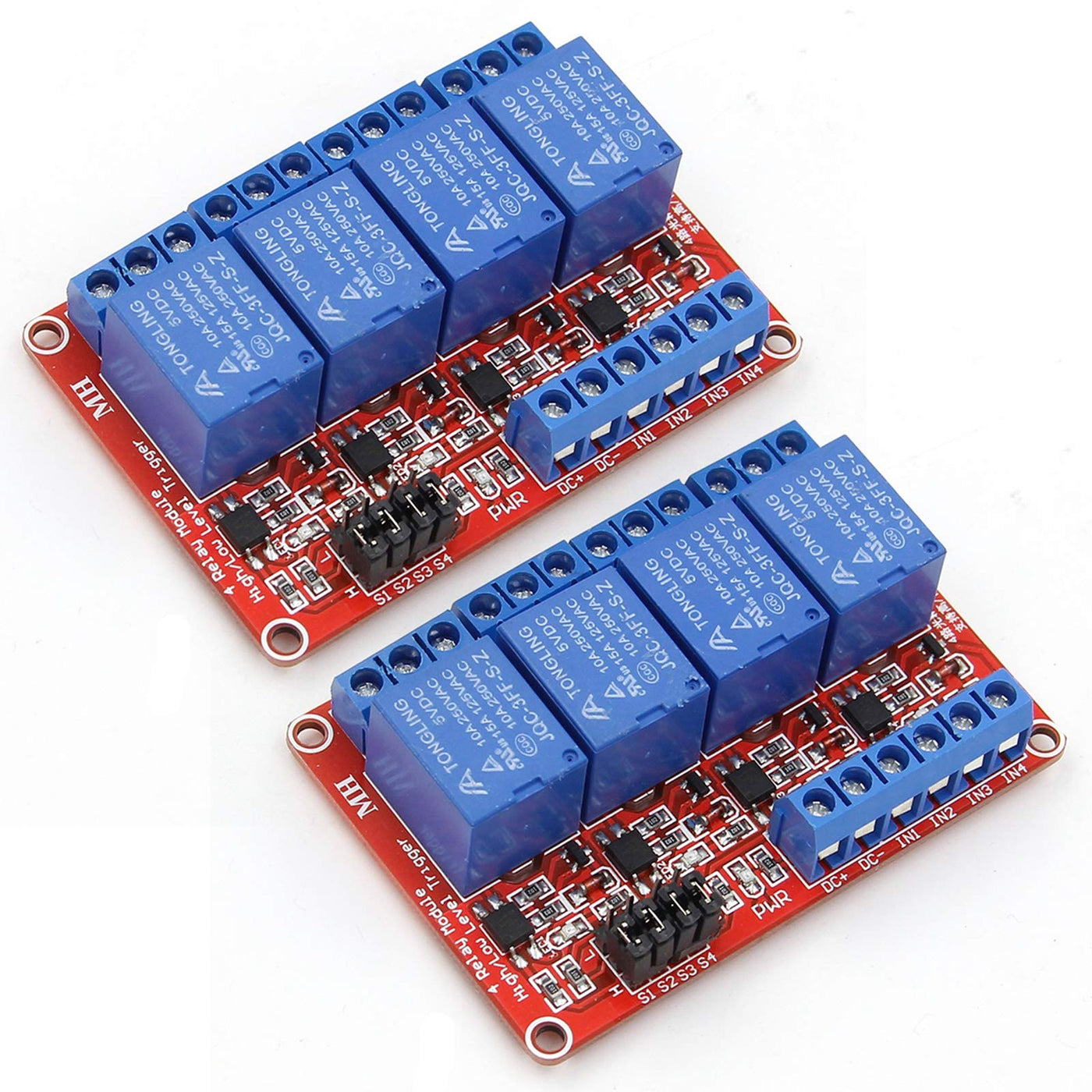

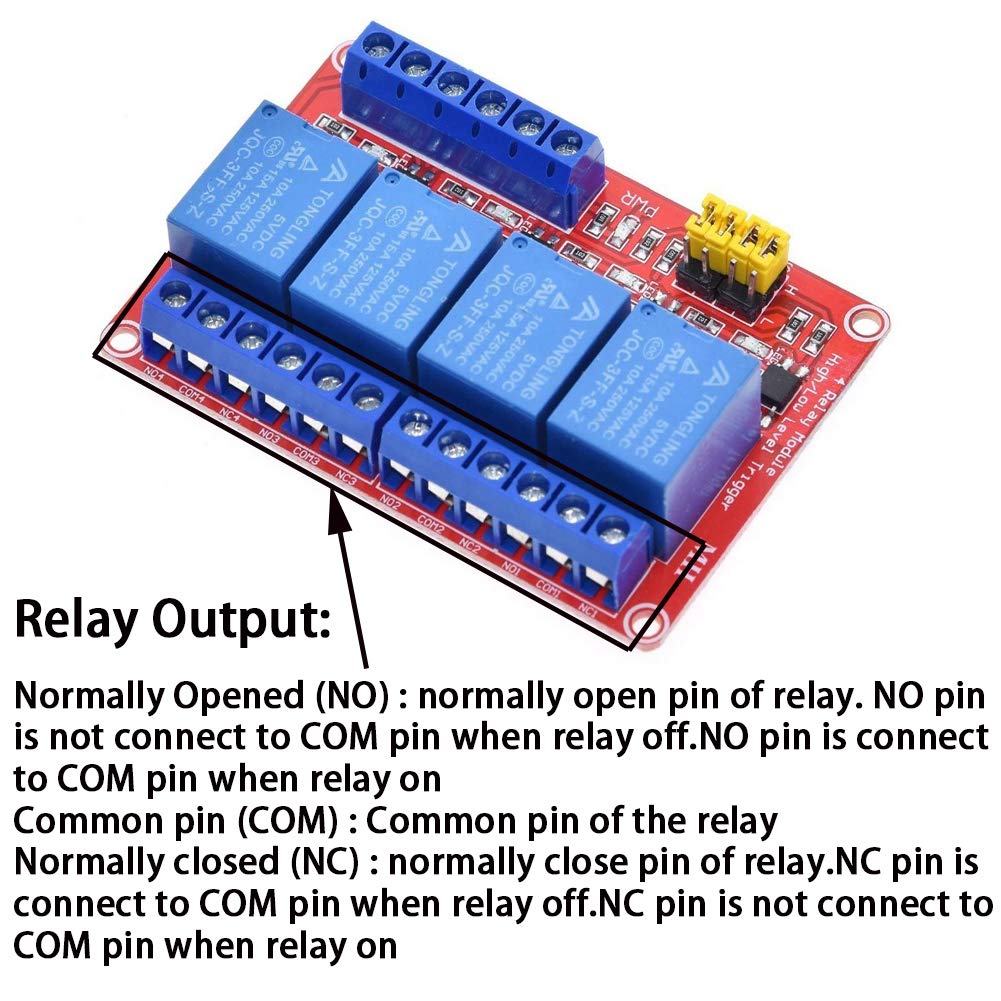

The relay comes with 4(single) channel 12V activation relay, ready to control 250VAC at 10A. Extra isolation with opto-coupler at the front end of control, and the activation logic for relay is configureable via a mini jumper. Technical Specifications: Channel: 4 channel Working Voltage: DC 12V Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC Quiescent Current: 5mA Maximum Current: 80mA Trigger Current: 2 - 5mA Trigger Voltage(LOW): 0 - 4V Trigger Voltage(HIGH): 4.5 - 12V Insulation resistance: 100MO (500VDC) Action time (under rated voltage): less than 10ms Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red) User friendly interface design. All interfaces can be connected directly via terminal wiring leads. Module Size: 73mmX50mmX18.5mm /4.06X1.97X0.73inch(L*W*H) Input Interface: DC+:connect to power positive (according to the relay voltage range) DC-: connect to power negative IN: relay module trigger pin (high or low level trigger Optional) Relay Output: Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on; Common pin (COM) : Common pin of the relay; Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on; High/Low Level Trigger: 1. Low level trigger when jumper and L short circuit; 2. High level trigger when jumper and H short circuit. Package includes: 2 x Four Channel 12V Relay Module with Optocoupler Module
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the maximum load capacity of the ANMBEST 4 Channel Relay Module?A: The ANMBEST 4 Channel Relay Module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC, making it suitable for various applications.
Q: How do I trigger the relay module using a microcontroller?A: You can trigger the relay module using either a high or low level signal from your microcontroller. The activation logic is configurable via a mini jumper, providing flexibility in your setup.
Q: Is this relay module compatible with Raspberry Pi and Arduino?A: Yes, the ANMBEST 4 Channel Relay Module is designed to be compatible with a wide range of microcontrollers including Raspberry Pi and Arduino, allowing for easy integration into your projects.
Q: What safety features does the relay module offer?A: The relay module features a fault-tolerant design that ensures the relay will not activate if the control line breaks. Additionally, it includes optical coupling isolation for reliable and stable triggering.
Q: How do I install the ANMBEST Relay Module?A: The relay module is equipped with a screwed terminal plate and fixed bolt holes for easy installation. Simply connect your wires to the terminal leads, and use the bolt holes for secure mounting.
