What is the maximum load capacity of the ANMBEST 2 Channel 12V Relay Module?

The ANMBEST 2 Channel Relay Module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC.

How does the trigger mechanism work on this relay module?

The relay module features a configurable activation logic via a mini jumper, allowing for high or low level triggering. When the jumper is set to 'L', it operates on a low level trigger; when set to 'H', it operates on a high level trigger.

Is the ANMBEST relay module compatible with Arduino and Raspberry Pi?

Yes, this relay module is designed to be compatible with a wide range of microcontrollers including Arduino, Raspberry Pi, AVR, PIC, ARM, and DSP, making it very versatile for various projects.

What safety features does the relay module include?

The ANMBEST relay module features a fault-tolerant design that ensures the relay does not activate if the control line is broken. Additionally, it has optical coupling isolation for more reliable and stable operation.

What is the size of the ANMBEST 2 Channel Relay Module?

The module dimensions are 50mm x 41mm x 18.5mm, which is approximately 1.97 x 1.61 x 0.73 inches.

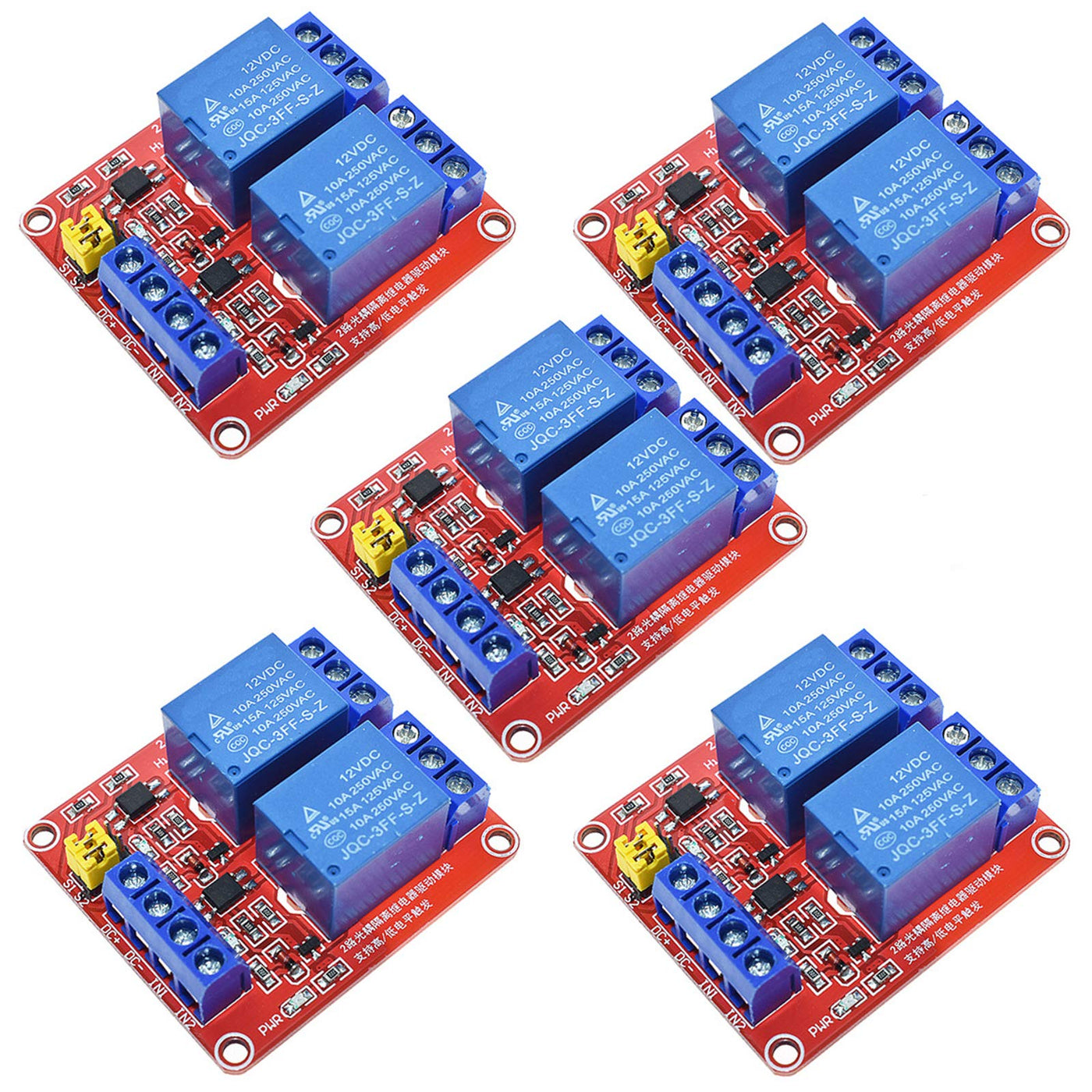

Anmbest 5Pcs 2 Channel 12V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino

Anmbest 5Pcs 2 Channel 12V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino

$19.61
Regular price ~~$28.01~~

Wishlist

Vendor: Anmbest

Type: Relays

Sku: WBIASB08PNW9NV4

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Anmbest 5Pcs 2 Channel 12V Relay Module With Optocoupler High Or Low Level Trigger Expansion Board For Raspberry Pi Arduino

$19.61

Description

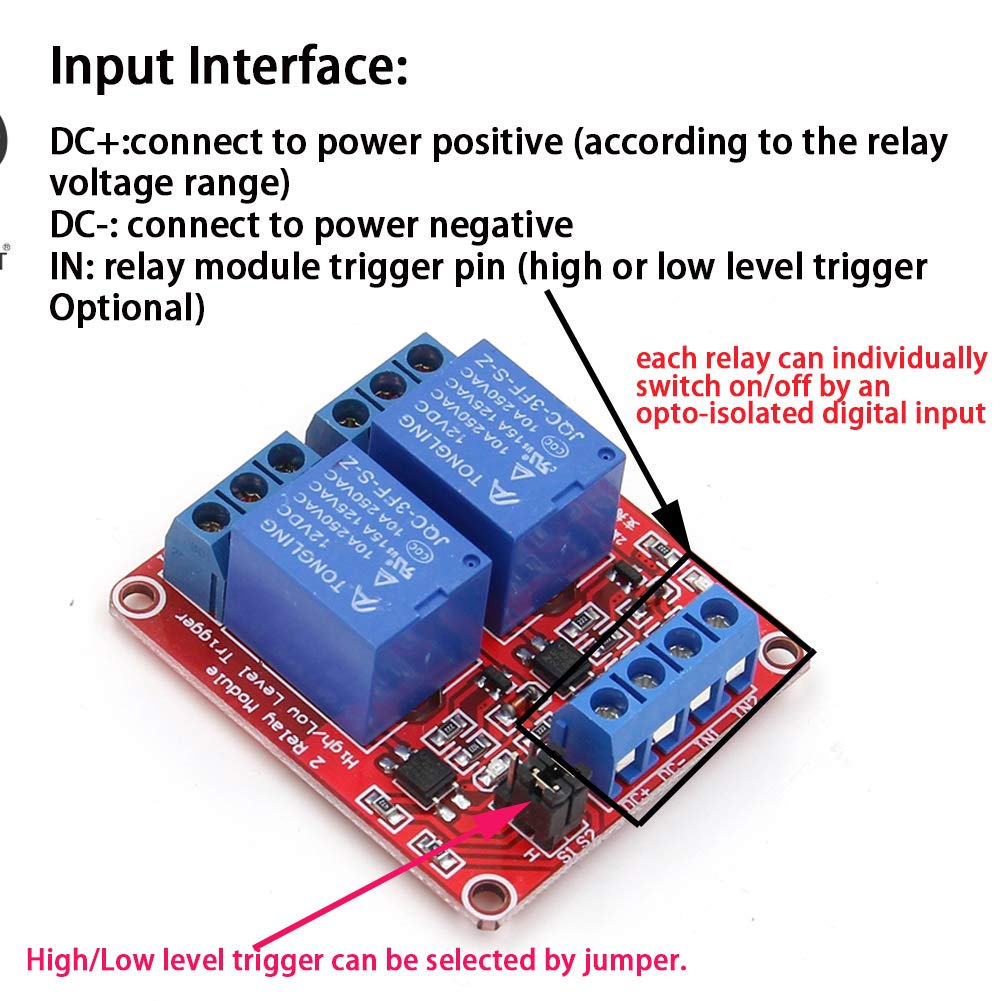

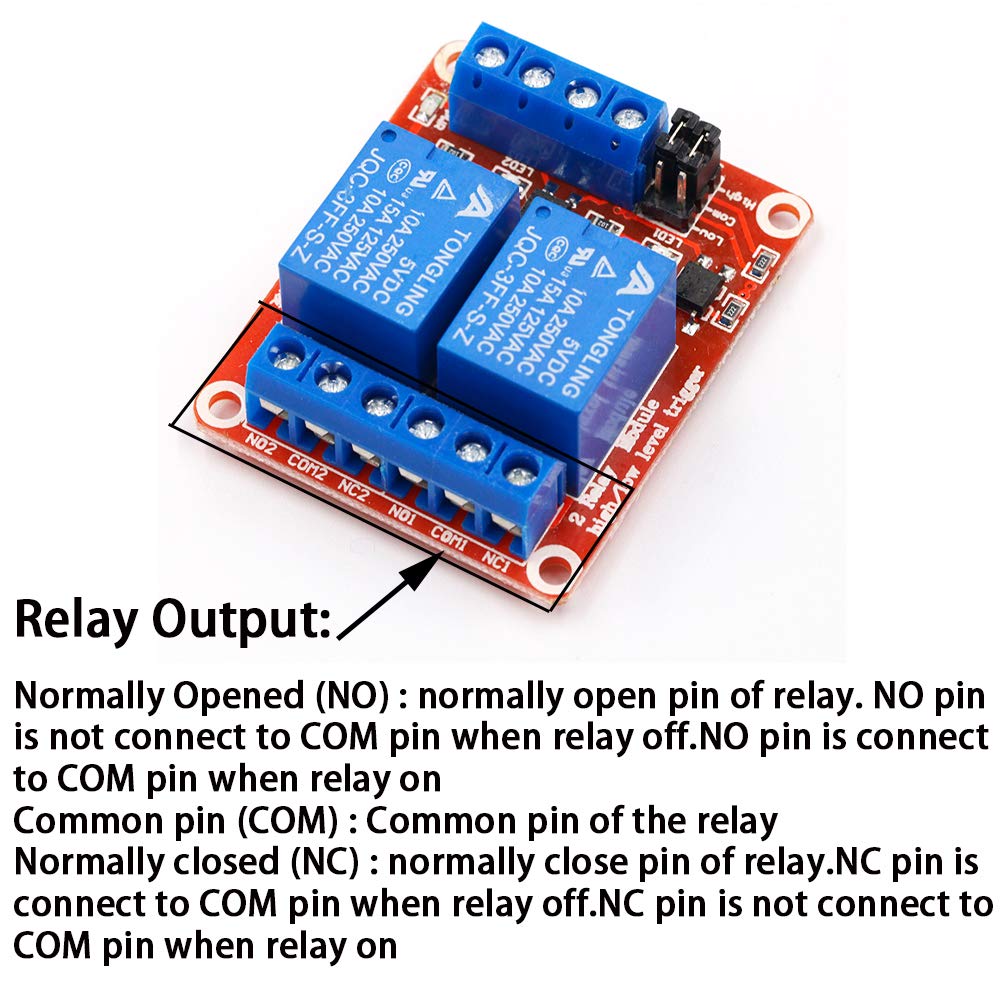

The relay comes with 2 single channel 12V activation relay, ready to control 250VAC at 10A. Extra isolation with opto-coupler at the front end of control, and the activation logic for relay is configureable via a mini jumper. Technical Specifications: Channel: 2 channelWorking Voltage: DC 12V Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC Quiescent Current: 5mA Maximum Current: 80mA Trigger Current: 2 - 5mATrigger Voltage(LOW): 0 - 4V Trigger Voltage(HIGH): 4.5 - 12V Insulation resistance: 100MO (500VDC) Action time (under rated voltage): less than 10ms Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red) User friendly interface design. All interfaces can be connected directly via terminal wiring leads. Module Size: 50mmX41mmX18.5mm /1.97X1.61X0.73inch(L*W*H)Input Interface: DC+:connect to power positive (according to the relay voltage range) DC-: connect to power negativeIN: relay module trigger pin (high or low level trigger Optional)Relay Output: Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on; Common pin (COM) : Common pin of the relay; Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on; High/Low Level Trigger: 1. Low level trigger when jumper and L short circuit; 2. High level trigger when jumper and H short circuit. Package includes: 5 x Two Channel 12V Relay Module with Optocoupler Module

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the maximum load capacity of the ANMBEST 2 Channel 12V Relay Module? A: The ANMBEST 2 Channel Relay Module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC.
Q: How does the trigger mechanism work on this relay module? A: The relay module features a configurable activation logic via a mini jumper, allowing for high or low level triggering. When the jumper is set to 'L', it operates on a low level trigger; when set to 'H', it operates on a high level trigger.
Q: Is the ANMBEST relay module compatible with Arduino and Raspberry Pi? A: Yes, this relay module is designed to be compatible with a wide range of microcontrollers including Arduino, Raspberry Pi, AVR, PIC, ARM, and DSP, making it very versatile for various projects.
Q: What safety features does the relay module include? A: The ANMBEST relay module features a fault-tolerant design that ensures the relay does not activate if the control line is broken. Additionally, it has optical coupling isolation for more reliable and stable operation.
Q: What is the size of the ANMBEST 2 Channel Relay Module? A: The module dimensions are 50mm x 41mm x 18.5mm, which is approximately 1.97 x 1.61 x 0.73 inches.
