Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (12V Relay 8 Channel)

Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (12V Relay 8 Channel)

$17.08
Regular price ~~$24.40~~

Wishlist

Vendor: Anmbest

Type: Relays

Sku: WBIASB08RRY15Z4

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (12V Relay 8 Channel)

$17.08

Description

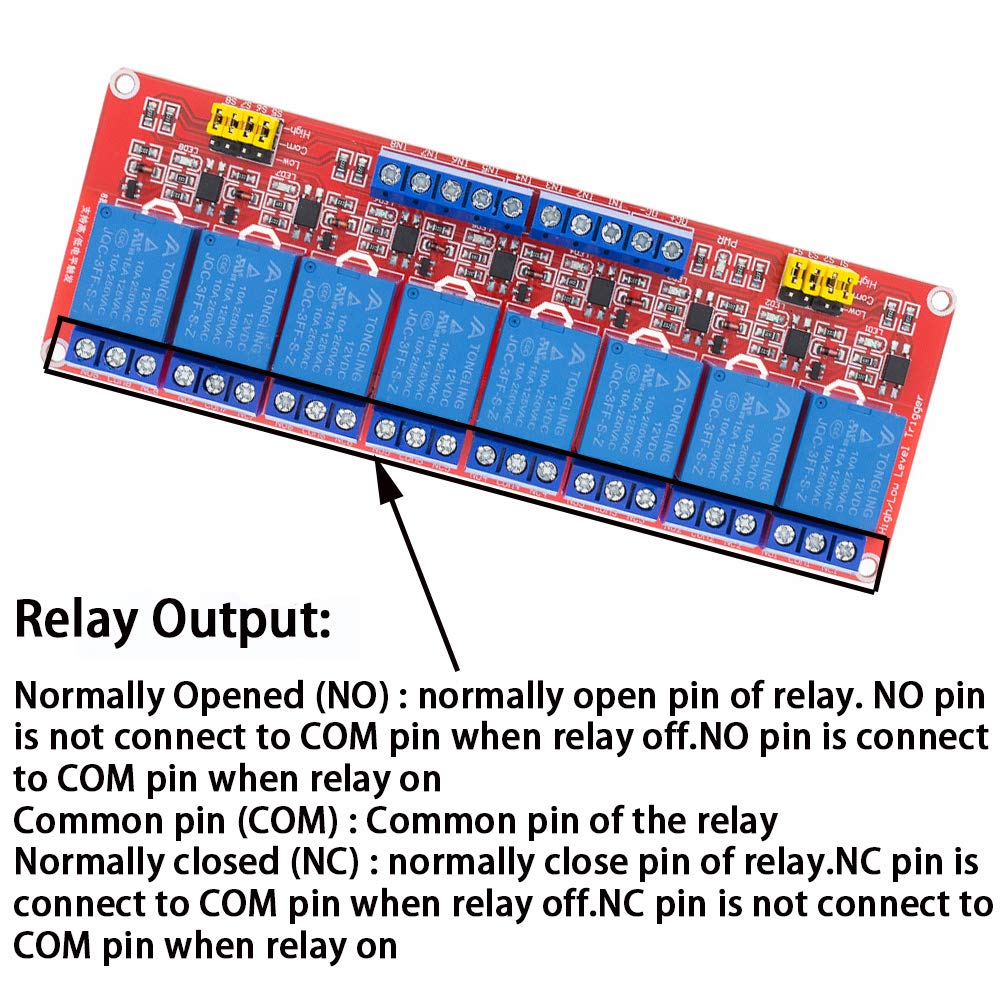

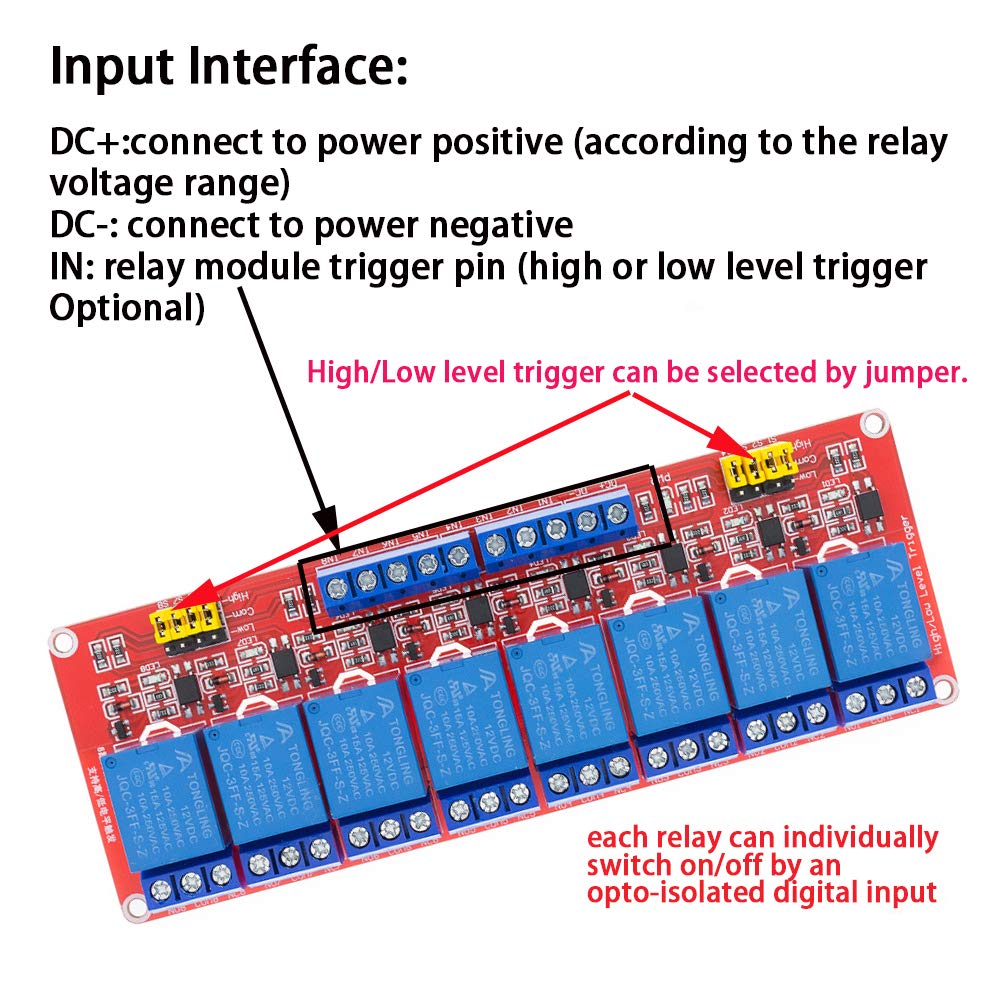

The relay comes with 8(single) channel 12V activation relay, ready to control 250VAC at 10A. Extra isolation with opto-coupler at the front end of control, and the activation logic for relay is configureable via a mini jumper. Technical Specifications: Channel: 8 channel Working Voltage: DC 12V Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC Quiescent Current: 5mA Maximum Current: 80mA Trigger Current: 2 - 5mA Trigger Voltage(LOW): 0 - 4V Trigger Voltage(HIGH): 4.5 - 12V Insulation resistance: 100MO (500VDC) Action time (under rated voltage): less than 10ms Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red) User friendly interface design. All interfaces can be connected directly via terminal wiring leads. Module Size: 141.5mmX50mmX18.5mm /5.57X1.97X0.73inch(L*W*H) Input Interface: DC+:connect to power positive (according to the relay voltage range) DC-: connect to power negative IN: relay module trigger pin (high or low level trigger Optional) Relay Output: Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on; Common pin (COM) : Common pin of the relay; Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on; High/Low Level Trigger: 1. Low level trigger when jumper and L short circuit; 2. High level trigger when jumper and H short circuit. Package includes: 1 x Eight Channel 12V Relay Module with Optocoupler Module
