Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (5V Relay 8 Channel)

Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (5V Relay 8 Channel)

$13.28
Regular price ~~$18.97~~

Wishlist

Vendor: Anmbest

Type: Relays

Sku: WBIASB08RS9LRH2

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Anmbest Relay Module With Optocoupler High/Low Level Trigger For Arduino (5V Relay 8 Channel)

$13.28

Description

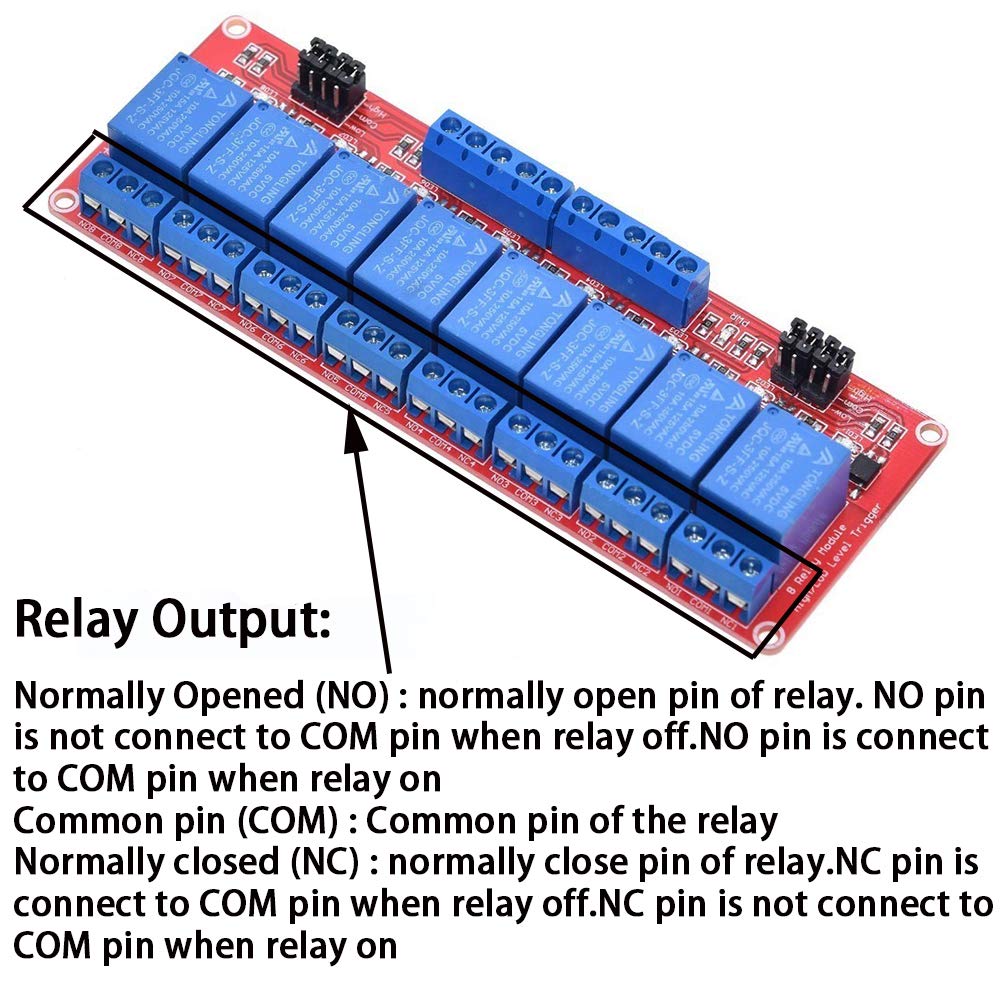

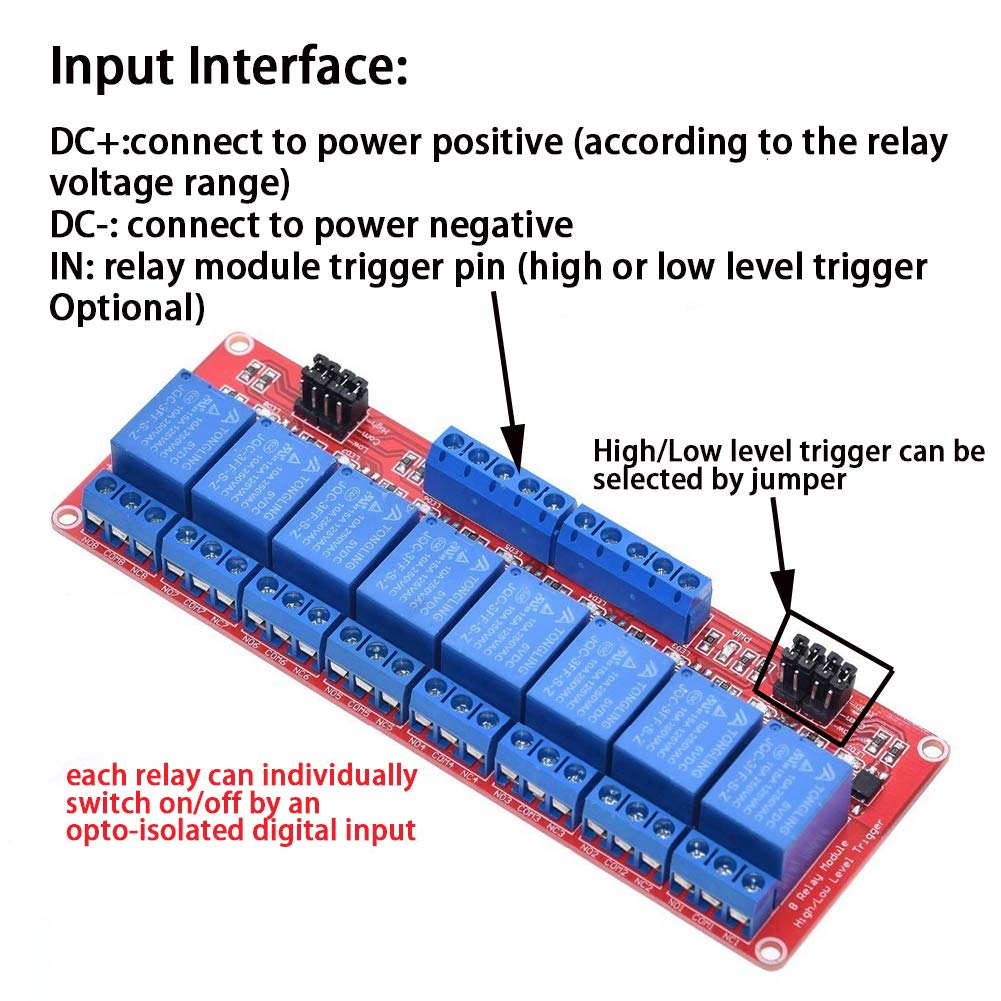

The relay comes with 8(single) channel 5V activation relay, ready to control 250VAC at 10A. Extra isolation with opto-coupler at the front end of control, and the activation logic for relay is configureable via a mini jumper. Technical Specifications: Channel: 8 channel Working Voltage: DC 5V Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC Quiescent Current: 5mA Maximum Current: 190mA Trigger Current: 2 - 5mA Trigger Voltage(LOW): 0 - 1.5V Trigger Voltage(HIGH): 2.5 - 5V Insulation resistance: 100MO (500VDC) Action time (under rated voltage): less than 10ms Release time (under rated voltage): less than 5ms Power indicator (green), relay status indicator (red) User friendly interface design. All interfaces can be connected directly via terminal wiring leads. Module Size: 141.5mmX50mmX18.5mm /5.57X1.97X0.73inch(L*W*H) Input Interface: DC+:connect to power positive (according to the relay voltage range) DC-: connect to power negative IN: relay module trigger pin (high or low level trigger Optional) Relay Output: Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on; Common pin (COM) : Common pin of the relay; Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on; High/Low Level Trigger: 1. Low level trigger when jumper and L short circuit; 2. High level trigger when jumper and H short circuit. Package includes: 1 x Eight Channel 5V Relay Module with Optocoupler Module

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the maximum load capacity of the ANMBEST Relay Module? A: The ANMBEST Relay Module can handle a maximum load of 10A at 250VAC, 15A at 125VAC, and 10A at 30VDC.
Q: How does the high/low level trigger work on this relay module? A: The relay module features a selectable high/low level trigger option, which can be configured using a jumper. When the jumper is set to 'L', it operates with a low-level trigger, while setting it to 'H' enables a high-level trigger.
Q: Is the ANMBEST Relay Module compatible with Arduino? A: Yes, the ANMBEST Relay Module is designed to be compatible with various microcontrollers including Arduino, AVR, PIC, ARM, and DSP, making it easy to integrate into your projects.
Q: What safety features does this relay module include? A: The relay module is equipped with optical coupling isolation for reliable triggering and a fault-tolerant design that ensures the relay does not activate if the control line is broken.
Q: What are the dimensions of the ANMBEST Relay Module? A: The ANMBEST Relay Module measures 141.5mm in length, 50mm in width, and 18.5mm in height (5.57 x 1.97 x 0.73 inches), making it compact and easy to install.
