What is the maximum current capacity of the Fastronix Relay Panel?

The Fastronix High Current Relay Panel is designed to handle up to 60 amps per relay, making it ideal for high current applications such as water pumps, cooling fans, and lights.

Are the sockets of the relay panel waterproof?

No, while the relays themselves are waterproof and designed with negative spike suppression, the sockets are not waterproof. It's important to consider this when installing in wet environments.

Can I use the relays individually or do they have to be ganged together?

The relays can be used both individually or ganged together in any configuration, allowing for flexible installation based on your specific needs.

What gauge wire do I need to use for connections?

The relay panel comes with 14 gauge wire leads for terminals 30, 87, and 87a, and 16 gauge for terminals 85 and 86. For currents exceeding 50 amps, it's recommended to shorten the leads per standard wire gauge/current tables or switch to 12 gauge wire.

Is the Fastronix Relay Panel suitable for automotive applications?

Yes, the Fastronix High Current Relay Panel is well-suited for automotive applications, providing reliable control for devices such as fuel pumps, lights, and cooling fans, thanks to its robust design and high current capability.

Fastronix High Current 40/60A Relay Panel With Interlocking Sockets

$38.59
Regular price ~~$55.13~~

Wishlist

Vendor: Fastronix Solutions

Type: Relays

Sku: WBCARB011H0MSPQ

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

⚠️ California Proposition 65 Warning :
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, visit www.P65Warnings.ca.gov.

Guarantee safe checkout

Fastronix High Current 40/60A Relay Panel With Interlocking Sockets

$38.59

Description

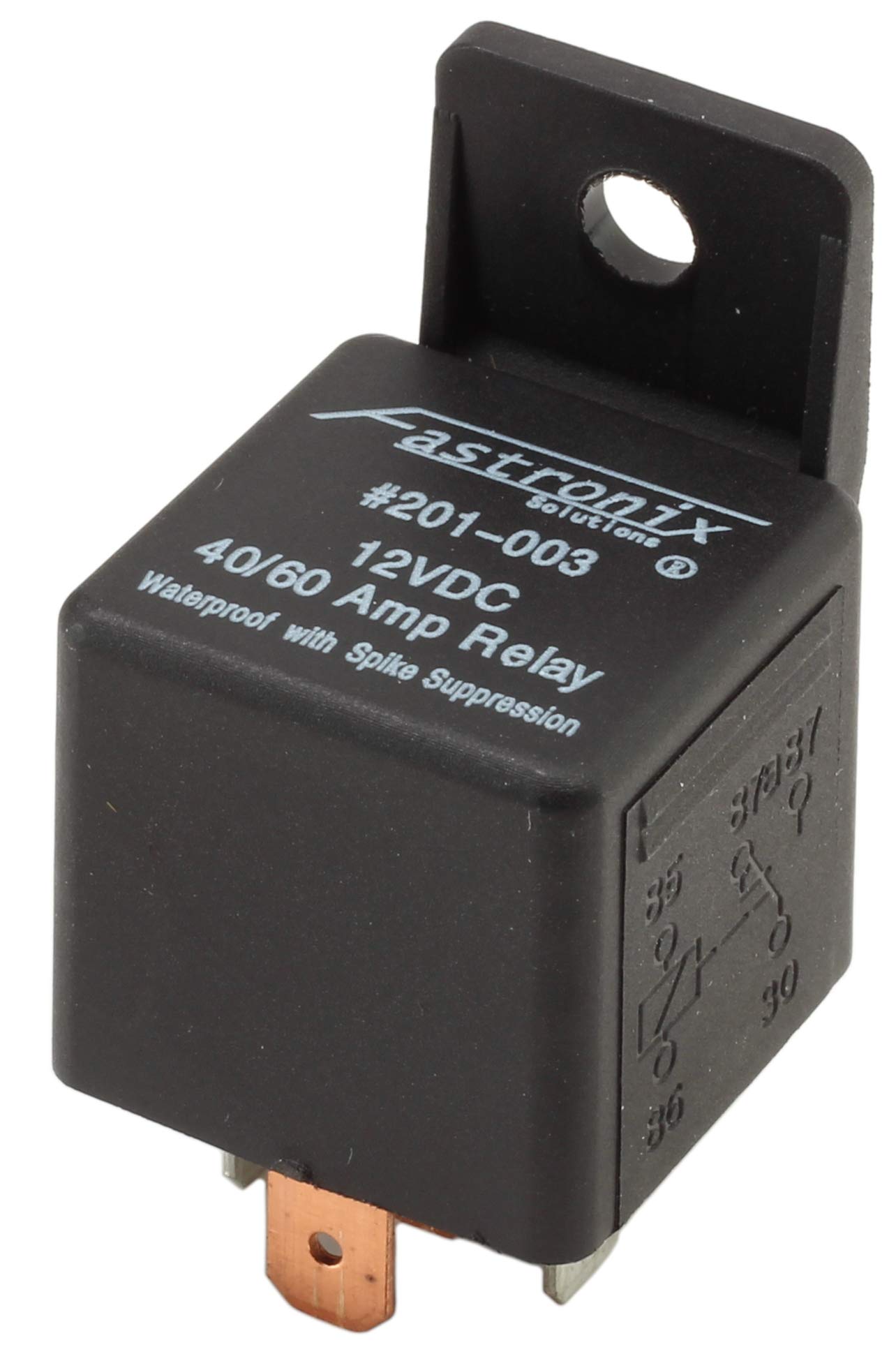

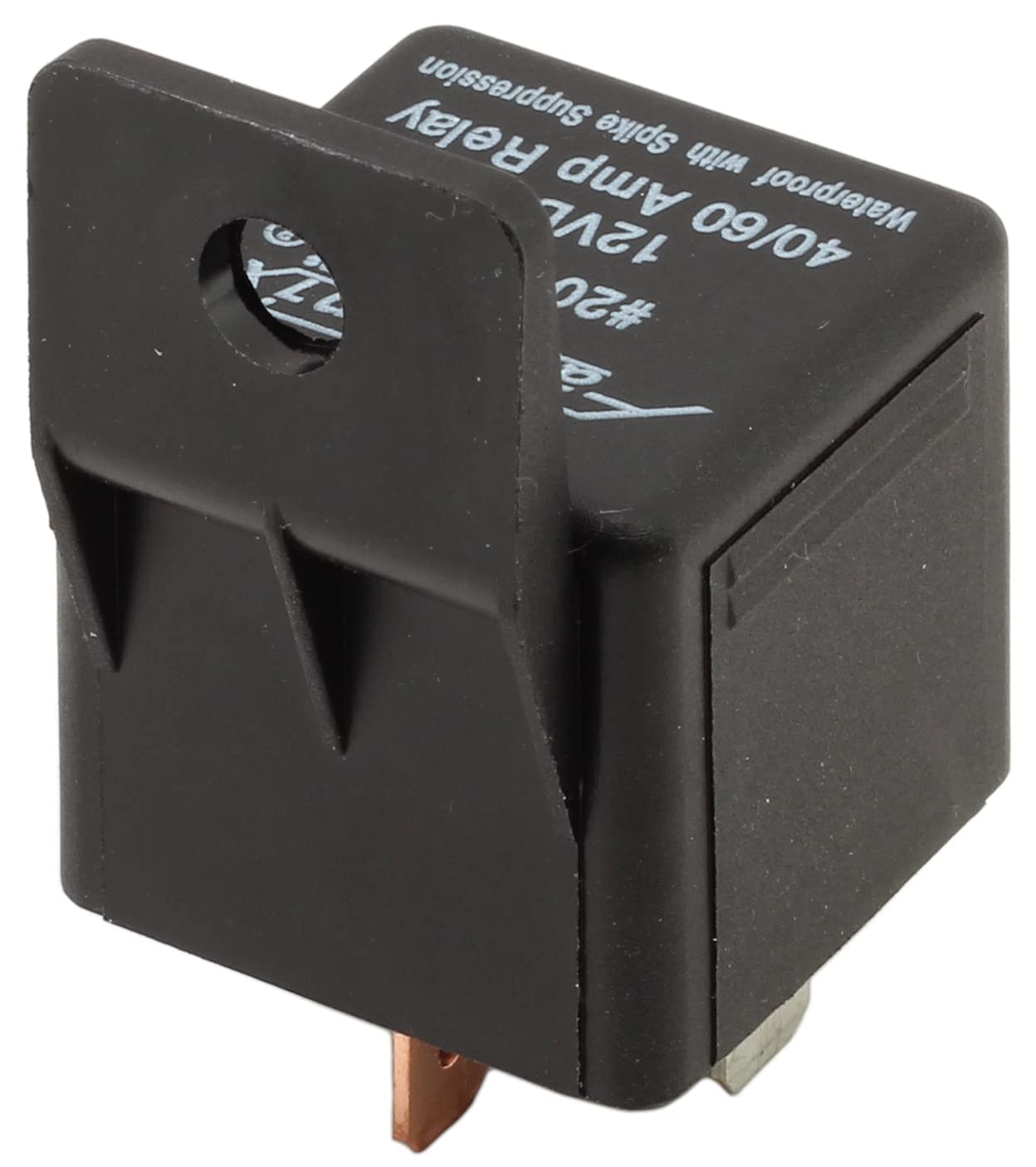

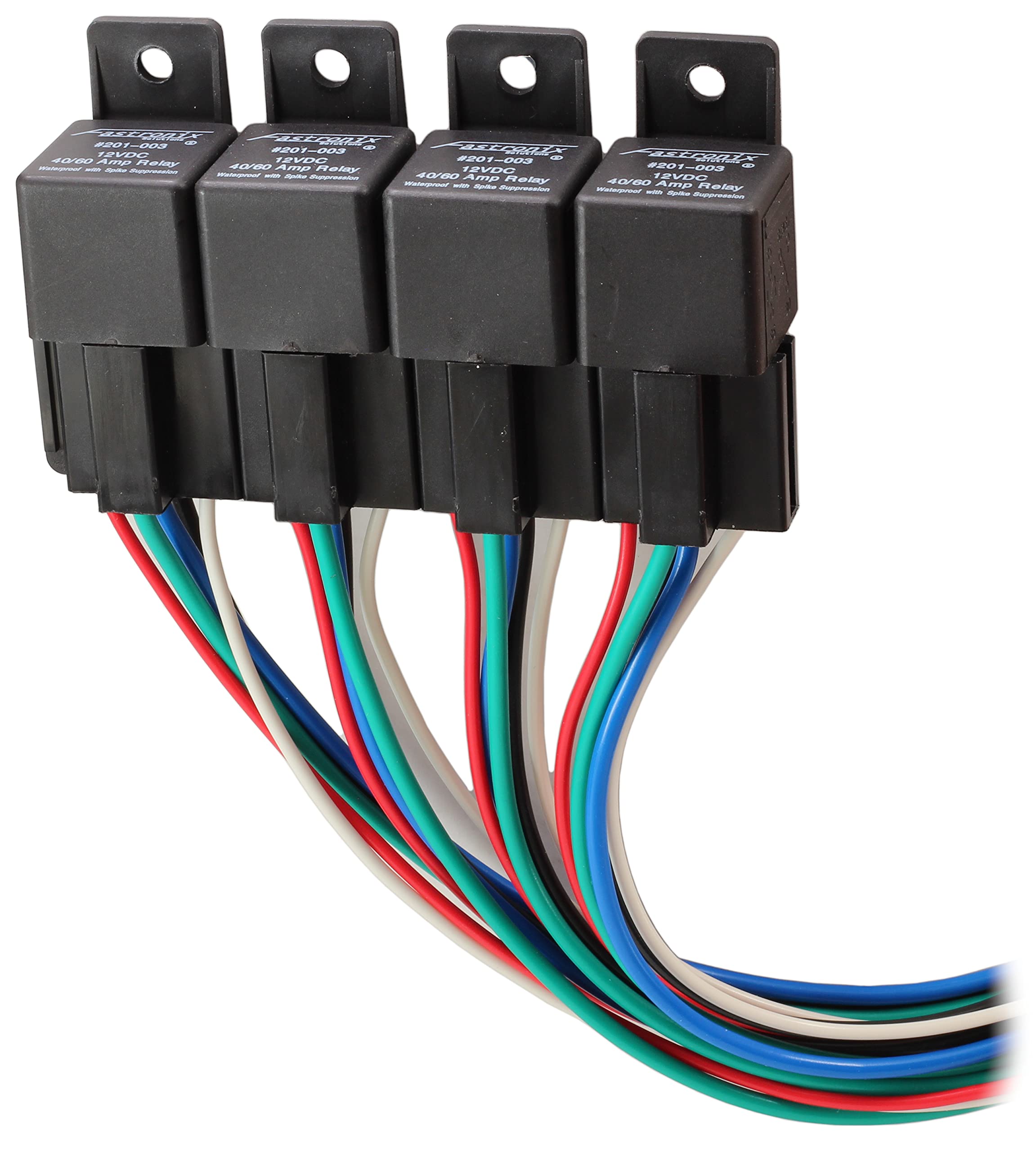

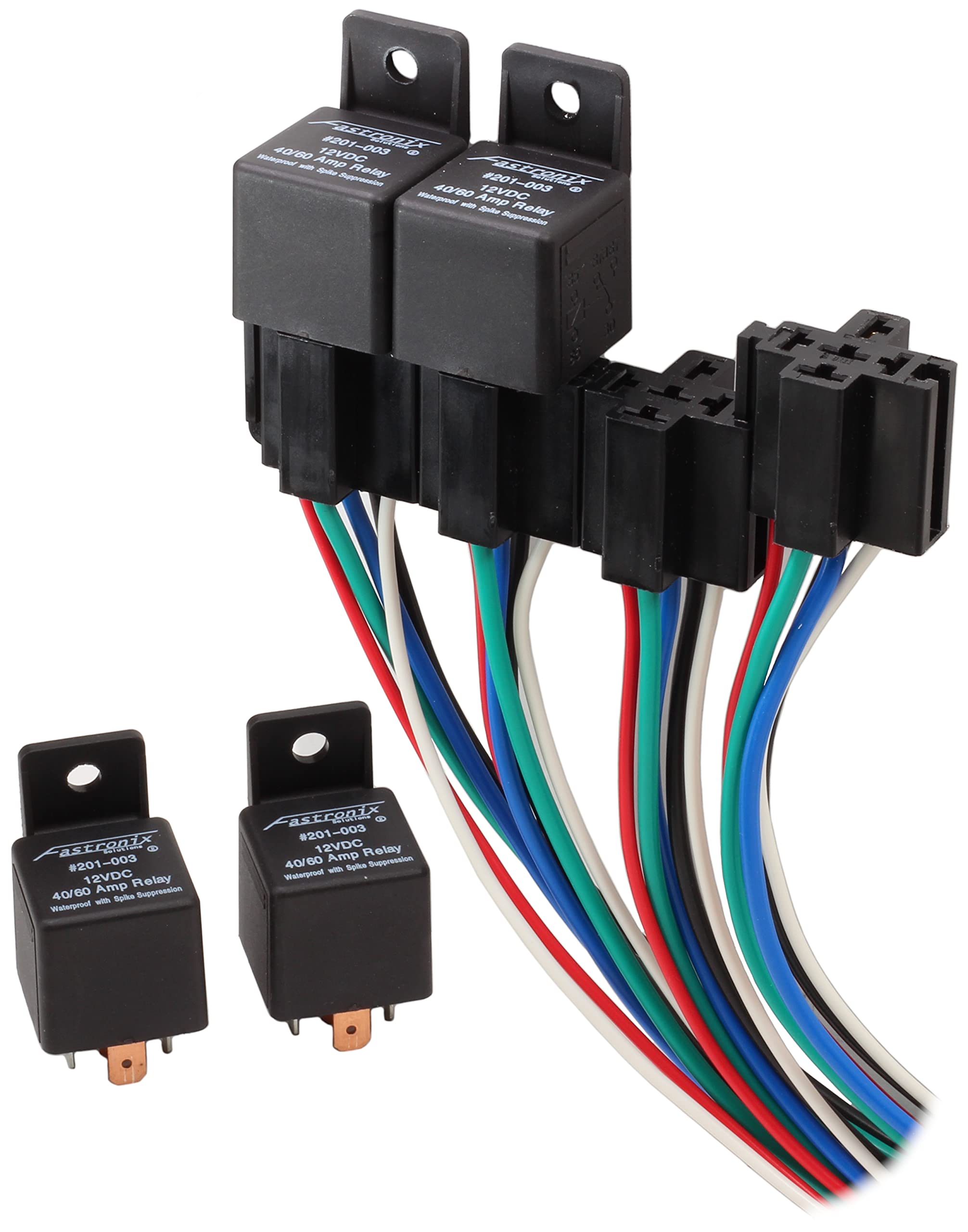

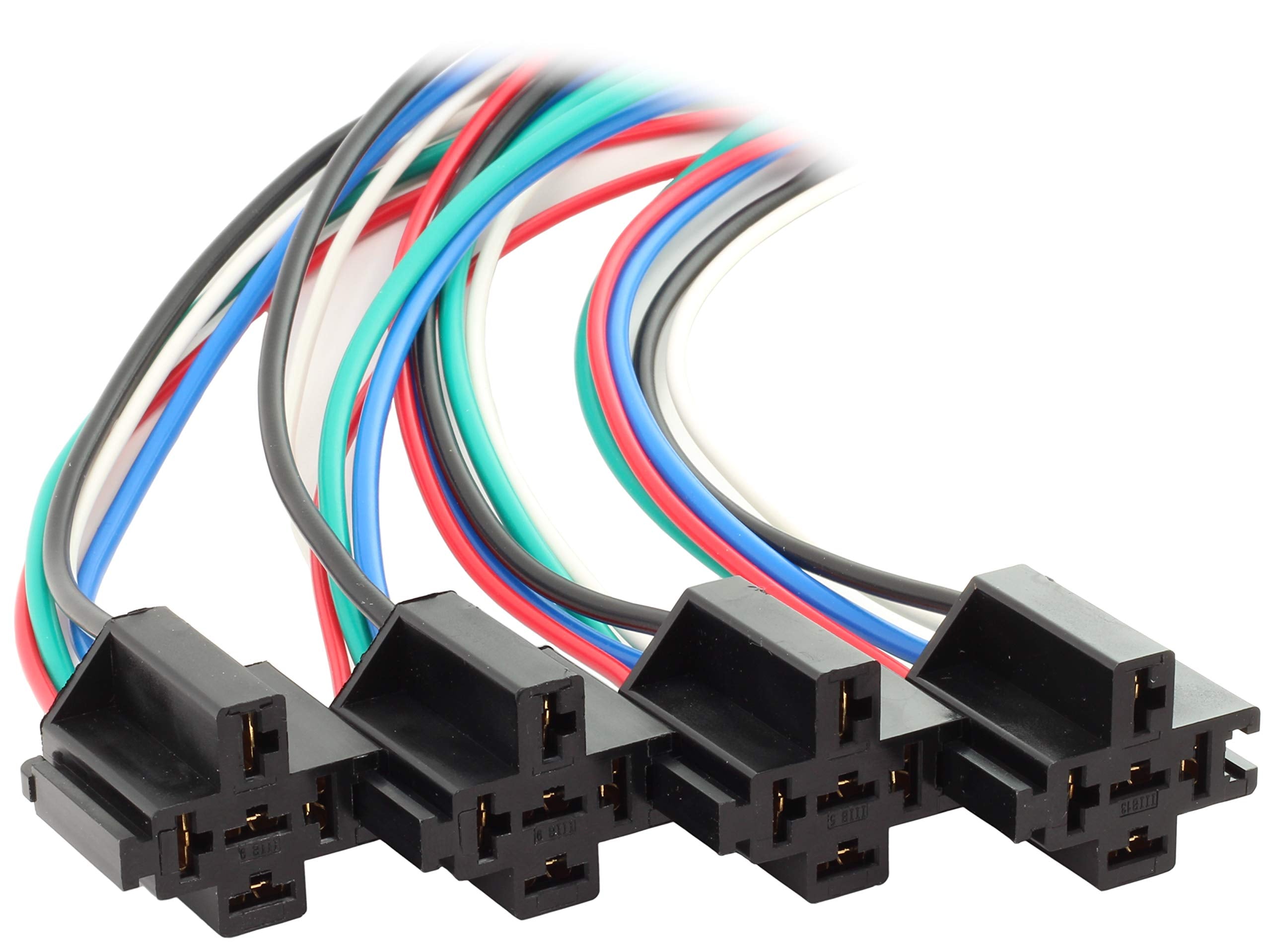

This Four Bosch Style Relay And Socket Panel Can Be Used For Switching Your High Current Water Pump, Cooling Fans, Fuel Pump And Lights. Each 40/60 Amp Relay Features Negative Spike Suppression, Its Own Pre-Wired Socket For Easy Wiring. Relays Can Be Separated And Used Individually Or Ganged Together In Any Configuration. Note: Only Relays Are Waterproof, The Sockets Are Not Waterproof. In Situations Where The Current Through The Relay Is Greater Than 50 Amps, The 14 Gauge Wire Leads Should Be Shortened Per Standard Wire Gauge/Current Tables Or Replaced With 12 Gauge Wire.

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the maximum current capacity of the Fastronix Relay Panel? A: The Fastronix High Current Relay Panel is designed to handle up to 60 amps per relay, making it ideal for high current applications such as water pumps, cooling fans, and lights.
Q: Are the sockets of the relay panel waterproof? A: No, while the relays themselves are waterproof and designed with negative spike suppression, the sockets are not waterproof. It's important to consider this when installing in wet environments.
Q: Can I use the relays individually or do they have to be ganged together? A: The relays can be used both individually or ganged together in any configuration, allowing for flexible installation based on your specific needs.
Q: What gauge wire do I need to use for connections? A: The relay panel comes with 14 gauge wire leads for terminals 30, 87, and 87a, and 16 gauge for terminals 85 and 86. For currents exceeding 50 amps, it's recommended to shorten the leads per standard wire gauge/current tables or switch to 12 gauge wire.
Q: Is the Fastronix Relay Panel suitable for automotive applications? A: Yes, the Fastronix High Current Relay Panel is well-suited for automotive applications, providing reliable control for devices such as fuel pumps, lights, and cooling fans, thanks to its robust design and high current capability.
