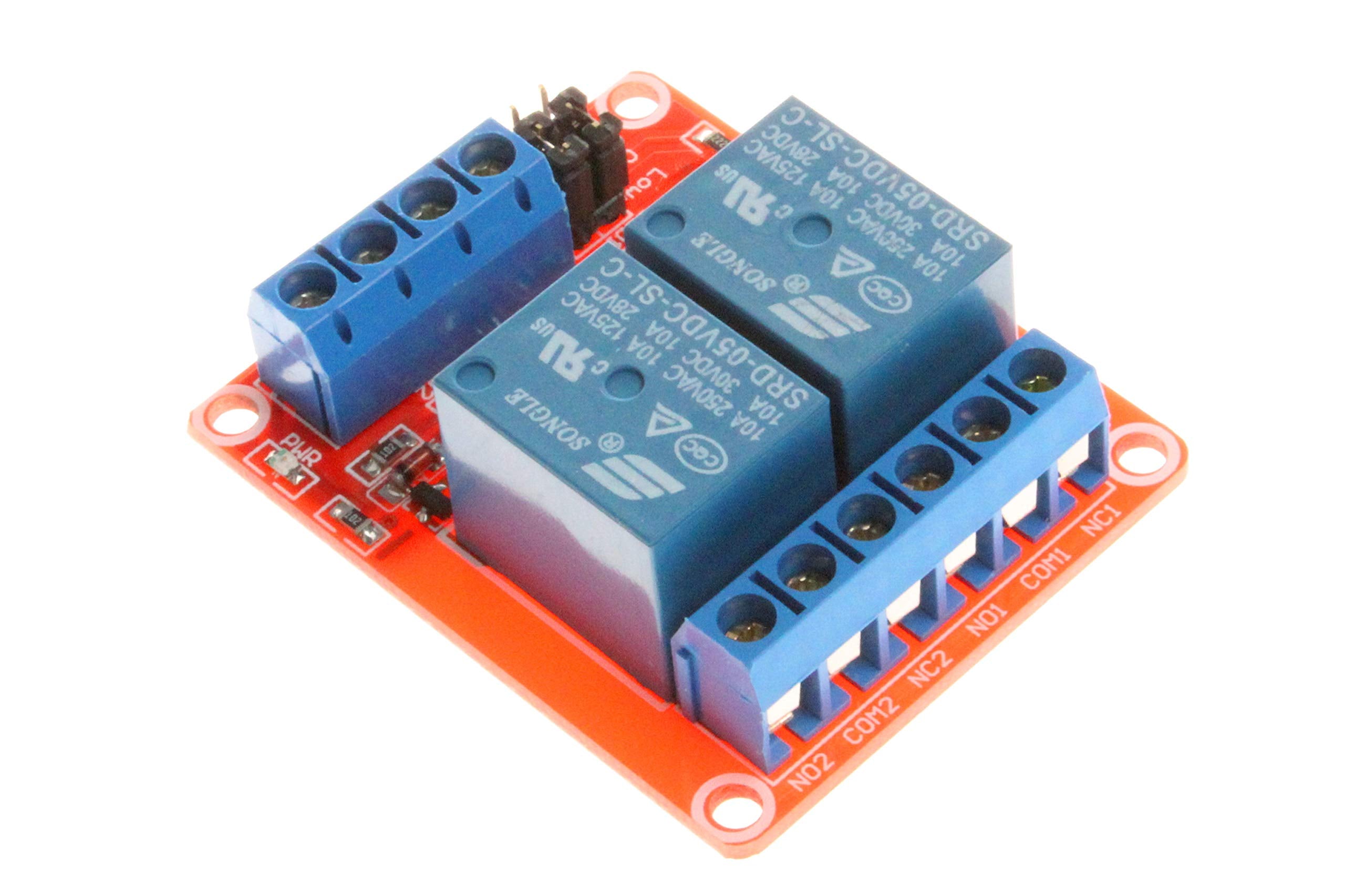

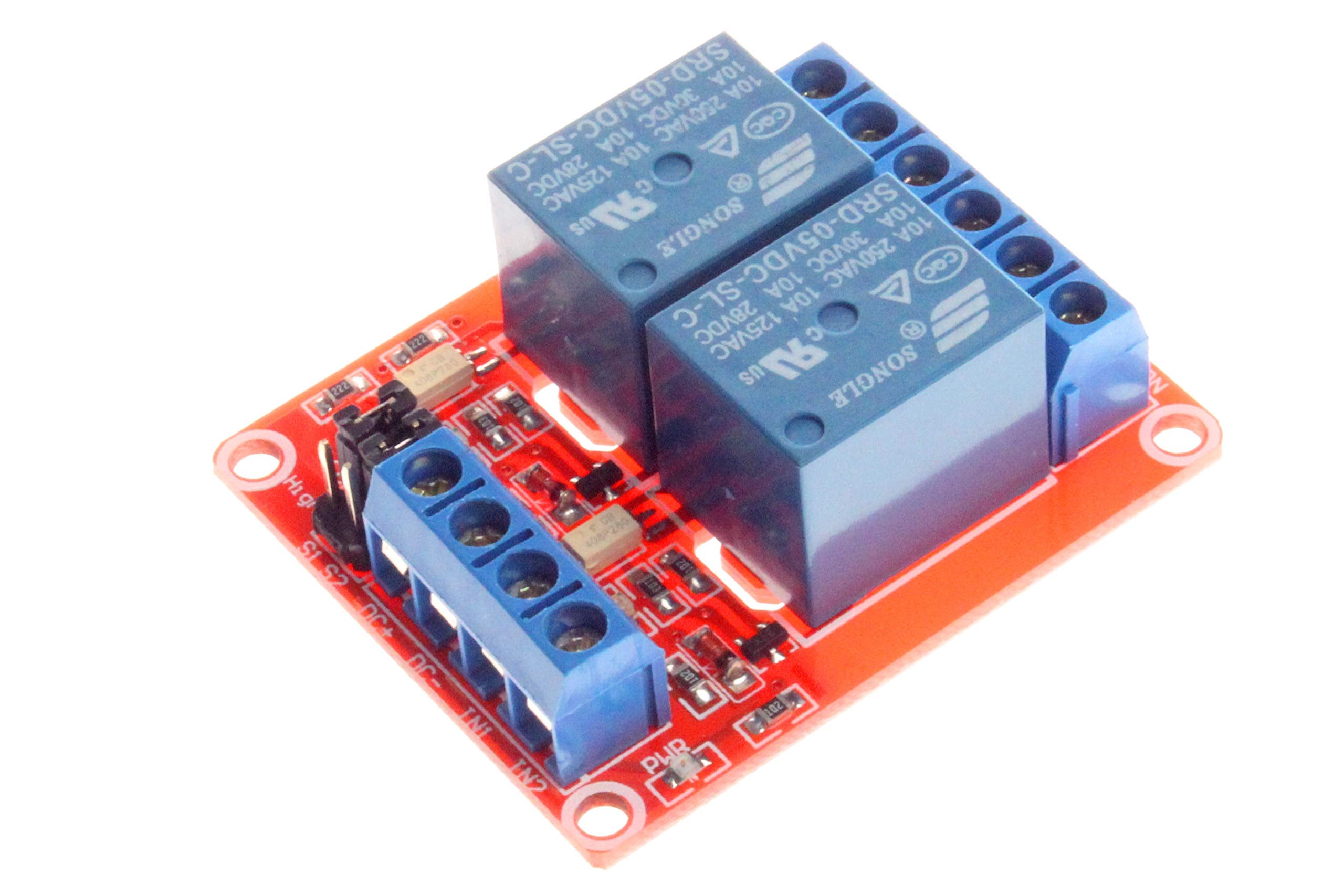

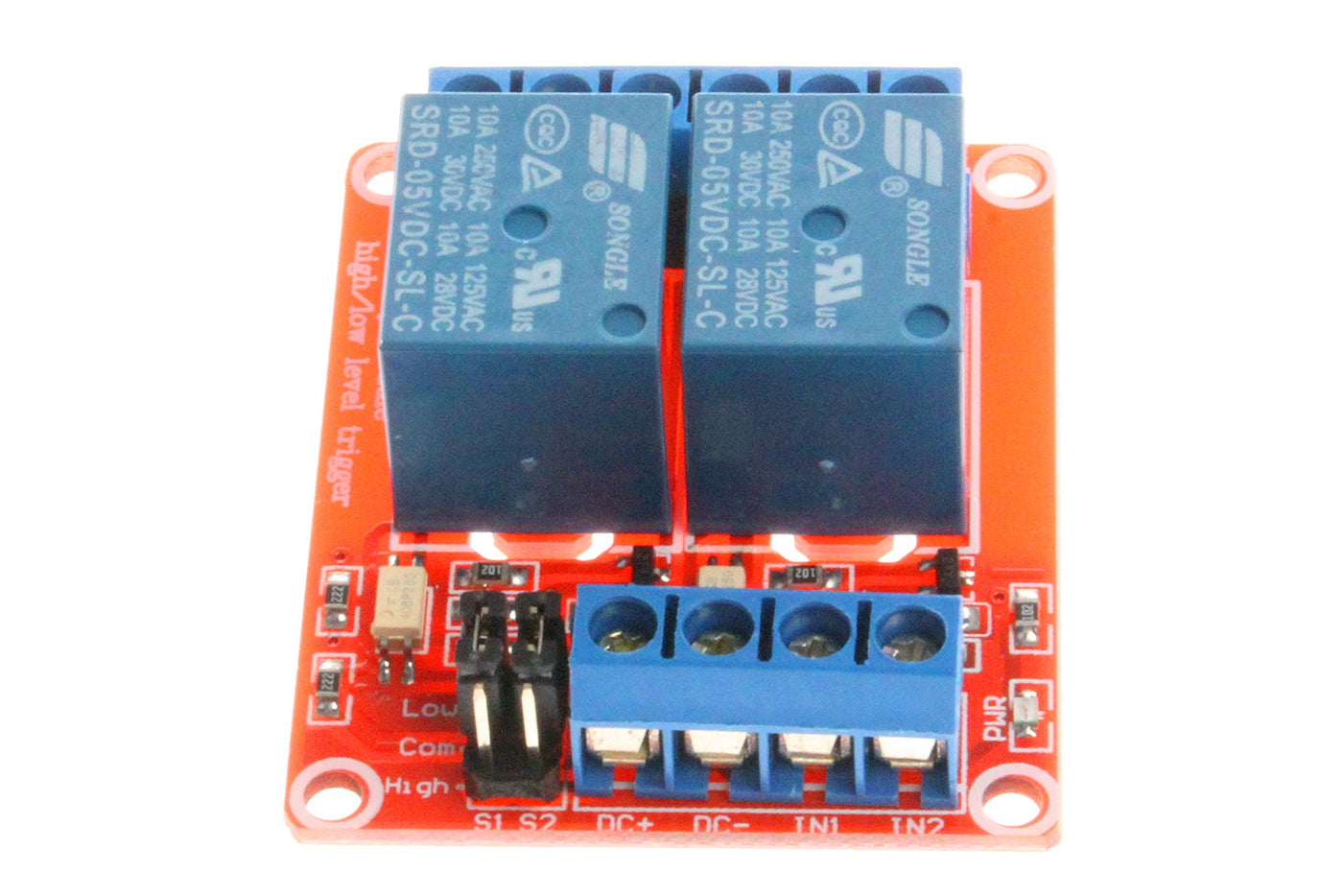

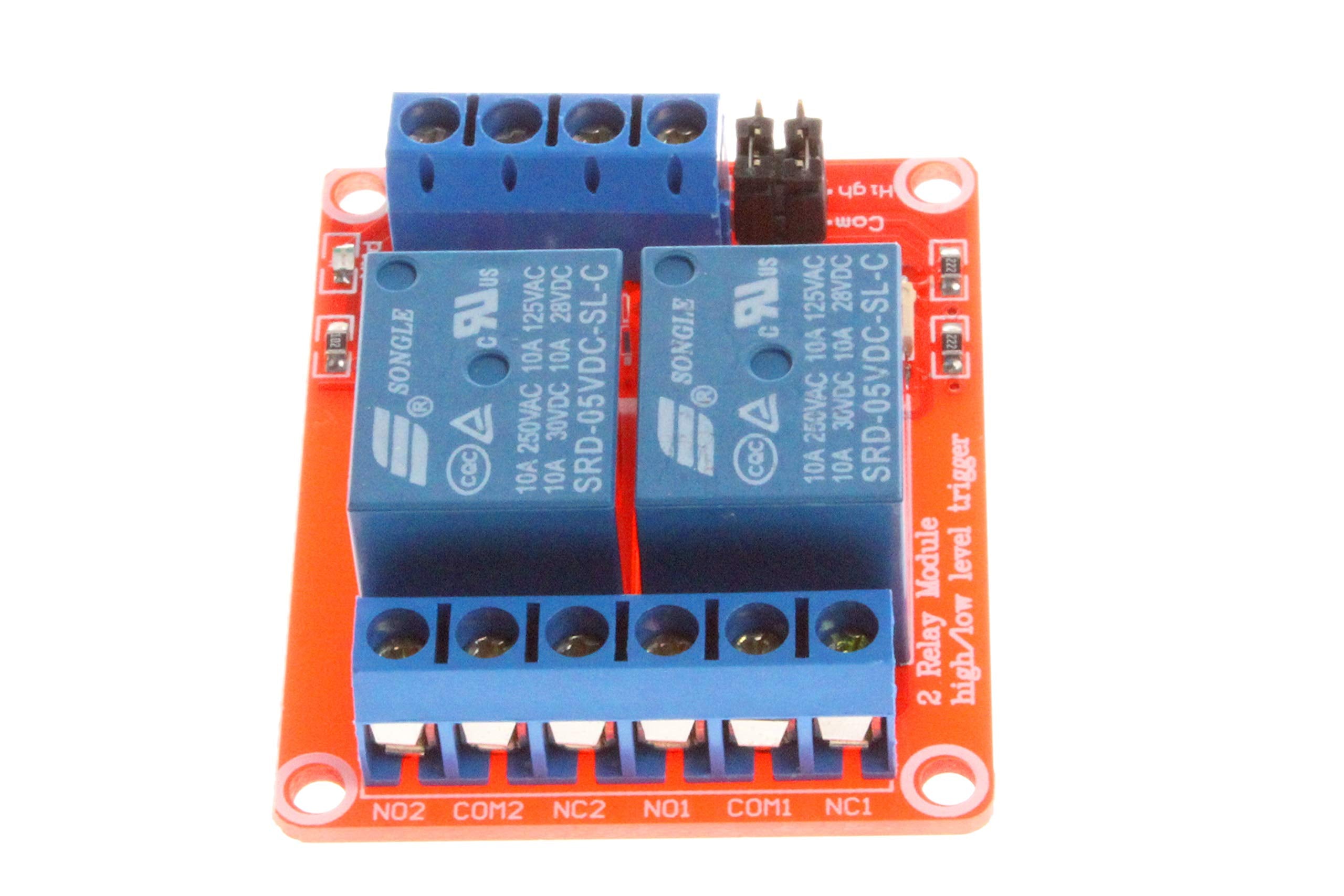

Noyito 9V 2-Channel Relay Module High Low Level Trigger With Optocoupler Isolation Relay Load Ac 0-250V 10A Dc 0-30V 10A Circuit
No reviews
$8.22
Regular price
$11.74
-29%
Couldn't load pickup availability
Vendor: Noyito
Type: Relays
Sku: WBCARB07HRD8793
Available: Available
Shipping information
- No EU import duties. - Ships within 3-5 business days. (USA) - Ships with 8-12 business days. (International)
⚠️ California Proposition 65 Warning : Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
Feature: Module Size: 50*41*18.5Mm / 2 1.6 0.7(L* W * H) With 4 Fixed Bolt Holes, Diameter 3.1Mm, Spacing 44.5*35.5Mm High And Low Level Trigger Selection: Trigger Current Is 2-4Ma,. 1. S1 First Channel Relay High Or Low Level Trigger Selection; 2. S2 Second Channel Relay High Or Low Level Trigger Selection; 3. Com And Low In Short Circuit, The Relay Is Low Level Trigger, Com And High End In Short Circuit, The Relay Is High Level Trigger. Input Interface: 1. Dc+: To Connect The Power Positive 2. Dc-: To Connect The Power Negative 3. In1: First Channel Signal Trigger End, Can Set The High Or Low Level Control Relay 4. In2: Second Channel Trigger End, Can Set The High Or Low Level Control Relay Output Interface: 1. No1: First Channel Relay Normally Open Interface, Suspend The Relay Before Pulling, Then Short Connect With Com1 2. Com1: First Channel Relay Common Interface 3. Nc1: First Channel Relay Normally Close Interface, Short Connect The Relay With Com1 Before Pulling, Then Suspend 4. No2: Second Channel Relay Normally Open Relay Interface, Suspend The Relay Before Pulling, Then Short Connect With Com2 5. Com2: Second Channel Relay Common Interface 6. Nc2: Second Channel Relay Normally Close Interface, Short Connect The Relay With Com2 Before Pulling, Then Suspend Package Inlcuded: 1Pcs Noyito 2-Channel Relay Module
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the trigger current for the NOYITO 9V 2-Channel Relay Module?A: The NOYITO 9V 2-Channel Relay Module has a trigger current of 2-4mA, allowing for precise control of the relay operation.
Q: Can I use this relay module with different voltage levels?A: Yes, the NOYITO relay module supports high or low level triggers and can work with DC voltage levels of 9V, 12V, and 24V, providing flexibility for various applications.
Q: What are the dimensions of the NOYITO relay module?A: The module size of the NOYITO 2-Channel Relay is 50mm x 41mm x 18.5mm (2" x 1.6" x 0.7"), making it compact and easy to integrate into different projects.
Q: How does the fault-tolerant design work in this relay module?A: The NOYITO relay module features a fault-tolerant design that ensures the relay will not activate if the control line is broken, enhancing safety and reliability in your applications.
Q: What is included in the package when I purchase this relay module?A: The package includes one NOYITO 2-Channel Relay Module, which is ready for use in your electronic projects or automation systems.
