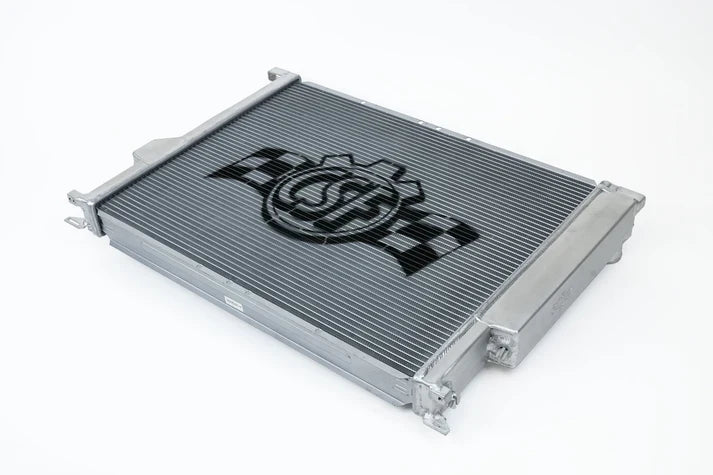

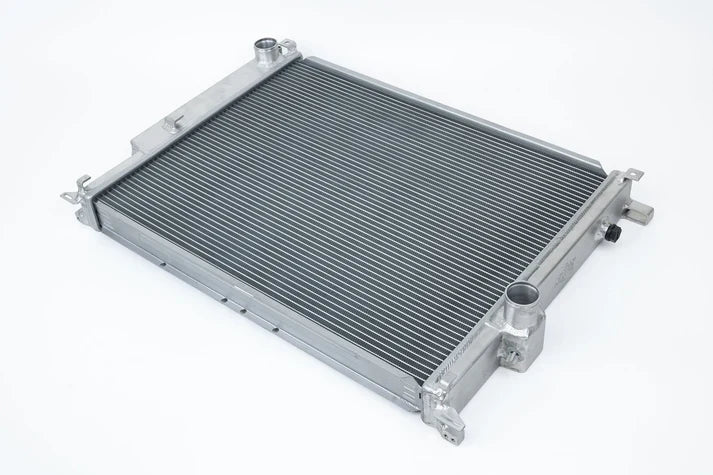

CSF High-Performance All-Aluminum Radiator BMW S54 Swap E36
$599.00

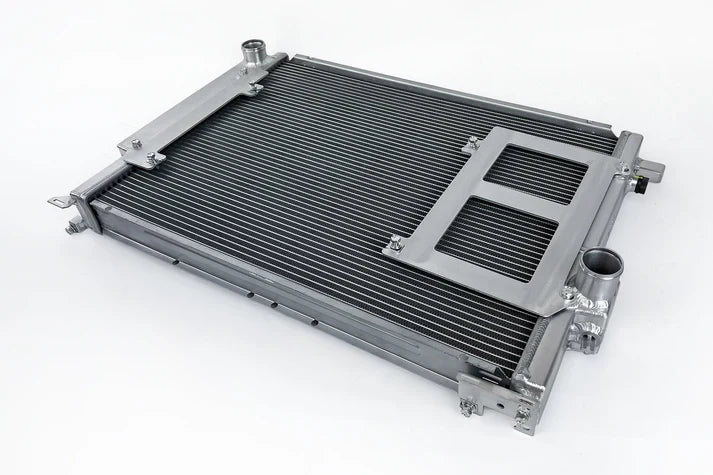

At first glance the #7211 looks very similar to CSF's E36 M3 Radiator (#3054). While the overall shape is very similar, there are several key features that make the new swap radiator special. Because the S54 requires a much more robust oil cooling system than the E36's S52/S50, CSF made special provisions to fit two different race spec oil coolers. Please note, this radiator and oil cooler combination can be used for S50 & S52 Swaps as well. To do this, the height of the radiator was reduced slightly so the CSF race spec coolers can fit it in a factory style location. The radiator includes a custom designed oil cooler mounting bracket which has provisions to fit both oil coolers (CSF #8032 & #8240). In addition, a custom designed radiator cover plate allows for an optimized coolant overflow line placement which is concealed for an OEM+ appearance.
CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.
The 2-Row 42mm aluminum core offers the largest coolant capacity possible and incredible heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. All mounting brackets are CNC Machined for precise fitment. The cooling inlet/outlet connections use E36 OEM
Features and Benefits
- 2-Row - 42mm Ultra-High-Performance Core
- CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Smooth Satin Finish
- All-Aluminum Race Style Drain Plug
- Includes 2 top covers (black and satin) to cover the top plate for a clean OEM+ look
- Includes fan brackets for 16 inch SPAL Fan (SPAL #30100400 - not included)
- Includes Oil Cooler Mounting Brackets that fit both the CSF #8240 & CSF #8032
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Fitment:
| Year Range | Make | Chassis Code | Model | Trim | Engine / Trans / Etc | Notes |
|---|---|---|---|---|---|---|
| 1992-1995 | BMW | E36 | 318i | - | 1.8L L4 | For BMW S54 Engine Swap |
| 1996-1999 | BMW | E36 | 318i | - | 1.9L L4 | For BMW S54 Engine Swap |
| 1992-1995 | BMW | E36 | 318is | - | 1.8L L4 | For BMW S54 Engine Swap |
| 1996-1999 | BMW | E36 | 318is | - | 1.9L L4 | For BMW S54 Engine Swap |
| 1995 | BMW | E36 | 318ti | - | 1.8L L4 | For BMW S54 Engine Swap |
| 1996-1999 | BMW | E36 | 318ti | - | 1.9L L4 | For BMW S54 Engine Swap |
| 1992-1995 | BMW | E36 | 320i | - | 2L L6 | For BMW S54 Engine Swap |
| 2001-2005 | BMW | E46 | 320i | - | 2.2L L6 | For BMW S54 Engine Swap |
| 2000 | BMW | E46 | 323Ci | - | 2.5L L6 | For BMW S54 Engine Swap |
| 1998-2000 | BMW | E36 | 323i | - | 2.5L L6 | For BMW S54 Engine Swap |
| 1999 | BMW | E46 | 323i | - | 2.5L L6 | For BMW S54 Engine Swap |
| 1998-1999 | BMW | E36 | 323is | - | 2.5L L6 | For BMW S54 Engine Swap |
| 2001-2006 | BMW | E46 | 325Ci | - | 2.5L L6 | For BMW S54 Engine Swap |
| 1992-1995 | BMW | E36 | 325i | - | 2.5L L6 | For BMW S54 Engine Swap |
| 2001-2005 | BMW | E46 | 325i | - | 2.5L L6 | For BMW S54 Engine Swap |
| 1992-1995 | BMW | E36 | 325is | - | 2.5L L6 | For BMW S54 Engine Swap |
| 2001-2005 | BMW | E46 | 325xi | - | 2.5L L6 | For BMW S54 Engine Swap |
| 2000 | BMW | E46 | 328Ci | - | 2.8L L6 | For BMW S54 Engine Swap |
| 1996-1998 | BMW | E36 | 328i | - | 2.8L L6 | For BMW S54 Engine Swap |
| 1999-2000 | BMW | E46 | 328i | - | 2.8L L6 | For BMW S54 Engine Swap |
| 1996-1999 | BMW | E36 | 328is | - | 2.8L L6 | For BMW S54 Engine Swap |
| 2005 | BMW | E46 | 330Ci | M | 3L L6 | For BMW S54 Engine Swap |
| 2001-2006 | BMW | E46 | 330Ci | - | 3L L6 | For BMW S54 Engine Swap |
| 2005 | BMW | E46 | 330i | M | 3L L6 | For BMW S54 Engine Swap |
| 2001-2005 | BMW | E46 | 330i | - | 3L L6 | For BMW S54 Engine Swap |
| 2001-2005 | BMW | E46 | 330xi | - | 3L L6 | For BMW S54 Engine Swap |
| 1995 | BMW | E36 | M3 | Lightweight | 3L L6 | For BMW S54 Engine Swap |
| 1994-1995 | BMW | E36 | M3 | - | 3L L6 | For BMW S54 Engine Swap |
| 1996-1999 | BMW | E36 | M3 | - | 3.2L L6 | For BMW S54 Engine Swap |
OEM Part Number:
-
*BMW E36 Engine Swap
