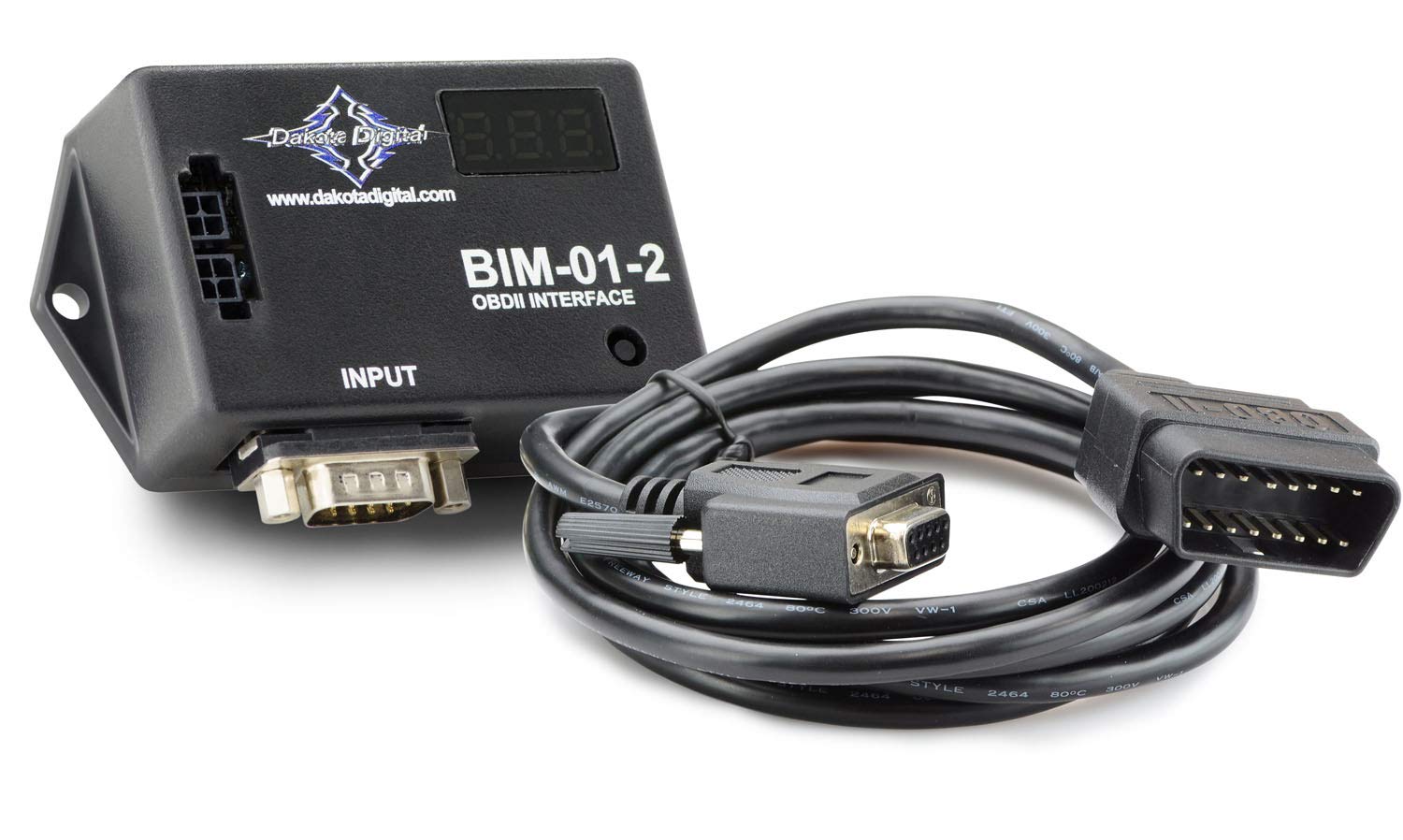

The BIM012 OBDII (J1850/CAN) Interface allows you to plug directly into the engine diagnostic port, extracting engine and transmission data from the vehicles computer (ECM). The BIM012 will collect and output the following information to Dakota Digital Instrument Systems *: Always available: Speed Tachometer Engine Temp Check Engine Indicator Vehicle specific: Intake Air Temp Transmission Temp Ambient Air Temp Gear Position Oil Pressure Please note: Due to the various factory and modified ECMs, additional data including (Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, and Gear Position) may be available, but will vary from application to application. We cannot guarantee the presence or accuracy of the Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, or Gear Position displays since this is a function of the ECM and matching OEM functional sensors. This product can provide a +/ 25 percent calibration to compensate for tire size or gear changes which have affected the speedometer output. *The BIM012 is designed to decode the information provided by the ECM through OBDII and supply this information to the VFD3 rev. G and VHX control box instrument systems only. Earlier control boxes (with an aluminum case) are not compatible with the BIM family of Expansion Modules. **The BIM012 is designed for J1850 and CAN OBD protocols only. Compatible with OBDII protocols SAE J1850 VPW, SAE J1850 PWM and ISO 15765 CAN 500k 11 bit identifiers that follow the SAE J1979 PID protocol.****GM Connect & Cruise packages do not transmit the gear position data, preventing the BIM012 from acquiring this information.
