What is the maximum switching capacity of the EPAuto relay harness?

The EPAuto relay harness has a maximum switching capacity of 40A at 14VDC for normally open (NO) contacts and 30A at 14VDC for normally closed (NC) contacts.

Can this relay harness be used for automotive applications?

Yes, the EPAuto relay harness is designed for automotive applications, making it suitable for various 12V systems in vehicles.

What is included in the 5 Pack of EPAuto relay harnesses?

The 5 Pack includes 5 relays and 5 relay sockets with wires, allowing for easy installation and connection in multiple applications.

What is the operating temperature range for the EPAuto relay harness?

The EPAuto relay harness operates effectively in a temperature range of -40°C to +125°C, ensuring reliability in extreme conditions.

How durable is the EPAuto relay harness in terms of mechanical and electrical operations?

The EPAuto relay harness is built for durability, with a mechanical endurance of 10,000,000 operations and an electrical endurance of 100,000 operations at a rate of 600 ops/h.

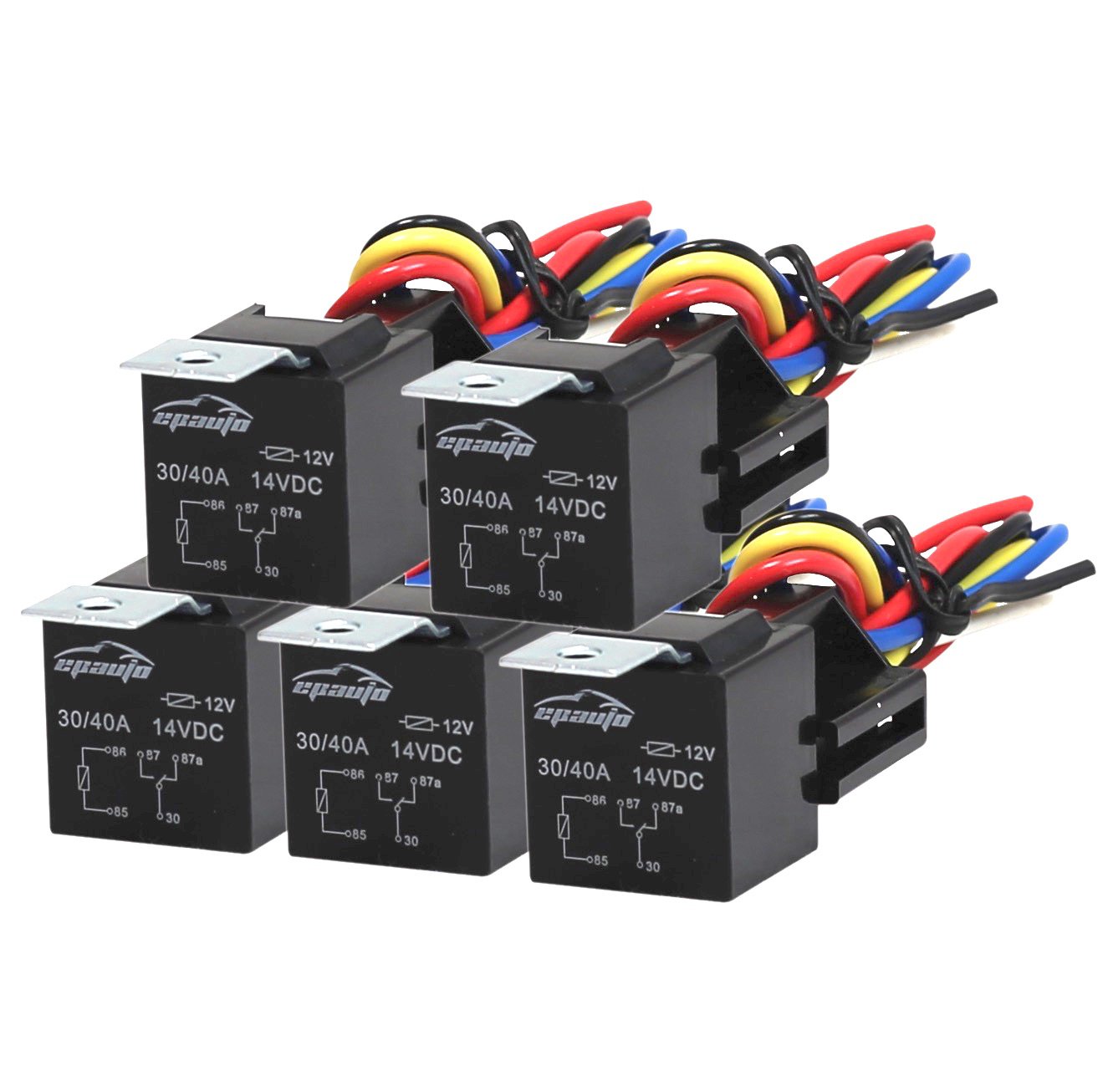

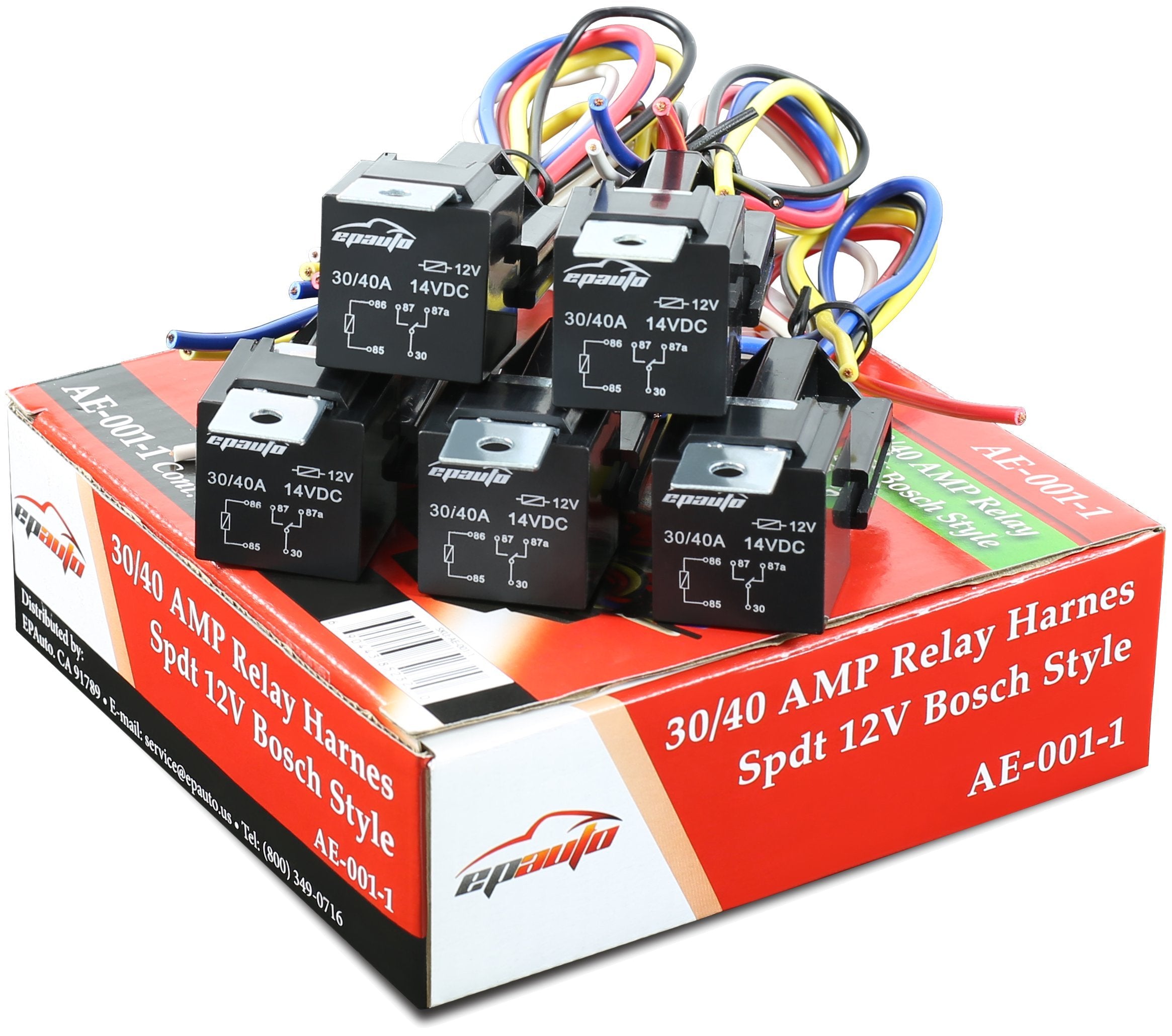

Epauto 30/40 Amp Relay Harness Spdt 12V, 5-Pin Spdt Bosch Style - 5 Pack

$20.72
Regular price ~~$29.60~~

Wishlist

Vendor: Epauto

Type: Relays

Sku: WBCARB017VDI0GY

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Epauto 30/40 Amp Relay Harness Spdt 12V, 5-Pin Spdt Bosch Style - 5 Pack

$20.72

Description

Contact Capacity: Normal Switching Capacity (Res.Load): - No 40A 14Vdc - Nc 30A 14Vdc Max. Switching Current: 40A Max. Switching Voltage: 30Vdc Max. Switching Power: 560W Characteristic Data: Initial Contact Resistance (At 6Vdc 1A): 50Mo Max. Operate Time (At Nominal Volt.): 10 Msec. Max. Release Time (At Nominal Volt.): 5 Msec Max. Initial Insulation Resistance: 100Mo Min. (Dc500V) Initial Dielectric Strength: - Between Open Contacts: Ac500V, 50/60 Hz 1Min. - Between Coil And Contact: Ac500V, 50/60 Hz 1Min. Vibration Resistance: - Functional: 10 ~ 55Hz At Double Amplitude Of 1.5 Mm - Destructive: 10 ~ 55Hz At Double Amplitude Of 1.5 Mm Shock Resistance: - Functional: 20G Min. - Destructive: 100G Min. Endurance (Operations): - Mechanical (At 7,200 Ops./H): 10,000,000 - Electrical (At 600 Ops./H): 100,000 Ambient Temperature: -40C ~ +125C (No Condensation)

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the maximum switching capacity of the EPAuto relay harness? A: The EPAuto relay harness has a maximum switching capacity of 40A at 14VDC for normally open (NO) contacts and 30A at 14VDC for normally closed (NC) contacts.
Q: Can this relay harness be used for automotive applications? A: Yes, the EPAuto relay harness is designed for automotive applications, making it suitable for various 12V systems in vehicles.
Q: What is included in the 5 Pack of EPAuto relay harnesses? A: The 5 Pack includes 5 relays and 5 relay sockets with wires, allowing for easy installation and connection in multiple applications.
Q: What is the operating temperature range for the EPAuto relay harness? A: The EPAuto relay harness operates effectively in a temperature range of -40°C to +125°C, ensuring reliability in extreme conditions.
Q: How durable is the EPAuto relay harness in terms of mechanical and electrical operations? A: The EPAuto relay harness is built for durability, with a mechanical endurance of 10,000,000 operations and an electrical endurance of 100,000 operations at a rate of 600 ops/h.
