What is the maximum switching capacity of the EPAuto Relay Harness?

The EPAuto Relay Harness has a maximum switching capacity of 40A at 14VDC for normally open (NO) contacts and 30A at 14VDC for normally closed (NC) contacts.

Is the EPAuto Relay Harness suitable for automotive applications?

Yes, the EPAuto Relay Harness is designed for automotive applications, providing a reliable solution for managing high-current loads in vehicles.

What are the dimensions of the relay harness package?

The EPAuto Relay Harness package includes four relays and four relay sockets, with each relay measuring approximately 5.75 inches in length and 1.75 inches in width.

What kind of wires are included with the EPAuto Relay Harness?

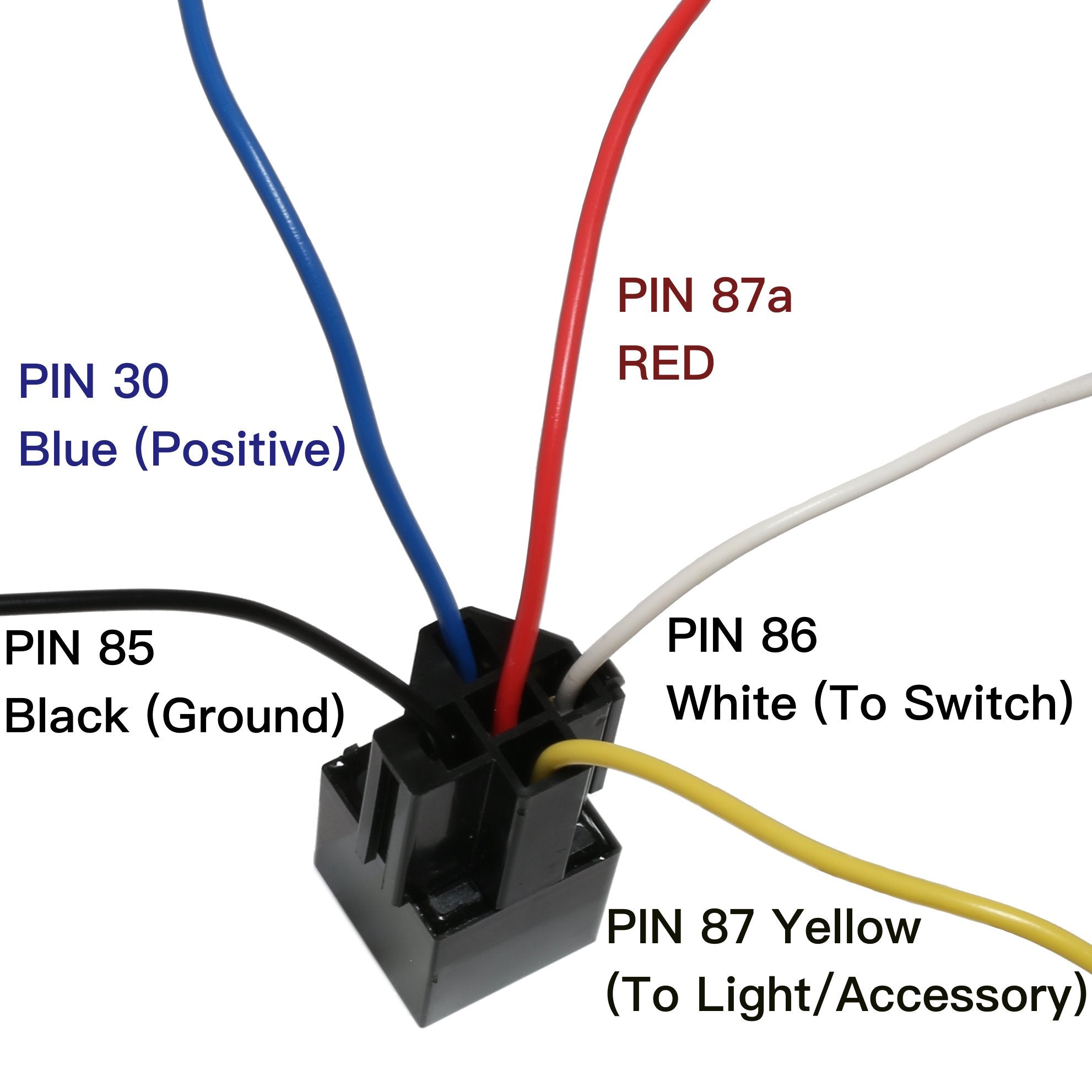

The EPAuto Relay Harness comes with heavy-duty UL listed 6-inch wires that include pigtail leads for the main contact, ensuring safe and reliable connections.

What is the endurance rating of the EPAuto Relay in terms of operations?

The EPAuto Relay is rated for up to 10 million mechanical operations at a rate of 7,200 operations per hour and 100,000 electrical operations at 600 operations per hour.

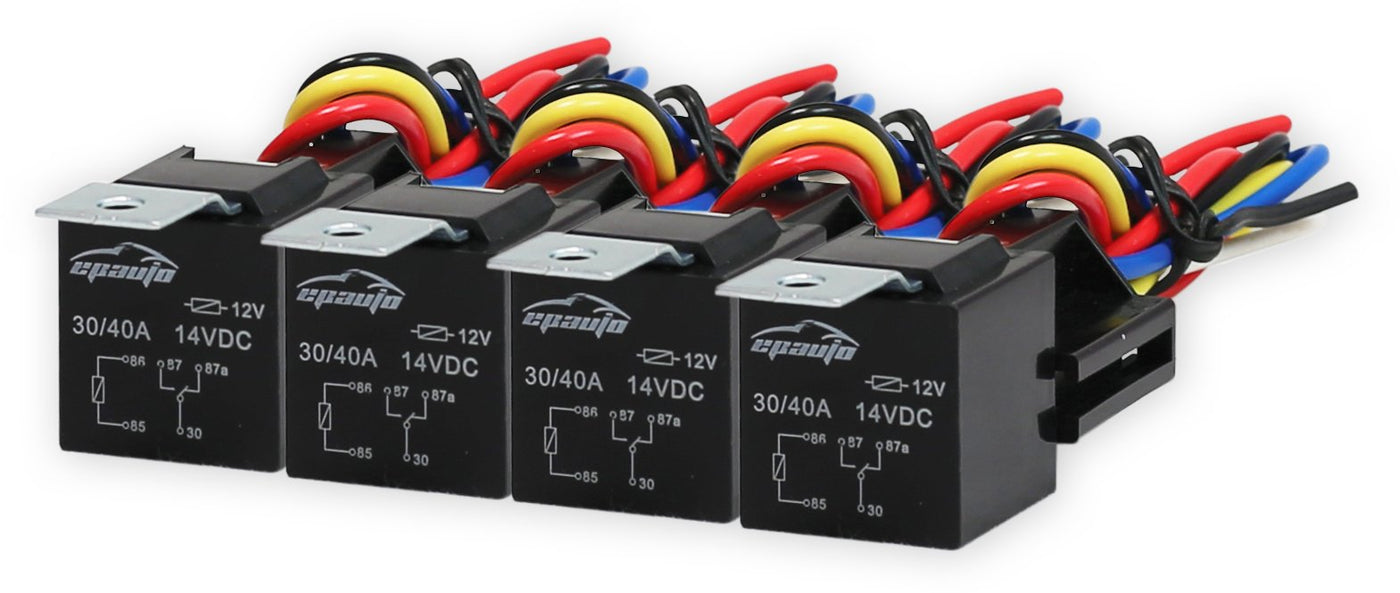

Epauto 30/40 Amp Relay Harness Spdt 12V Bosch Style - 4 Pack

$15.78
Regular price ~~$22.54~~
Will be in stock after

Join Waitlist

Wishlist

Vendor: Epauto

Type: Relays

Sku: WBCARB072QXDZRD

Available: Sold Out

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Epauto 30/40 Amp Relay Harness Spdt 12V Bosch Style - 4 Pack

$15.78

Description

Contact Capacity:

Normal Switching Capacity (Res.Load):
- No 40A 14Vdc
- Nc 30A 14Vdc
Max. Switching Current: 40A
Max. Switching Voltage: 30Vdc
Max. Switching Power: 560W

Characteristic Data:

Initial Contact Resistance (At 6Vdc 1A): 50M? Max.
Operate Time (At Nominal Volt.): 10 Msec. Max.
Release Time (At Nominal Volt.): 5 Msec Max.
Initial Insulation Resistance: 100M? Min. (Dc500V)
Initial Dielectric Strength:
- Between Open Contacts: Ac500V, 50/60 Hz 1Min.
- Between Coil And Contact: Ac500V, 50/60 Hz 1Min.
Vibration Resistance:
- Functional: 10 ~ 55Hz At Double Amplitude Of 1.5 Mm
- Destructive: 10 ~ 55Hz At Double Amplitude Of 1.5 Mm
Shock Resistance:
- Functional: 20G Min.
- Destructive: 100G Min.
Endurance (Operations):
- Mechanical (At 7,200 Ops./H): 10,000,000
- Electrical (At 600 Ops./H): 100,000
Ambient Temperature: -40°C ~ +125°C (No Condensation)

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the maximum switching capacity of the EPAuto Relay Harness? A: The EPAuto Relay Harness has a maximum switching capacity of 40A at 14VDC for normally open (NO) contacts and 30A at 14VDC for normally closed (NC) contacts.
Q: Is the EPAuto Relay Harness suitable for automotive applications? A: Yes, the EPAuto Relay Harness is designed for automotive applications, providing a reliable solution for managing high-current loads in vehicles.
Q: What are the dimensions of the relay harness package? A: The EPAuto Relay Harness package includes four relays and four relay sockets, with each relay measuring approximately 5.75 inches in length and 1.75 inches in width.
Q: What kind of wires are included with the EPAuto Relay Harness? A: The EPAuto Relay Harness comes with heavy-duty UL listed 6-inch wires that include pigtail leads for the main contact, ensuring safe and reliable connections.
Q: What is the endurance rating of the EPAuto Relay in terms of operations? A: The EPAuto Relay is rated for up to 10 million mechanical operations at a rate of 7,200 operations per hour and 100,000 electrical operations at 600 operations per hour.
