What is the rated voltage and speed of the Greartisan DC 12V Gear Motor?

The Greartisan DC Gear Motor operates at a rated voltage of 12V and has a speed of 200RPM, making it suitable for various applications that require reliable and efficient performance.

What applications is the Greartisan Gear Motor suitable for?

This gear motor is ideal for a wide range of applications including vending machines, pan cameras, slot machines, automatic doors, and various toy motors, thanks to its high torque and reliability.

How should I handle and install the Greartisan DC Gear Motor?

When handling the motor, be gentle and avoid stressing the motor shell. For installation, ensure to connect the red lead to the positive electrode and the black lead to the negative pole to prevent reverse rotation.

What are the storage and operating temperature conditions for this motor?

The Greartisan Gear Motor should be stored in environments with temperatures between 0℃ - 40℃ and humidity levels of 15% - 90% RH. Its operational temperature range is between 0℃ - 70℃ to ensure optimal performance.

What features make the Greartisan DC Gear Motor durable and reliable?

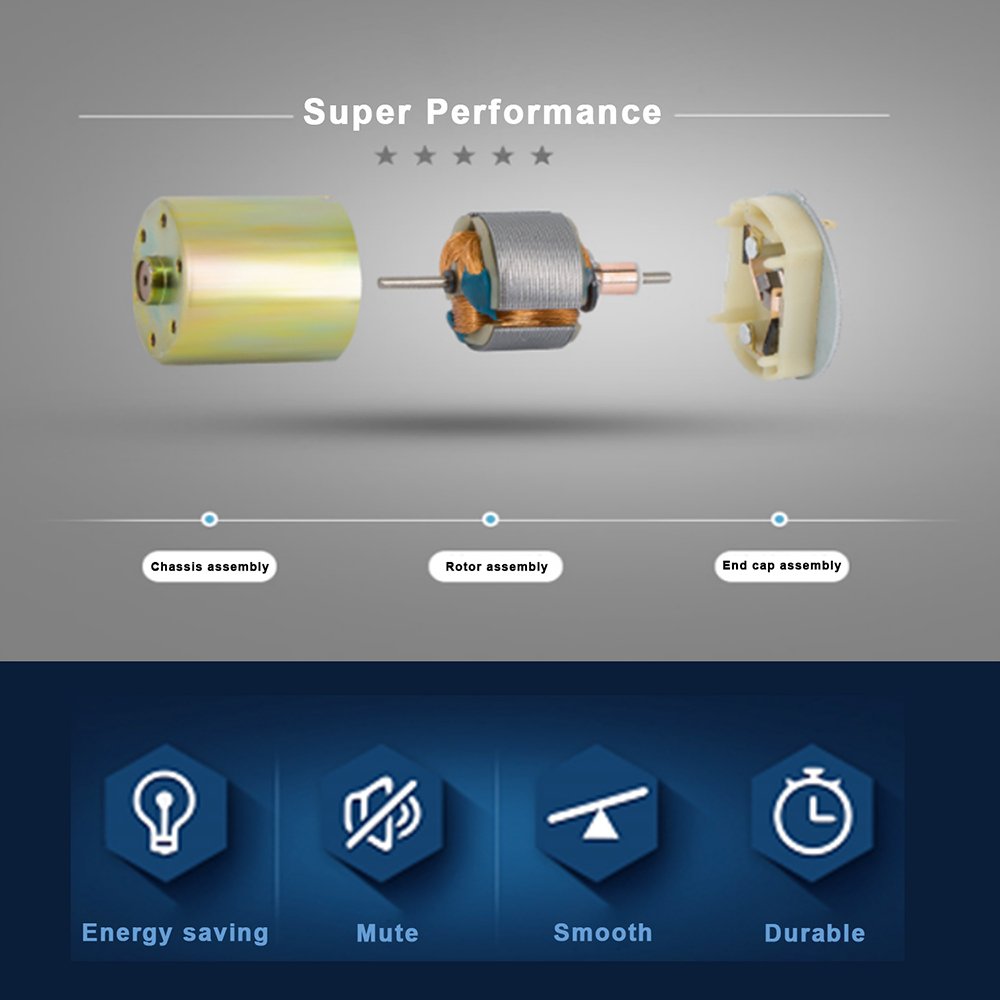

This motor features all-metal gears for high-temperature and abrasion resistance, a pure copper wire core rotor for improved power, and a D-shaped output shaft for enhanced durability, ensuring long-lasting performance.

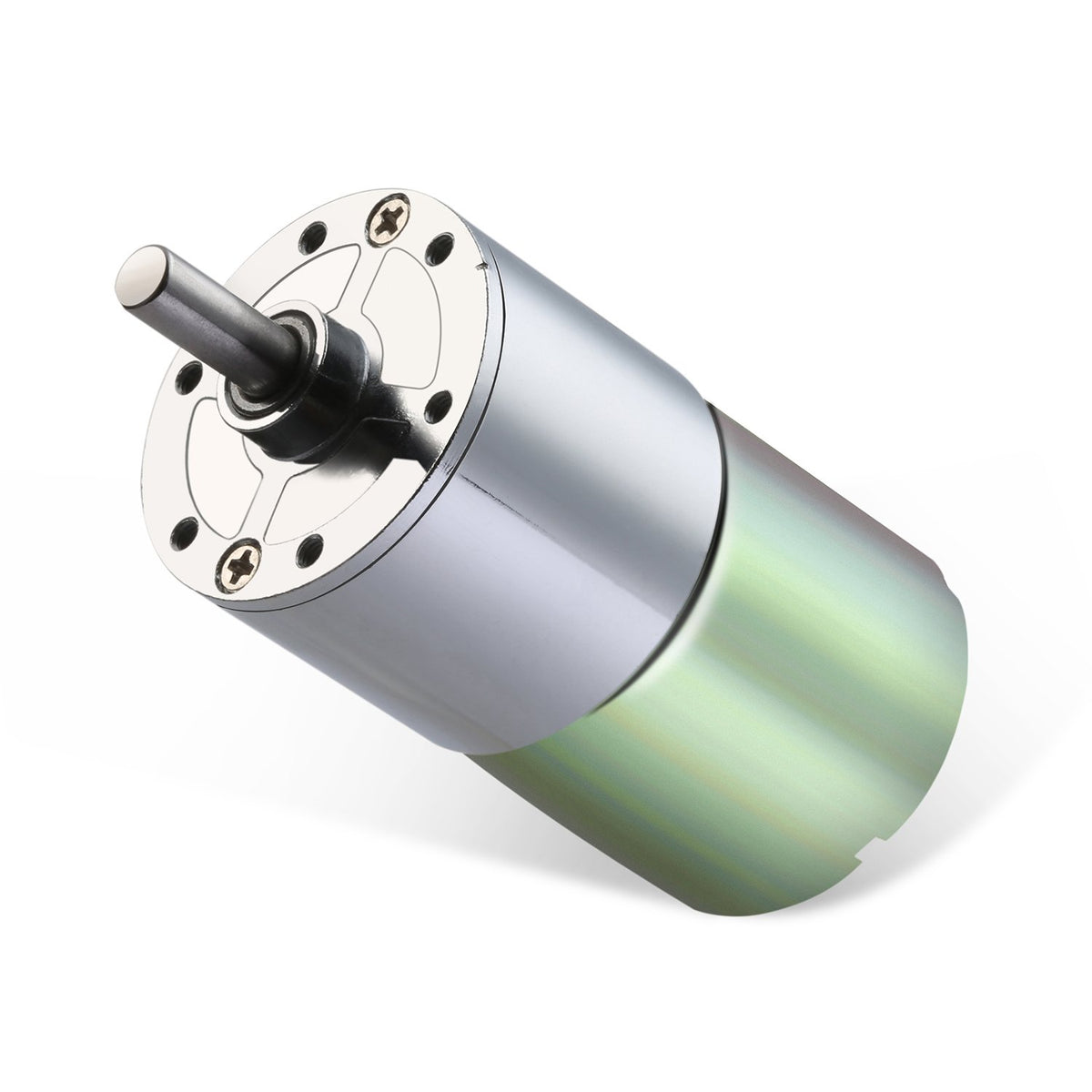

Greartisan Dc 12V 200Rpm Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37Mm Diameter Gearbox

Greartisan Dc 12V 200Rpm Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37Mm Diameter Gearbox

$20.87
Regular price ~~$29.81~~

Wishlist

Vendor: Greartisan

Type: Gear Kit

Sku: WBCARB071GTTSV3

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Greartisan Dc 12V 200Rpm Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37Mm Diameter Gearbox

$20.87

Description

Specifications:
Rated Voltage: 12V
Speed: 200RPM
Material: Metal
Rated Torque: 2.2Kg.cm
Reduction Ratio: 1:24
Rated Current: 0.5A

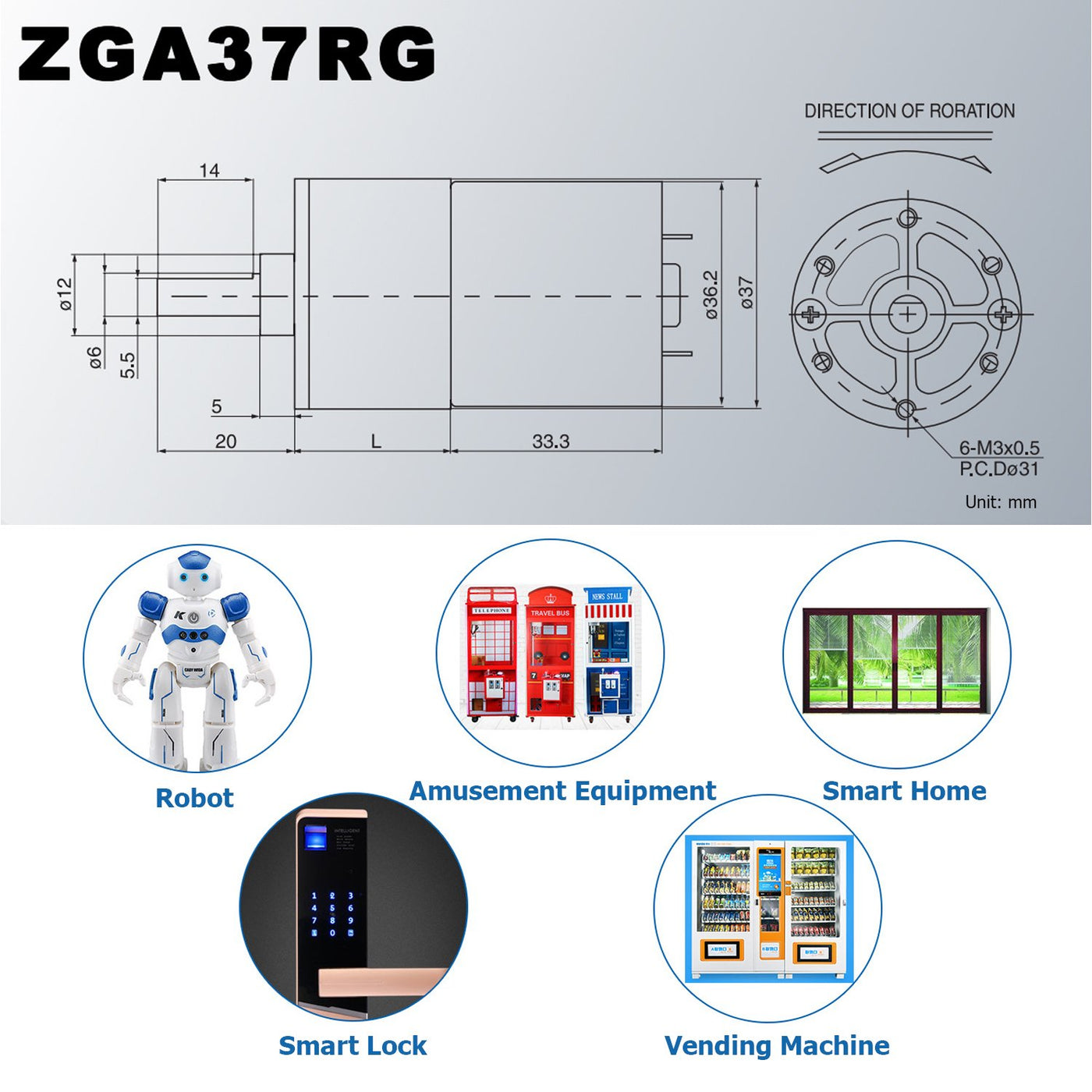

D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L)
Gearbox Size: 37 x 24.5mm (1.46" x 0.96") (D*L)
Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L)
Mounting Hole Size: M3 (not included)

Application:
Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc.

Packages:
- 1 x DC Geared Motor

PLEASE NOTE:
1. Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2. Handling motors: Gently, as far as possible the use of motor shell part.
3. Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4. Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5. Motor storage:
-- Storage temperature: 0℃ - 40℃;
-- Storage humidity: 15% -90% RH;
-- Avoid placing in high temperature, high humidity and corrosive gases.
6. Motor use temperature: 0℃ - 70℃

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the rated voltage and speed of the Greartisan DC 12V Gear Motor? A: The Greartisan DC Gear Motor operates at a rated voltage of 12V and has a speed of 200RPM, making it suitable for various applications that require reliable and efficient performance.
Q: What applications is the Greartisan Gear Motor suitable for? A: This gear motor is ideal for a wide range of applications including vending machines, pan cameras, slot machines, automatic doors, and various toy motors, thanks to its high torque and reliability.
Q: How should I handle and install the Greartisan DC Gear Motor? A: When handling the motor, be gentle and avoid stressing the motor shell. For installation, ensure to connect the red lead to the positive electrode and the black lead to the negative pole to prevent reverse rotation.
Q: What are the storage and operating temperature conditions for this motor? A: The Greartisan Gear Motor should be stored in environments with temperatures between 0℃ - 40℃ and humidity levels of 15% - 90% RH. Its operational temperature range is between 0℃ - 70℃ to ensure optimal performance.
Q: What features make the Greartisan DC Gear Motor durable and reliable? A: This motor features all-metal gears for high-temperature and abrasion resistance, a pure copper wire core rotor for improved power, and a D-shaped output shaft for enhanced durability, ensuring long-lasting performance.
