What is the rated voltage and speed of the Greartisan DC 12V motor?

The Greartisan DC motor operates at a rated voltage of 12V and has a no-load speed of 20 RPM.

What applications is the Greartisan geared motor suitable for?

This geared motor is ideal for various applications including vending machines, pan cameras, slot machines, money detectors, coin refund devices, automatic doors, peritoneal machines, and toy motors.

How do I properly connect the motor's wiring?

To connect the motor, attach the red lead to the positive electrode and the black lead to the negative pole. Reversing these connections will cause the motor to rotate in the opposite direction.

What precautions should I take when using the Greartisan motor?

It's important to operate the motor within the specified voltage and current range to avoid performance decline. Avoid blocking the motor or running it close to stall conditions for extended periods to prevent burnout.

What materials are used in the construction of the Greartisan geared motor?

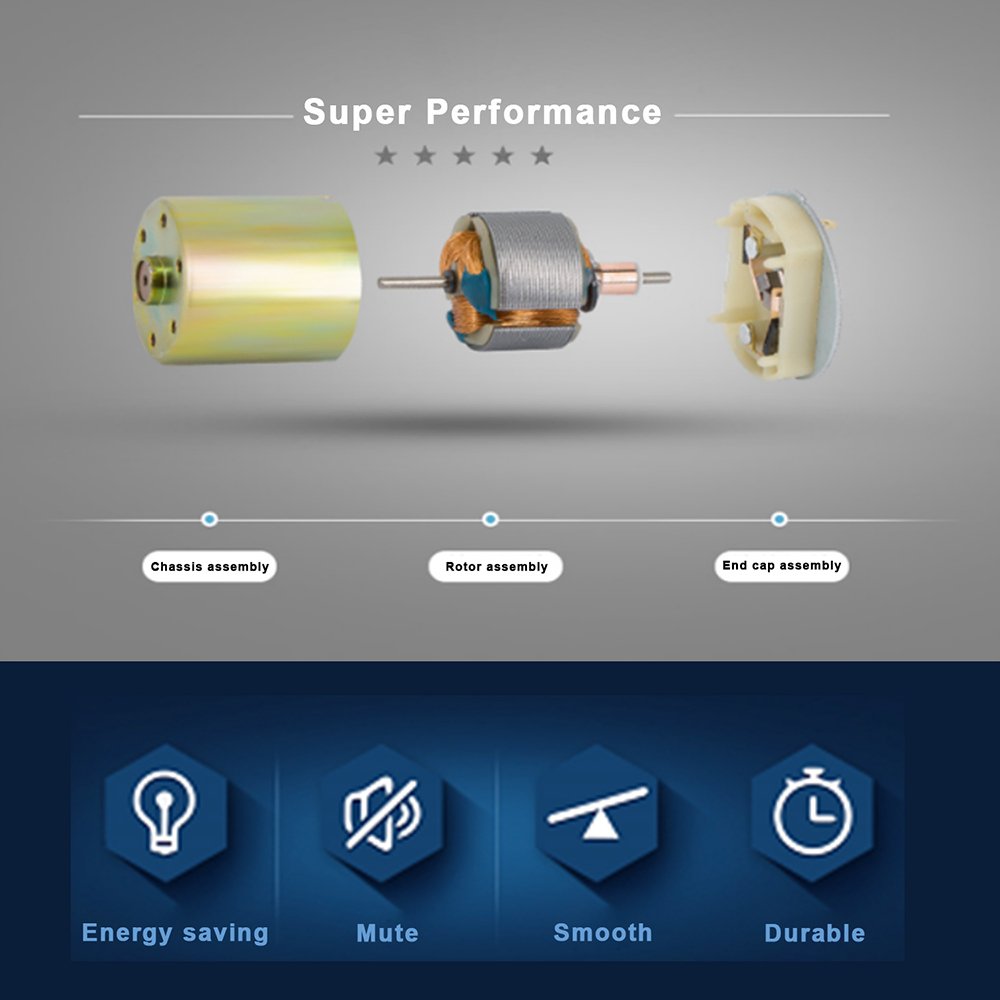

The Greartisan motor features all-metal gears for durability, a pure copper wire core rotor for improved power efficiency, and a high hardness steel D-shaped output shaft, ensuring strong load capacity and longevity.

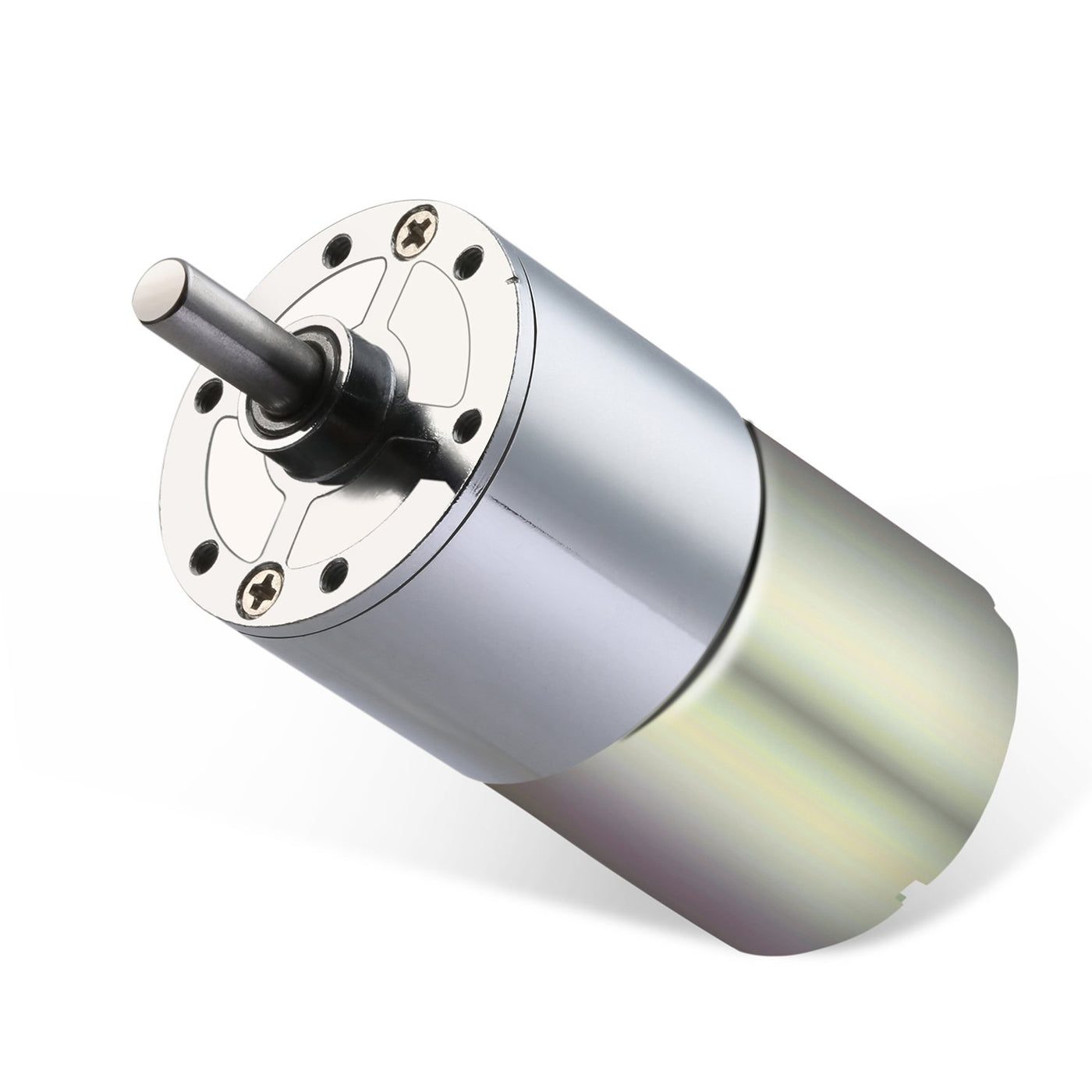

Greartisan Dc 12V 20Rpm Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37Mm Diameter Gearbox

Greartisan Dc 12V 20Rpm Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37Mm Diameter Gearbox

$20.87
Regular price ~~$29.81~~

Wishlist

Vendor: Greartisan

Type: Gear Kit

Sku: WBCARB07K9KPWX6

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

Guarantee safe checkout

Greartisan Dc 12V 20Rpm Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Centric Output Shaft 37Mm Diameter Gearbox

$20.87

Description

Specifications:
Rated Voltage: DC 12V
Reduction Ratio: 1:244
No-Load Speed: 20RPM
Rated Torque: 0.31Kg.cm
Rated Current: 0.6Amp

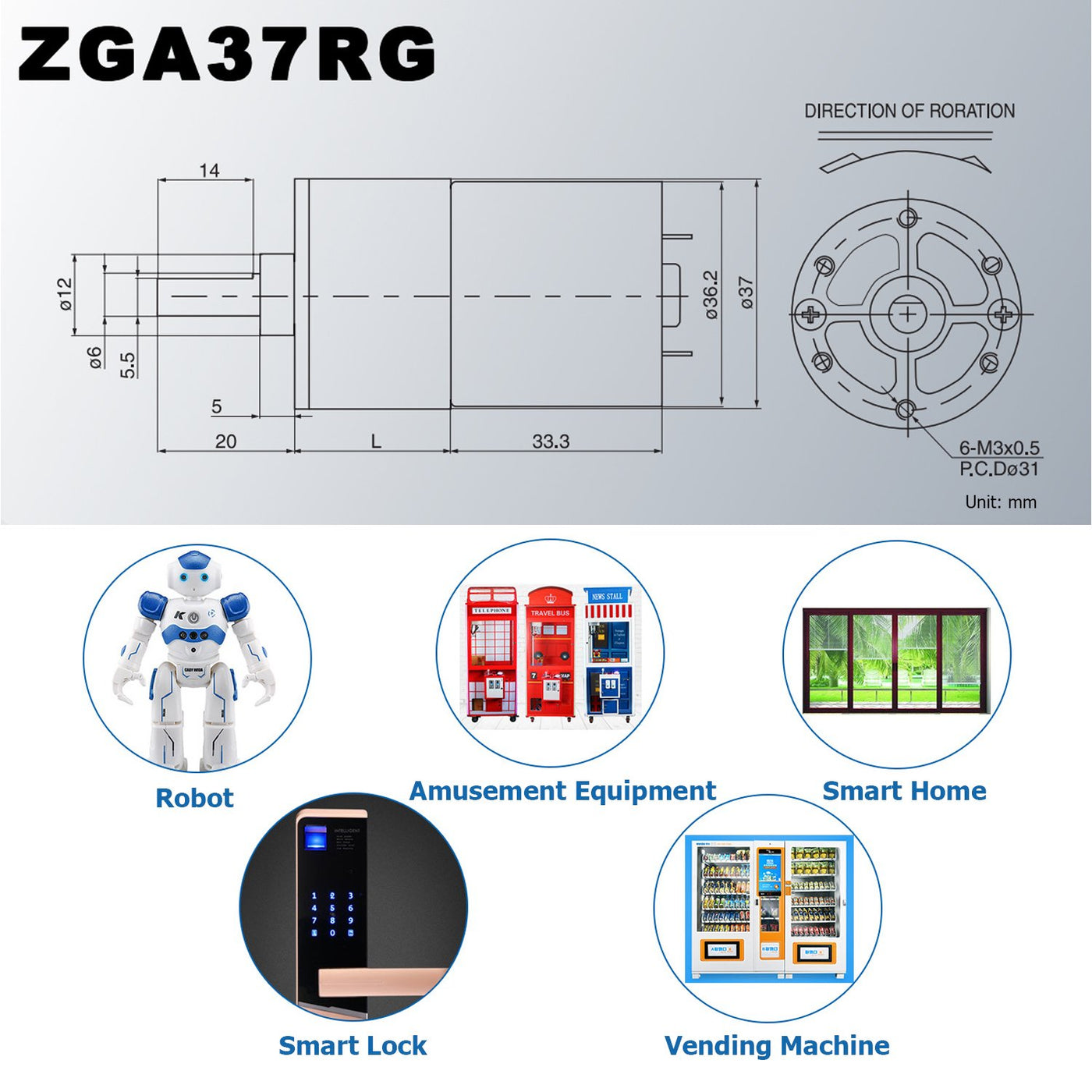

D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L)
Gearbox Size: 37 x 30mm (1.46" x 1.18") (D*L)
Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L)
Mounting Hole Size: M3 (not included)

Application:
Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc.

Packages:
- 1 x DC Geared Motor

PLEASE NOTE:
1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2.Handling motors: Gently, as far as possible the use of motor shell part.
3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5.Motor storage:
-- Storage temperature: 0℃ - 40℃;
-- Storage humidity: 15% -90% RH;
-- Avoid placing in high temperature, high humidity and corrosive gases.
6.Motor use temperature: 0℃ - 70℃

FAQs

Have a question ? We are here to help.

Is the shipping free?

Yes, we offer free standard shipping on all orders within the United States.

When will I receive my item?

Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.

Can I change or return my item?

We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.

Frequently Asked Questions

Q: What is the rated voltage and speed of the Greartisan DC 12V motor? A: The Greartisan DC motor operates at a rated voltage of 12V and has a no-load speed of 20 RPM.
Q: What applications is the Greartisan geared motor suitable for? A: This geared motor is ideal for various applications including vending machines, pan cameras, slot machines, money detectors, coin refund devices, automatic doors, peritoneal machines, and toy motors.
Q: How do I properly connect the motor's wiring? A: To connect the motor, attach the red lead to the positive electrode and the black lead to the negative pole. Reversing these connections will cause the motor to rotate in the opposite direction.
Q: What precautions should I take when using the Greartisan motor? A: It's important to operate the motor within the specified voltage and current range to avoid performance decline. Avoid blocking the motor or running it close to stall conditions for extended periods to prevent burnout.
Q: What materials are used in the construction of the Greartisan geared motor? A: The Greartisan motor features all-metal gears for durability, a pure copper wire core rotor for improved power efficiency, and a high hardness steel D-shaped output shaft, ensuring strong load capacity and longevity.
