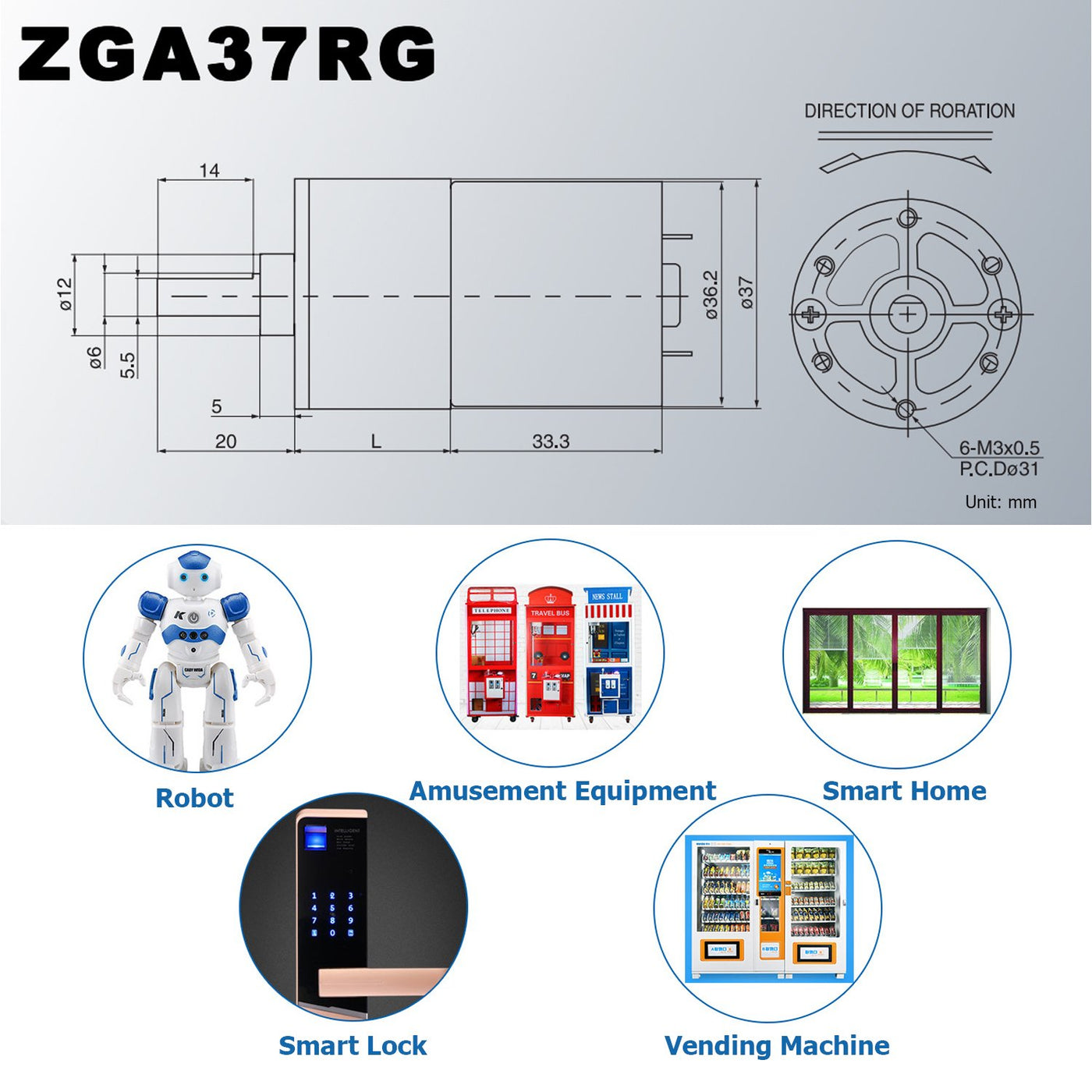

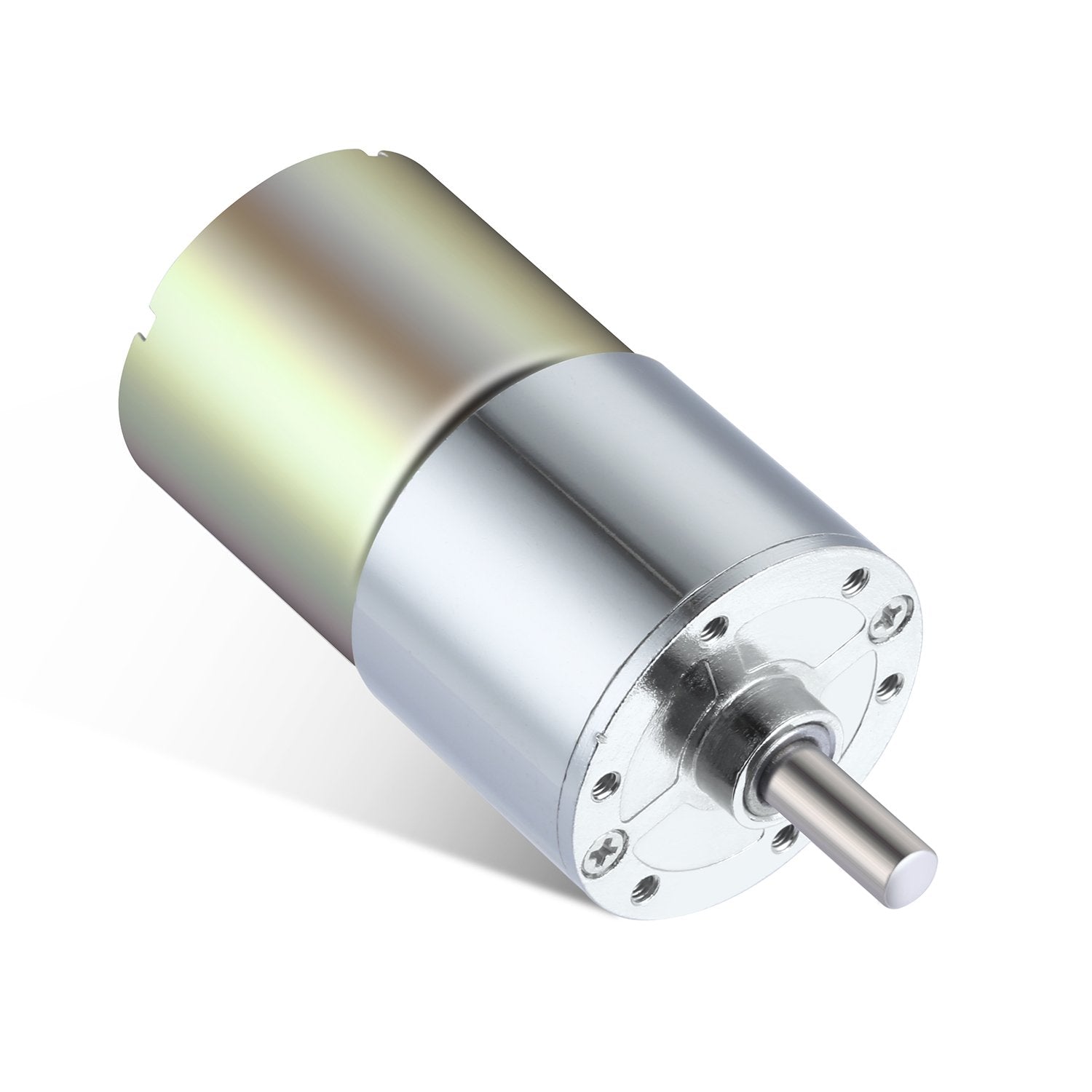

Specifications:Rated Voltage: Dc 24Vreduction Ratio: 1:24No-Load Speed: 200Rpmno-Load Current: 0.08Amprated Torque: 1.5Kg.Cmrated Current: 0.18Ampd Shaped Output Shaft Size: 6*14Mm (0.24' X 0.55') (D*L)Gearbox Size: 37 X 22.5Mm (1.46' X 0.89') (D*L)Motor Size: 36.2 X 33.3Mm (1.43' X 1.31') (D*L)Mounting Hole Size: M3 (Not Included)Application:Vending Equipments, Pan Camera, Slot Machine, Money Detector, Coin Refund Devices, Automatic Doors, Peritoneal Machine, Toys Motor Etc.Packages:- 1 X Dc Geared Motorplease Note:1.Use Tolerance: Pay Attention To The Use Of Voltage And Current Range, Otherwise The Motor Performance And Motor Life Will Decline.2.Handling Motors: Gently, As Far As Possible The Use Of Motor Shell Part.3.Motor Wiring: Red Lead To The Positive Electrode, Black Lead To The Negative Pole, If Reversed, The Motor Rotation In The Opposite Direction.4.Overload: As Far As Possible Within The Specified Load Range, Prohibit Motor Blocking Or Close To The Stall State For Too Long Time To Runs. Otherwise, The Motor Will Burn Out.5.Motor Storage:-- Storage Temperature: 0? - 40?;-- Storage Humidity: 15% -90% Rh;-- Avoid Placing In High Temperature, High Humidity And Corrosive Gases.6.Motor Use Temperature: 0? - 70?
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the voltage and speed rating of the Greartisan DC 24V Gear Motor?A: The Greartisan DC Gear Motor operates at a rated voltage of DC 24V with a no-load speed of 200RPM.
Q: What applications are suitable for this geared motor?A: This geared motor is ideal for various applications including vending machines, pan cameras, slot machines, money detectors, coin refund devices, automatic doors, and toys.
Q: How do I properly wire the Greartisan DC Gear Motor?A: To wire the motor, connect the red lead to the positive electrode and the black lead to the negative pole. Reversing these connections will cause the motor to rotate in the opposite direction.
Q: What maintenance tips should I follow for the Greartisan DC Gear Motor?A: To maintain the motor, avoid overheating and high humidity conditions. Store the motor at temperatures between 0℃ - 40℃ and ensure it operates within the specified load range to prevent burnout.

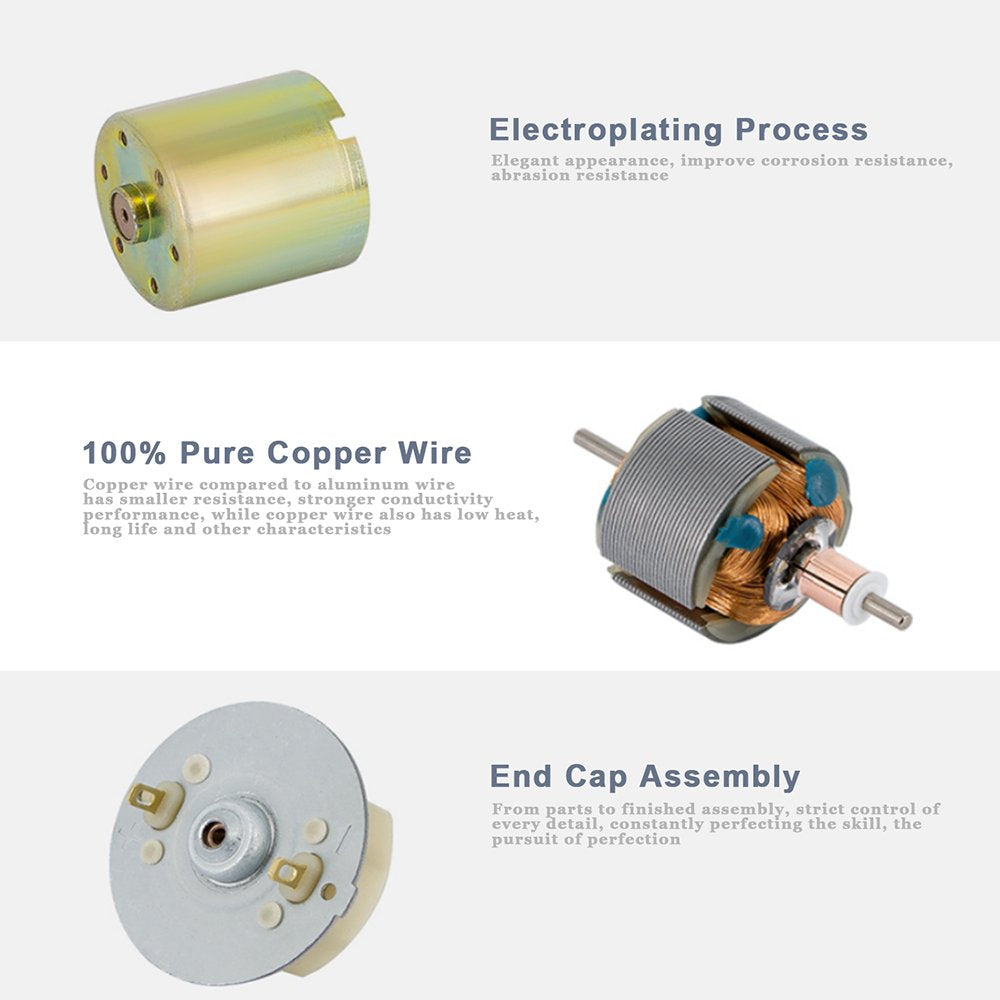

Q: What makes the Greartisan DC Gear Motor unique compared to other motors?A: The Greartisan DC Gear Motor features all-metal gears for durability, a pure copper wire core rotor for increased power, and a D-shaped output shaft for improved toughness, making it highly efficient and long-lasting.
