Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.
Dust Boot
Protect the shaft from the flying stones.
PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
M Shaft (?46 normal type)
With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.
Adopted Pillow Ball Upper Mount
For more accurate and sharp steering.
New Design Needle
Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.
Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
Specification:
FRONT
REAR
Damping force adjustment
30 steps
30 steps
Base valve
-
-
Height adjustable lower bracket
?
?
Upper mount
Spherical bearing
Spherical bearing
Inverted/Normal type
Normal
Normal
Damper/Spring layout
Coilover
Coilover
Spring rate change at factory
Possible
Possible
Damping force adjustment with wire
-
? ?5
Helper spring (Spring rate N/mm)
? ( 19.8 )
? ( 19.8 )

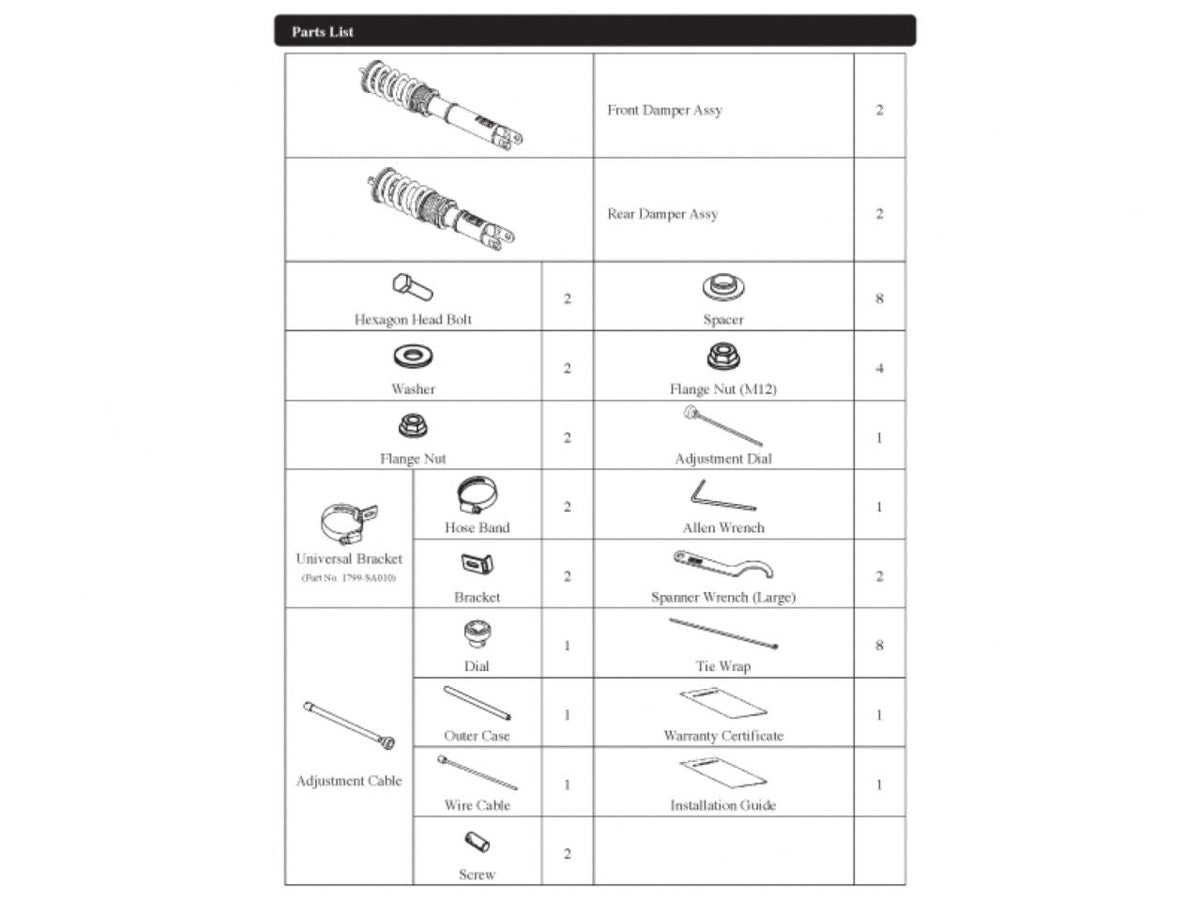

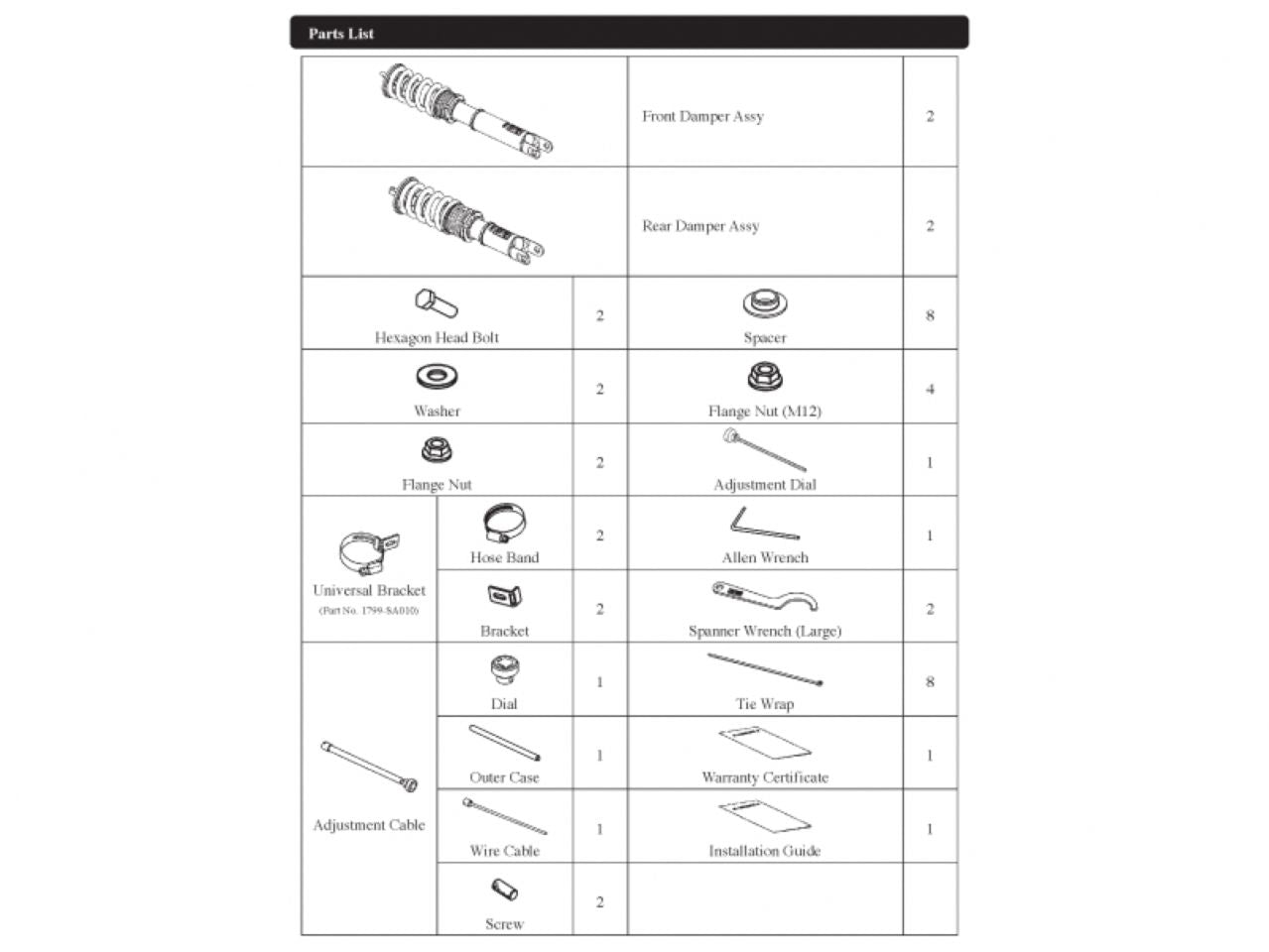

Kit Information
Spring of Full Kit
F
R
Spring rate N/mm(kgf/mm)
157 ( 16 )
157 ( 16 )
Free height (mm)
170
150
Spring type
Straight
Straight
Recommended range to change spring rate N/mm(kgf/mm)
