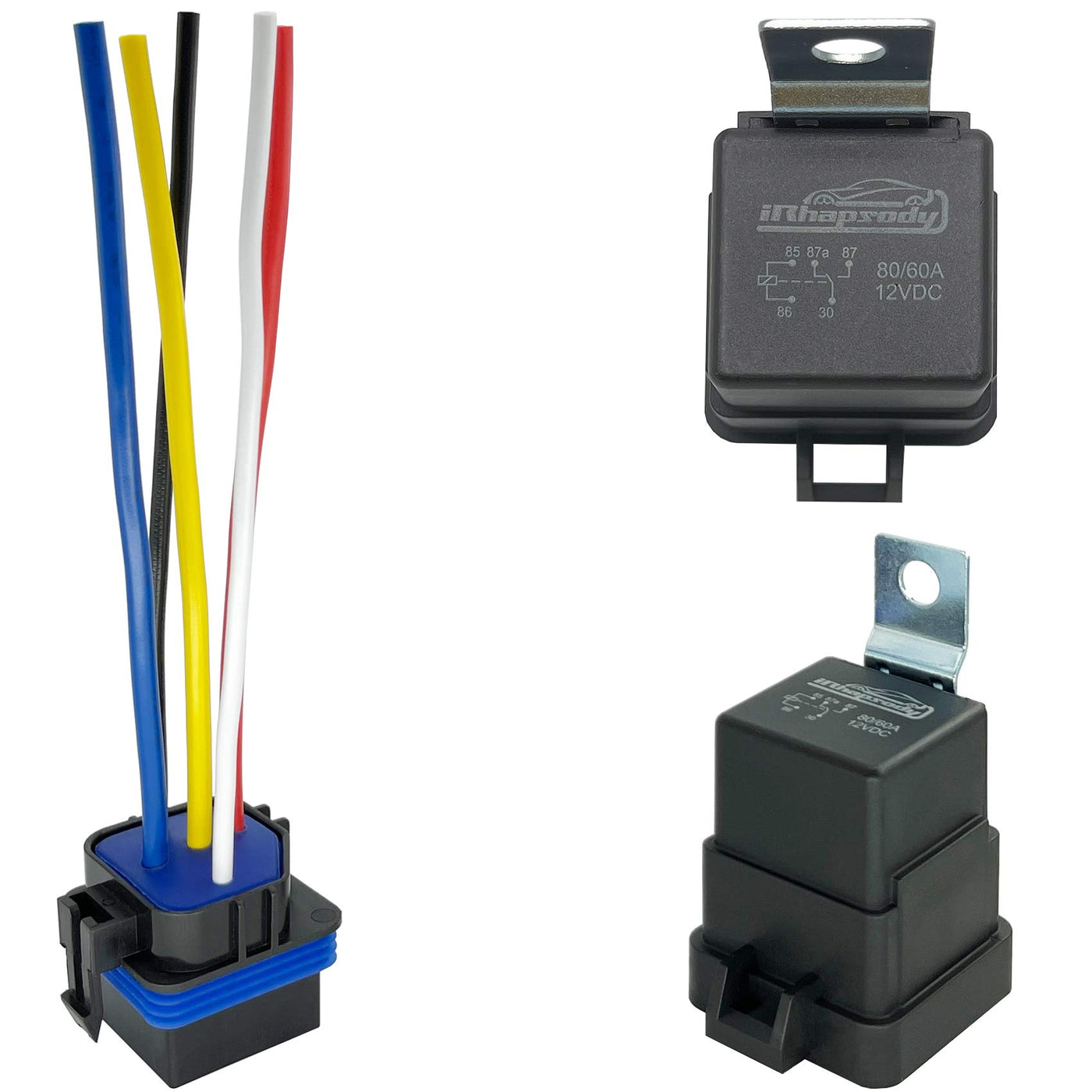

Note: Because The Maximum Rated Coil Voltage Of The Relay Is 14 V Dc, The Voltage Value We Marked On The Relay Is 14 V Dc, Which Can Be Used For 12 V Dc Circuits. The Product You Received Is Correct, Please Do Not Worry. 12Awg Tinned Copper Wire: Pin 87A&Emsp;Yellow 12Awg Tinned Copper Wire: Pin 87&Emsp;Blue 12Awg Tinned Copper Wire: Pin 30&Emsp;Red 16Awg Tinned Copper Wire: Pin 85&Emsp;Black 16Awg Tinned Copper Wire: Pin 86&Emsp;White Nominal Coil Voltage: 12 V Dc Coil Power: 1.8 W Coil Resistance: 80 O Must Operate Voltage: 6~8 V Dc Must Release Voltage: 0.6~3.6 V Dc Maximum Applied Voltage: 15.6 V Dccontact Ratings: No 80A 14V Dc Contact Resistance: 100Mmax (At6Vdc 1A) Max Switching Current: 80A Max Switching Power: 560 W Life Expectancy Electrical: 100,000 Operations (At30 Operations/Minute) Life Expectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80 Degrees Celsius Vibration Resistance: 10~55Hz, 1.5Mm Shock Resistance: Operations Extremes: 10G. Damage Limits: 100G Hunidity: 40% ~ 85% Insulation Resistance: 100Mo Min At500Vdc Dielectric Strength Between Open Contacts: 500Vac (For One Minute/Sec) Between Contactw And Coil: 750Ac (For One Minute/Sec) Operate Tice: 7Ms Release Tice: 5Ms Package Content: 1 X 12 V Dc 80/60A Waterproof Relay And Harness One Year Performance Warranty, All Products Sold By Irhapsody Have A 90-Day Money Back Guarantee Note: 1, Easy To Mount - No Instructions Were Included - You Do Need To Know A Little About Electrical 2, For Your And Others' Safety, Let Professional Technicians To Install The Equipment
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the maximum voltage this 12V relay can handle?A: The irhapsody Relay can handle a maximum applied voltage of 15.6 V DC, making it suitable for 12 V DC circuits.
Q: What are the contact ratings for this automotive relay?A: The contact ratings for the irhapsody Relay are NO 80A at 14 V DC, which indicates it can handle significant loads.
Q: How can I install this relay safely?A: To ensure safe installation, it's recommended to have a professional technician do it, as no installation instructions are included with the product.
Q: What is the life expectancy of the relay?A: The electrical life expectancy of the irhapsody Relay is approximately 100,000 operations, while the mechanical life expectancy is around 10,000,000 operations.
Q: Is this relay waterproof and dustproof?A: Yes, this relay is designed with excellent water-repellent and dustproof capabilities; however, it should not be submerged in water.
