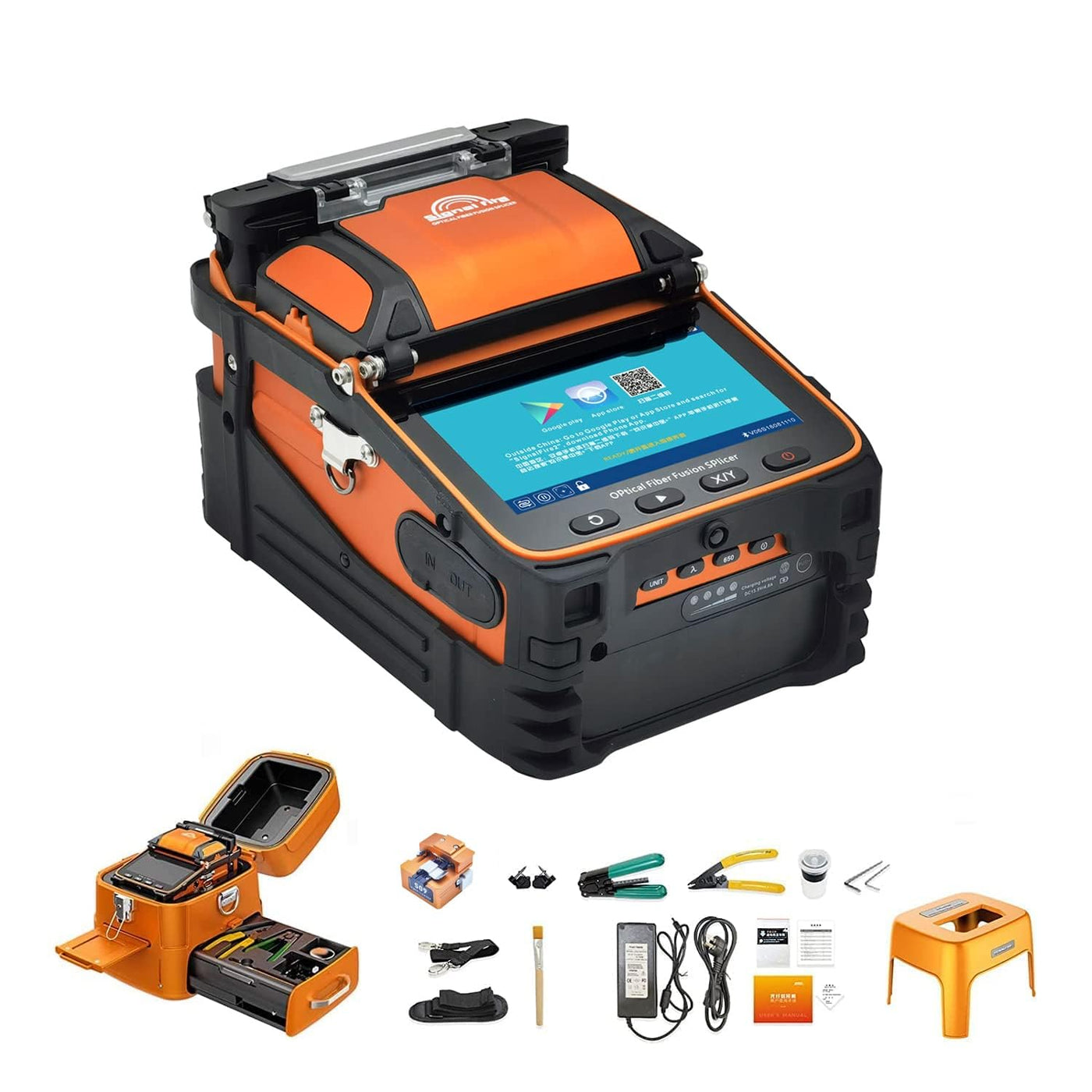

Signal Fire Ai-9 Optical Fiber Fusion Splicer, Splicing Heating Machine With 5 Seconds Splicing Time Melting 15 Seconds Heating, Optical Fiber Cleaver Ftth Kit For Optical Fiber & Cable Projects
No reviews
$1,139.86
Regular price
$1,628.37
-29%
Will be in stock after
Couldn't load pickup availability
Vendor: Signal Fire
Type: Electrical
Sku: WBHDWB09ZL6KGQW
Available: Sold Out
Shipping information
- No EU import duties. - Ships within 3-5 business days. (USA) - Ships with 8-12 business days. (International)
⚠️ California Proposition 65 Warning : Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, visit www.P65Warnings.ca.gov.

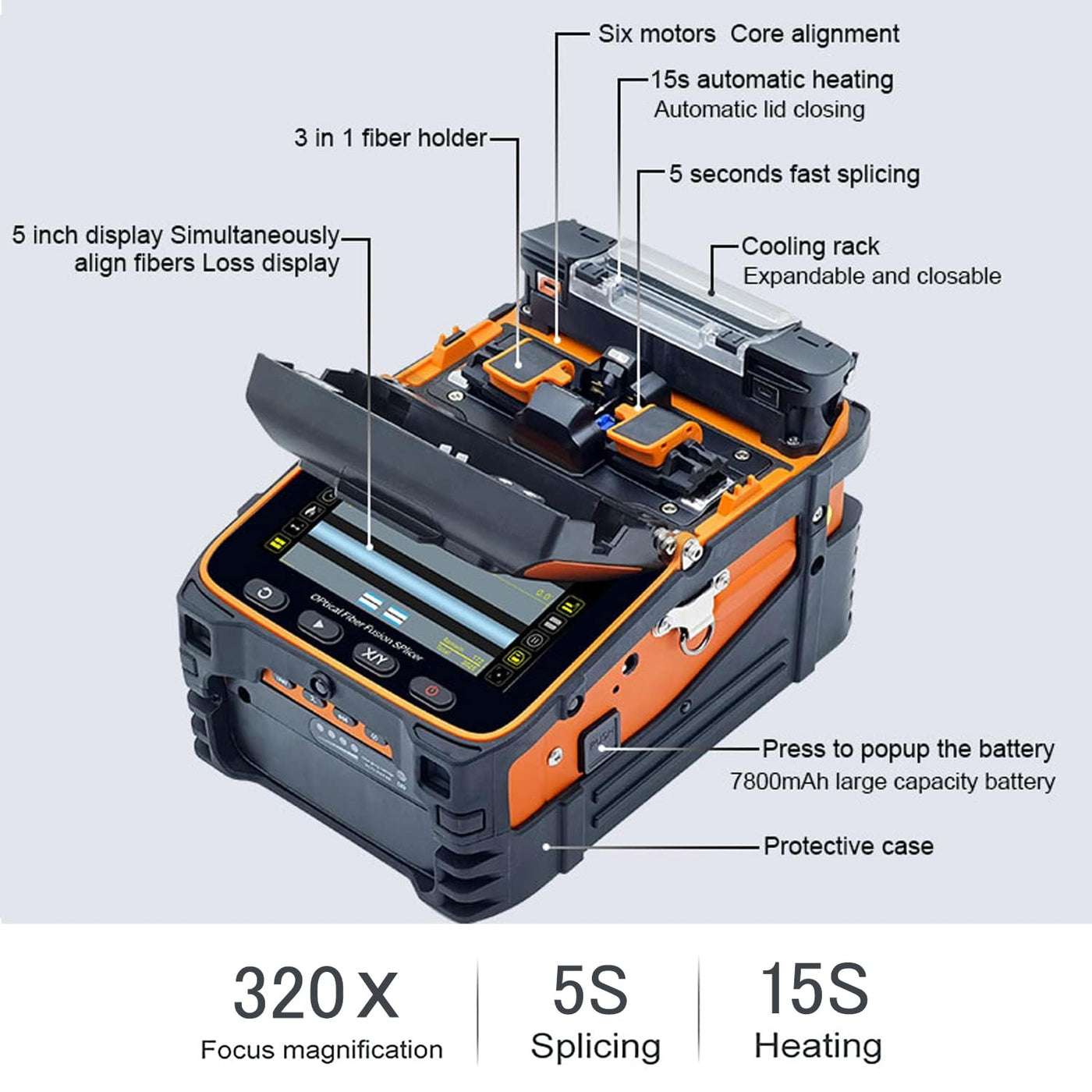

Parameter : 1). Fiber alignment:Core/cladding alignment / Manual alignment 2). Splicing time:5S,Heating time:15S 3). Heating mode:Automatic heating(Preheating) 4). Focus mode:Six motors Auto focus 5). Screen:5 inch TFT color display 6). Magnification:320 for X or Y view, 200 for X and Y view 7). Splicing Mode:Normal / high precision splicing 8). Splicing method:Fully automatic, Step by step splicing 9). 10 Languages to switch freely: English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabic. 10). Built-in Optical Power Meter: Wave length:850nm?1300nm?1310nm?1490nm?1550nm?1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range). 11). Built-in Visual Fault Locator: Power:15mw,2hz flashing And Constantly Bright Mode. 12). Built-in battery:7800 mA high-capacity lithium battery, charging time = 3.5 hours,continuous splicing and heating about 200 times. 13). Fiber holders:3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable. Applicable Fibers:SM(G.652&G.657)?MM(G.651)?DS(G.657)?NZDS(G.655). 14). Splice Loss:0.025dB(SM)?0.01dB(MM)?0.04dB(DS/NZDS). 15). Return loss:Better than 60DB. Shrinkable tube:60mm?50mm?40mm?25mm. 16). Fiber diameter:Cladding Diameter:80-150µm?Coating Diameter:100-1000µm. Fiber Cleave Length:Coating less than 250µm:8-16mm?Coating less than 250-1000µm:16mm. 17). Control technology:Real-time control and calibration of fusion ARC. 18). Splicing record storage:Synchronize to the phone, the server to cloud storage unlimited. Software updates Length:Automatically update? Update by a key. 19). Boot time:1 second 20). Power supply:Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power. 21). Operating Conditions:Temperature -15 ~ +50 ?, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m.
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions
Q: What is the splicing time and heating time of the Signal fire AI-9 Fusion Splicer?A: The Signal fire AI-9 Fusion Splicer offers a fast splicing time of just 5 seconds and a heating time of 15 seconds, making it efficient for optical fiber projects.
Q: How does the built-in optical power meter work?A: The built-in optical power meter in the AI-9 can measure wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm, with a measuring range of -70 to +6dB and an absolute error of less than 0.3dB within the -50dBm to +3dBm range.
Q: Can the AI-9 Fusion Splicer be used for different types of fibers?A: Yes, the AI-9 Fusion Splicer is compatible with various types of fibers, including single-mode (SM), multi-mode (MM), and bare fiber, with a 3-in-1 fiber holder that supports different applications.

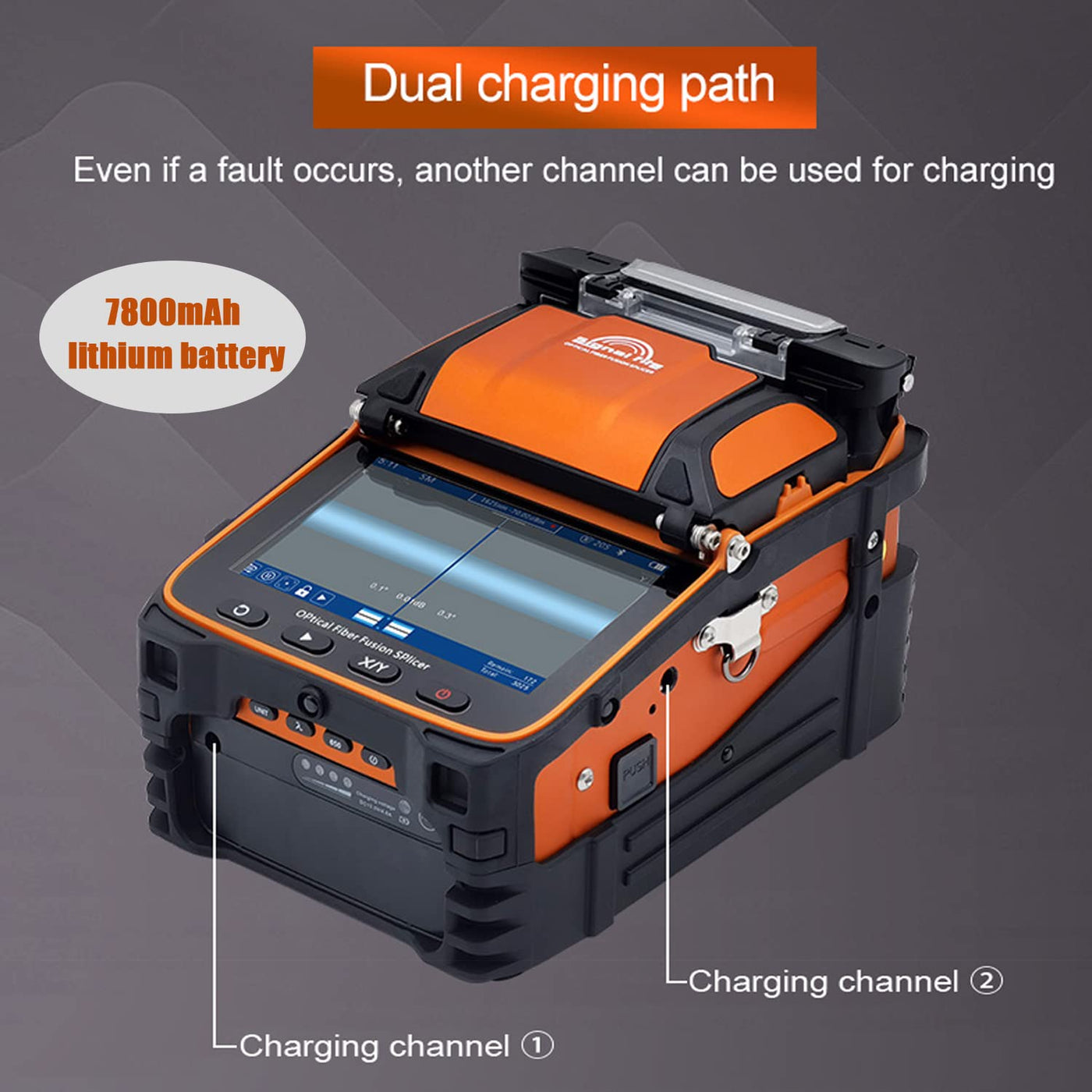

Q: How do I charge the AI-9's battery and what is its capacity?A: The AI-9 Fusion Splicer features a high-capacity 7800 mAh lithium battery that can be fully charged in less than 3.5 hours, allowing for continuous splicing and heating of about 200 times.
Q: What are the operating conditions for the Signal fire AI-9 Fusion Splicer?A: The AI-9 Fusion Splicer operates efficiently in temperatures ranging from -15 to +50 degrees Celsius and can function in humidity levels below 95% RH without condensation, making it suitable for various environments.
