Applications: Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.
Features: - Nylon outer jacket for easy pulling and rated gasoline and oil-resistant II. - A tough, polyamide, Nylon outer jacket per UL-1063 and UL-83 - Can be used in wet and dry locations - UL listed, CSA certified and RoHS compliant
Standards: - Underwriters Laboratories Standards UL-83, UL-1063 and UL-758 - AWM Spec 1316, 1317, 1318, 1319, 1320 and 1321 - ASTM Stranding Class B3, B8, B787 - Federal Specification A-A-59544 Canadian Standards Association C22.2 No. 75 - NEMA WC70/ICEA S-95-658 - Institute of Electrical and Electronics Engineers

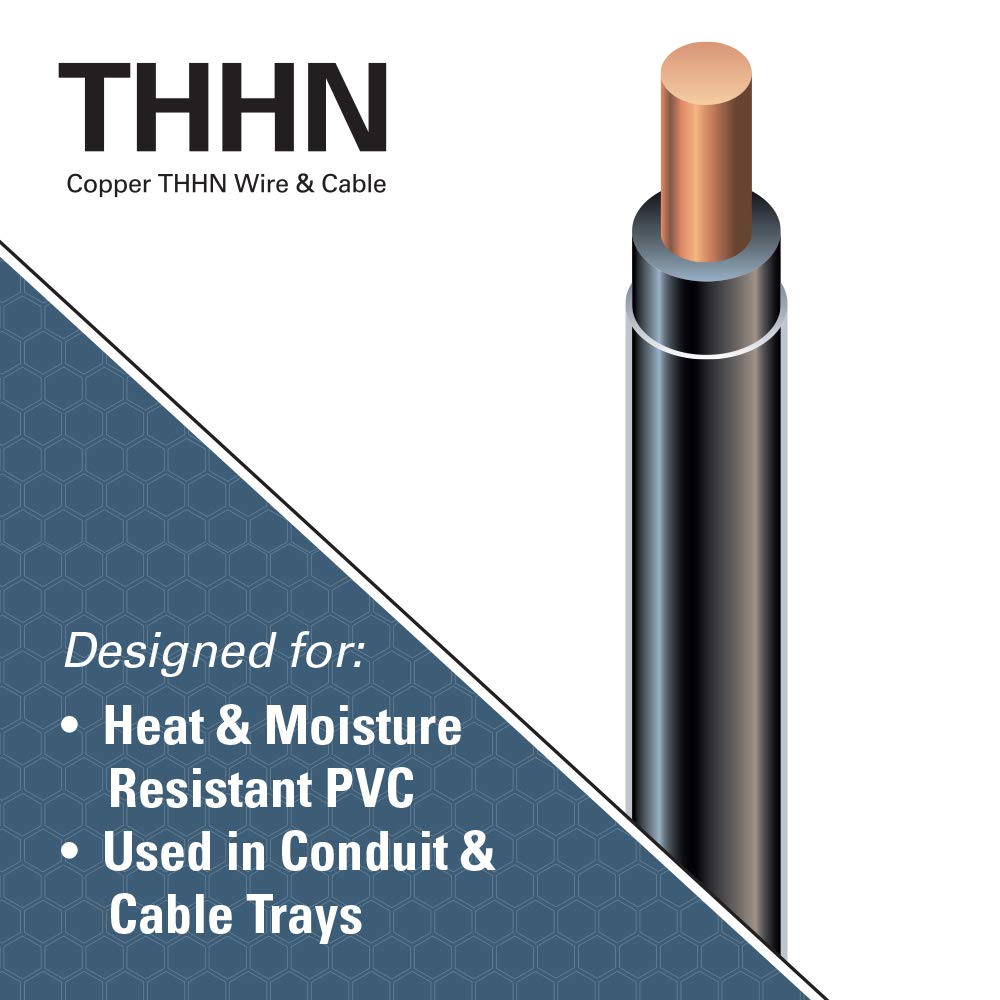

Construction: Conductors: Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8 Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compount per UL-1063 and UL-8
Specifications: Size: 12 AWG Number of Strands: 19 Cross Section Area (mm2): 3.31 PVC Insulation Thickness (Conductor): 0.380 mm / 0.015 inches Nylon Jacket Thickness: 0.100 mm / 0.004 inches Outside Diameter: 3.23 mm / 0.127 inches Allowable Ampacity: 20 Amps at 60, 75 and 90 degrees C
Yes, we offer free standard shipping on all orders within the United States.
When will I receive my item?
Domestic orders typically arrive within 3-5 business days. Delivery times are estimated and may vary depending on your location, weather conditions, or other unforeseen factors.
Can I change or return my item?
We hope you love your purchase, but if you need to make a change or return your item, we’ve got you covered! You can initiate a return or exchange within 30 days of receiving your order. Please ensure the product is in its original condition and packaging. For more information on our return policy, please visit our Returns & Exchanges page.
Frequently Asked Questions

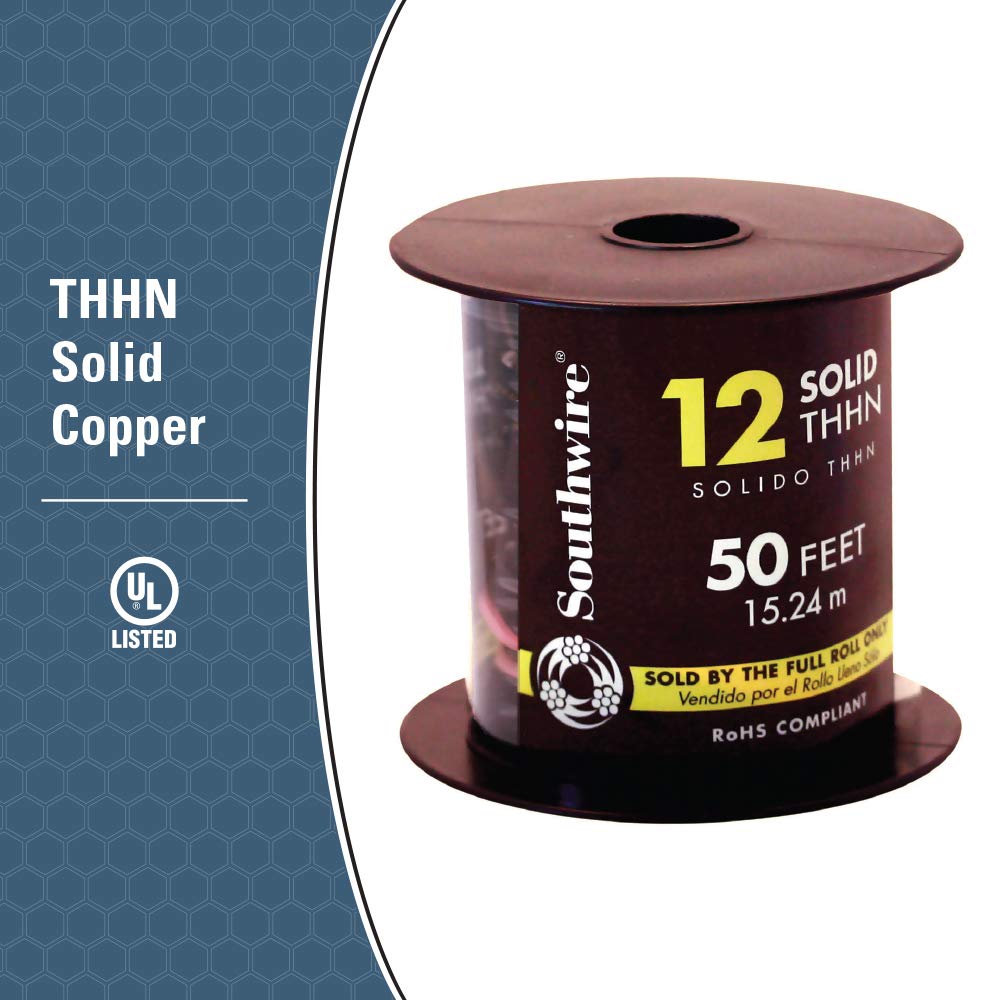

Q: What applications is the Southwire 50 ft. 12 Black Solid CU THHN Wire suitable for?A: The Southwire 50 ft. 12 Black Solid CU THHN Wire is suitable for general purpose applications as defined by the National Electrical Code (NEC). It is designed for use in new construction or rewiring for 600-volt applications and can be used in both wet and dry locations.
Q: Is this wire compliant with safety standards?A: Yes, the Southwire THHN Wire is UL listed, CSA certified, and RoHS compliant. It adheres to multiple safety and construction standards, including UL-83, UL-1063, and AWM specifications.
Q: Can I use this wire in wet environments?A: Yes, this wire is designed to be used in both wet and dry locations, making it versatile for various electrical installations. It meets the requirements for applications that may be exposed to moisture.
Q: What are the key features of the Southwire 50 ft. 12 Black Solid CU THHN Wire?A: Key features include a nylon outer jacket for easy pulling and resistance to gasoline and oil, stranded uncoated copper conductors, and insulation made from high heat and moisture-resistant PVC. It is also rated for a maximum ampacity of 20 amps.
Q: What is the size and construction of this wire?A: The Southwire THHN Wire is 12 AWG with 19 stranded conductors. It has a cross-section area of 3.31 mm² and features a PVC insulation thickness of 0.380 mm. The nylon jacket adds an additional layer of protection and durability.
