Is this Window Latch Hinge Pivot compatible with my Tacoma or Tundra?

Yes, this Window Latch Hinge Pivot is designed specifically for the First Generation Tacoma (1995-2004) and Tundra (2000-2006) models, ensuring a perfect fit for your vehicle.

How do I install the Window Latch Hinge Pivot?

Installation is simple. Start by removing the latch with a Phillips screwdriver, then use a drift punch to press down and remove the pin. Reinstall the new pivot by pressing the pin back in place using channel locks. Lubrication is recommended for smoother operation.

What tools do I need for the installation of this product?

You will need channel locks or similar pliers, a Phillips screwdriver, a hammer, and a drift punch. Additionally, having some lubricant like lithium grease or WD-40 will help during installation.

Can I replace just the hinge pivot instead of the entire window lock assembly?

Yes, this product allows you to replace only the failed components, which is more cost-effective and easier than replacing the whole window lock assembly.

What material is the Window Latch Hinge Pivot made from?

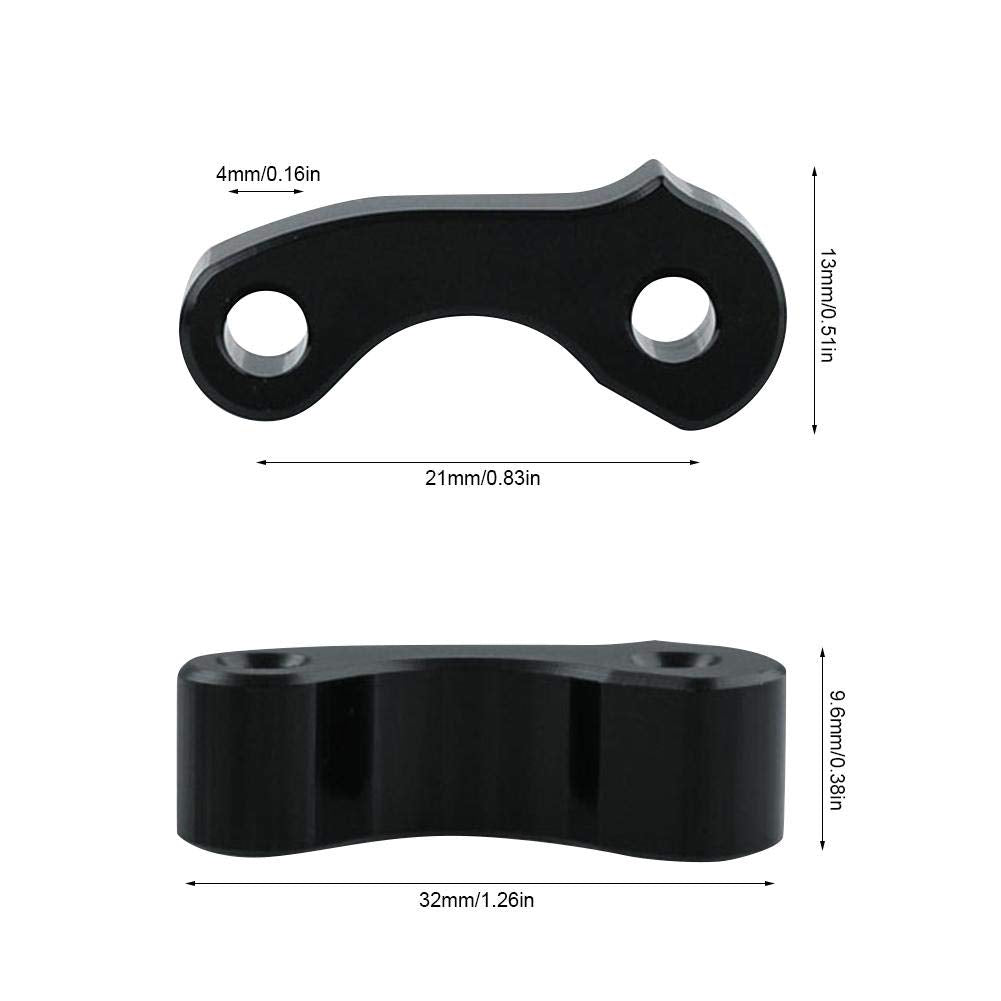

The Window Latch Hinge Pivot is made from CNC machined anodized aluminum, which is corrosion-resistant and offers high toughness, making it a durable alternative to the plastic parts.

Window Latch Hinge Pivot for First Gen Tacoma Tundra Rear Quarter Window 1995-2004 Tundra 2000-2006 Xtracab 2pcs(Black)

Window Latch Hinge Pivot for First Gen Tacoma Tundra Rear Quarter Window 1995-2004 Tundra 2000-2006 Xtracab 2pcs(Black)

$10.48
Regular price ~~$14.97~~

Wishlist

Vendor: DEF

Type: Body

Sku: WBCARB07F349ZTV

Available: Available

Shipping information

- No EU import duties.
- Ships within 3-5 business days. (USA)
- Ships with 8-12 business days. (International)

⚠️ California Proposition 65 Warning :
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

For more information, visit www.P65Warnings.ca.gov.

Guarantee safe checkout

Window Latch Hinge Pivot for First Gen Tacoma Tundra Rear Quarter Window 1995-2004 Tundra 2000-2006 Xtracab 2pcs(Black)

$10.48

Description

Fitment:Tacoma 1995-2004,Tundra 2000-2006.

Easy installation.

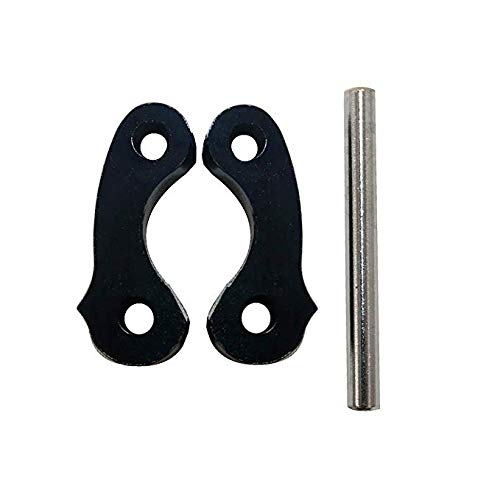

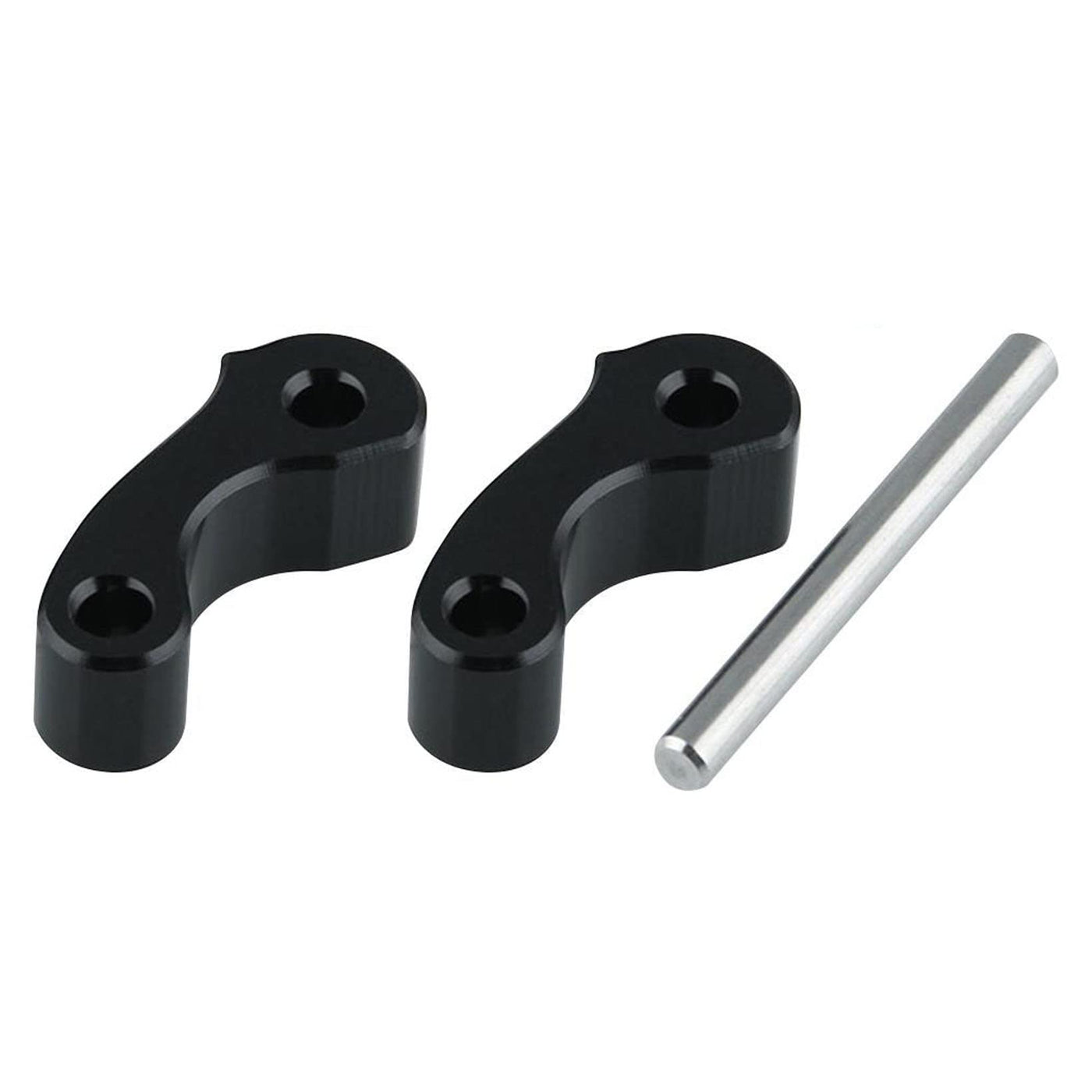

1.Simply tap out the two pins on the bracket with the included dowel pin and reinstall using the aluminum pivot.Can be firmly fixed.
2.This billet hinge pivot is a permanent fix for this common problem.
3.Allows to only replace the failed components with the kit, rather than replacing the whole window lock assembly.

NOTES:
1.You must use lubricant during install. Lithium grease or WD-40 works fine.
2.These are designed for a snug fit to prevent rattling, however the pins may prove to be TOO TIGHT in some situations.
3.If you find the pins too be too tight, simply drill the holes on the pivot out slightly.
4.We recommend starting with a #19 drill bit, and moving to a #18 if necessary.
5.You may also find the window does not close as tightly as before. This is generally due to the mount arm being bent slightly during pin removal. It is soft metal, and can be easily bent by hand.
6.If your window is loose, just give that arm a couple of tugs towards the inside of the truck, and the window should then close tightly.

Required tools:
Channel locks, or similar pliers Phillips screwdriver Hammer Approx. 5/32' drift punch (similar size old drill bit or allen wrench will work) Lubricant is recommended.

Installation Tips:
1.Remove the latch from the window using a phillips screwdriver.
2.Use a drift punch to press down the pin.
3. Remove pin using drift punch.
4.Use channel locks to press the pin back in place.
5.Reinstall your screw nut in window.
6.Use channel locks to press the other side of pin back in place.
